Remove/install instrument cluster - AR54.30-P-6015SX

MODEL 216.3, 221.0/1

Shown on model 221

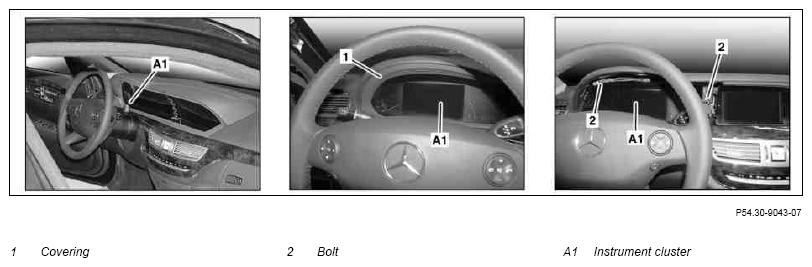

Fig 1: Identifying Instrument Cluster Remove/Install Components - Shown On Model 221

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Store basic data from instrument cluster (A1) temporarily in STAR DIAGNOSIS	When installing new instrument cluster (A1). Transfer the cached basic data to the new instrument cluster (A1).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
2	Move steering column back and down
3	Switch off ignition and withdraw transmitter key or Keyless Go start/stop button from the EIS [EZS] control unit	Keyless Go start/stop button only for vehicles with code (889) Keyless Go.
4	In working area, cover trim strip on instrument panel with clean rag
5	Remove cockpit switch group		AR54.25-P-1000SX
6	Unclip covering (1) on instrument cluster (A1)		Figure
7	Remove bolts (2), remove instrument cluster (A1) from instrument panel and disconnect electrical connector at rear
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
8	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
