| A0 |
Color code key |
32L |

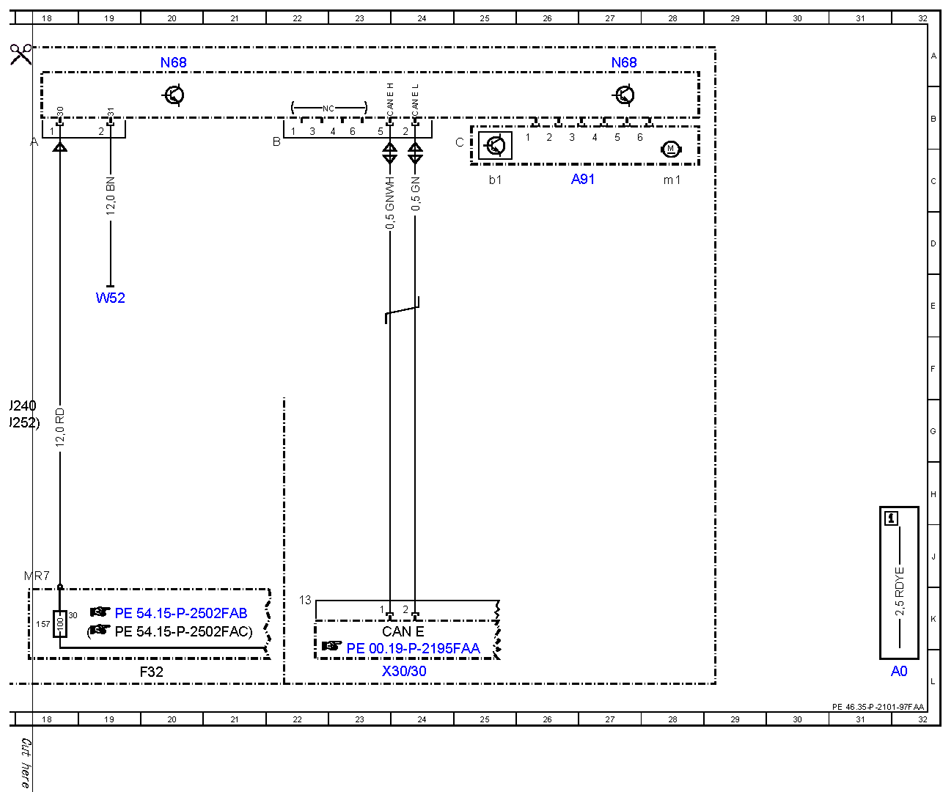

| A91 |
Electric power steering electromechanical controller unit |
26C |

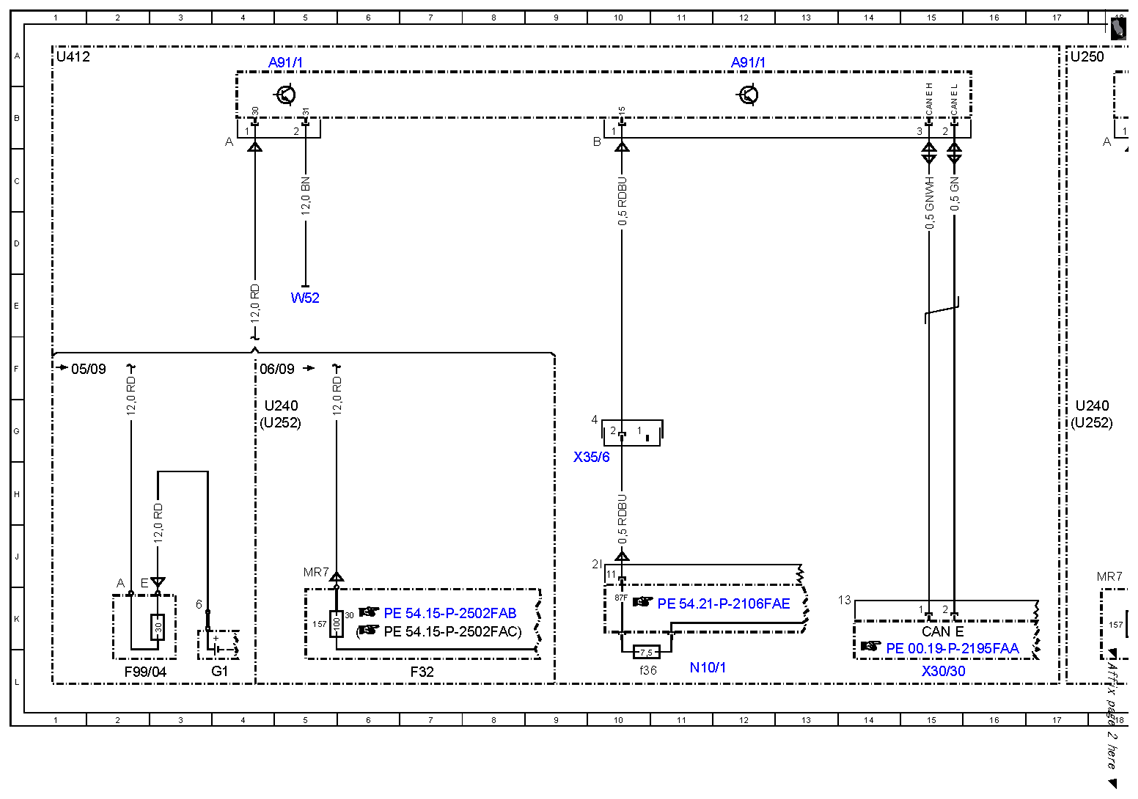

| A91/1 |
Electrohydraulic power steering |
5A |
| A91/1 |
Electrohydraulic power steering |
12A |
| A91b1 |
Electric power steering torque sensor |
25C |
| A91m1 |
Electric power steering actuator motor |
28C |
| CAN E |
Chassis CAN |
15K |
| CAN E |
Chassis CAN |
24K |
| F32 |
Front electrical prefuse box |
7L |
| F32 |
Front electrical prefuse box |
20L |
| F32f157 |
Prefuse 157 |
5K |
| F32f157 |
Prefuse 157 |
18K |
| F99/04 |
Electrohydraulic power steering fuse |
2L |
| G1 |
On-board electrical system battery |
4L |
| N10/1 |
Front SAM control unit with fuse and relay module |
11L |
| N10/1f36 |
Fuse 36 |
10L |
| N68 |
Electrical power steering control unit |
20A |
| N68 |
Electrical power steering control unit |
27A |
| U240 |
Valid for all except ECO start/stop function |
17G |
| U240 |
Valid for all except ECO start/stop function |
4G |
| U250 |
Valid for electric power steering |
17A |
| U252 |
Valid for ECO start/stop function |
17G |
| U252 |
Valid for ECO start/stop function |
4G |
| U412 |
Valid for electrohydraulic power steering |
1A |
| W52 |
Ground (right front longitudinal member) |
5E |
| W52 |
Ground (right front longitudinal member) |
19E |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
15L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
24L |
| X35/6 |
Instrument panel and module box electrical connector |
10H |
