| A0 |
Color code key |
80L |
| A6 |
Stationary heater unit |
62A |
| A9/7 |
Refrigerant compressor with magnetic clutch |
21L |
| A9/7 |
Refrigerant compressor with magnetic clutch |
18L |
| A9/7 |
Refrigerant compressor with magnetic clutch |
69L |
| B11/15 |
Radiator sensor for engine diagnosis |
51L |

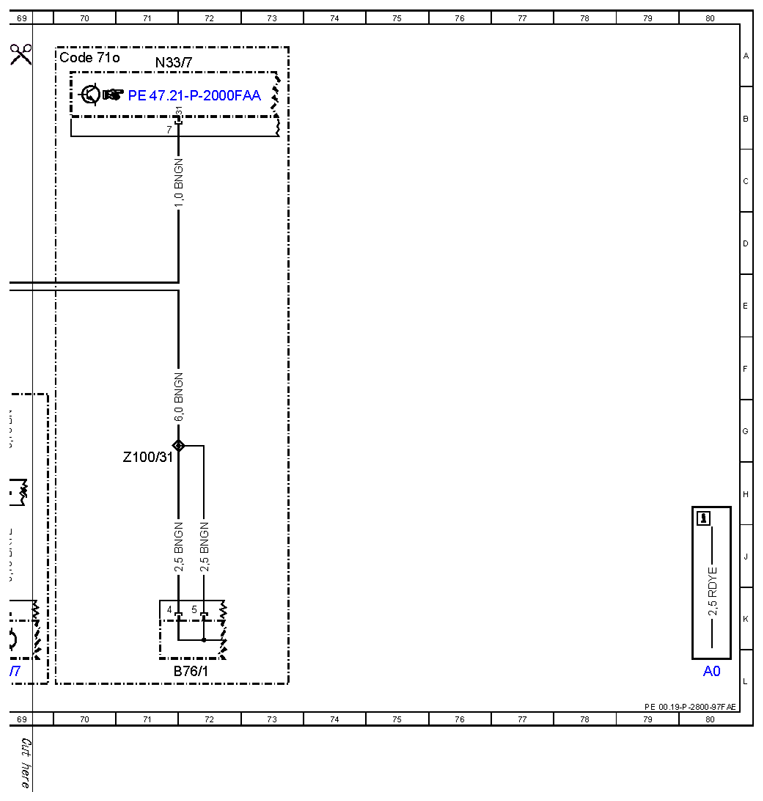

| B76/1 |
Condensation sensor for fuel filter with heating element |
72L |
| Code 228 |
Stationary heater |
60A |
| Code 427 |
7-speed automatic transmission |
11H |
| Code 427 |
7-speed automatic transmission |
42H |
| Code 494 |
USA version |
7G |
| Code 494 |
USA version |
9G |
| Code 494 |
USA version |
50G |
| Code 494 |
USA version |
62G |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
15B |
| Code 581 |
Comfort automatic air conditioning |
65A |
| Code 71o |
Heated fuel filter retrofit |
70A |
| Code 990 |
Mercedes-Benz AMG vehicles |
65G |
| Code B03 |
ECO start/stop function |
11H |
| Code B03 |
ECO start/stop function |
14G |
| Code B03 |
ECO start/stop function |
15B |
| Code B03 |
ECO start/stop function |
5A |
| Code B03 |
ECO start/stop function |
42H |
| Code B03 |
ECO start/stop function |
45G |
| Code B03 |
ECO start/stop function |
45A |
| E1 |
Left front lamp unit |
58L |
| E1 |
Left front lamp unit |
61L |
| E2 |
Right front lamp unit |
56L |
| E2 |
Right front lamp unit |
53L |

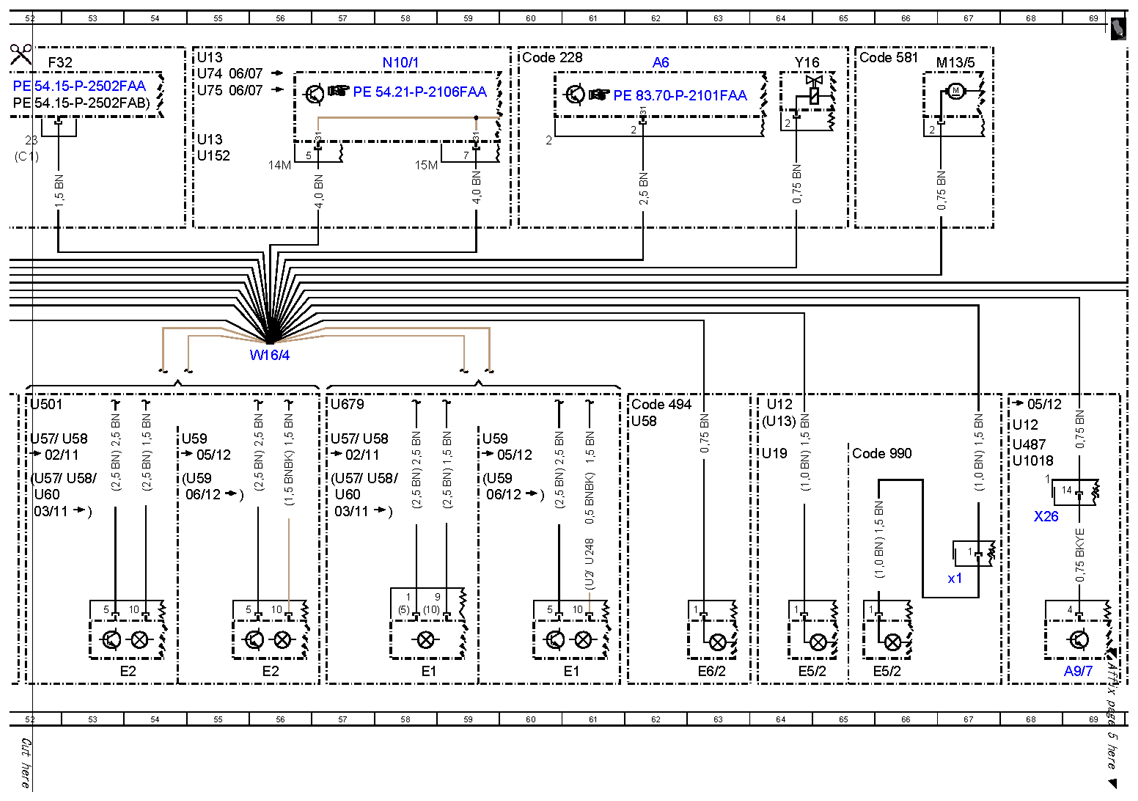

| E2/3 |
Right daytime running lamps headlamp |
49L |
| E5/2 |
Right fog lamp |
66L |
| E5/2 |
Right fog lamp |
64L |
| E5/2x1 |
Right front fog lamp electrical connector |
67J |
| E6/1 |
Left front side-marker lamp |
11L |
| E6/2 |
Right front side-marker lamp |
63L |

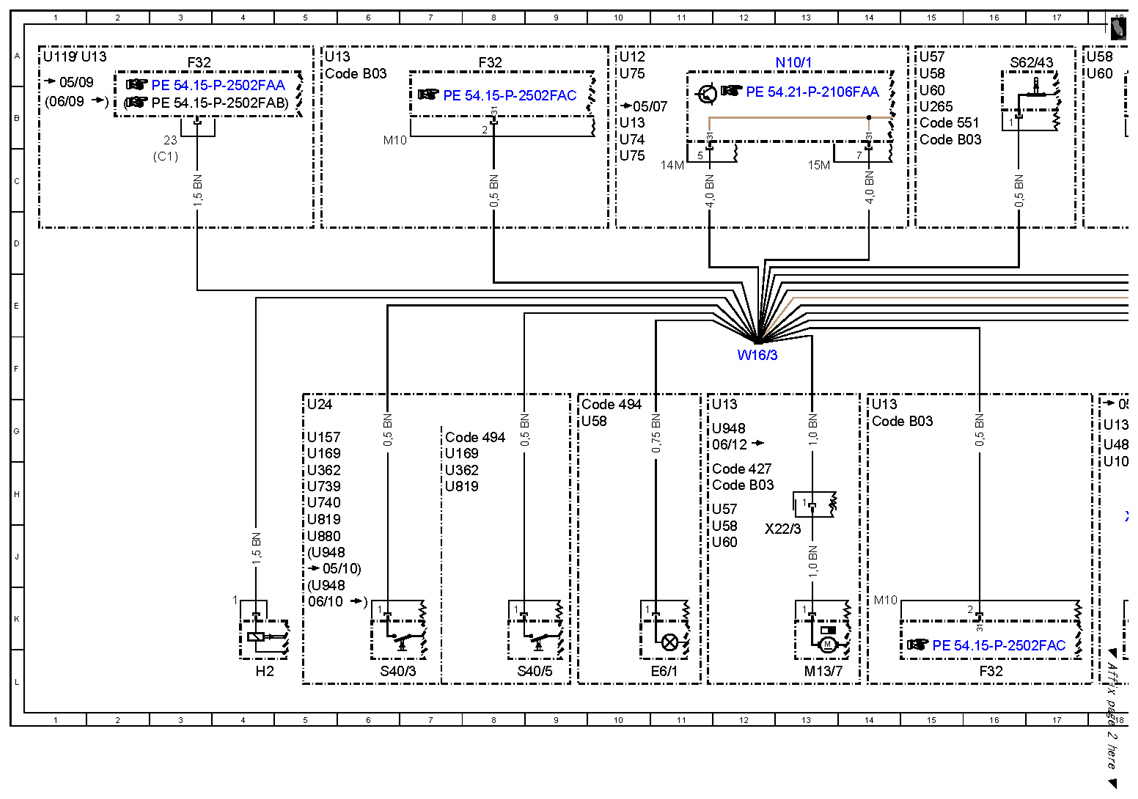

| F32 |
Front electrical prefuse box |
16L |
| F32 |
Front electrical prefuse box |
3A |
| F32 |
Front electrical prefuse box |
8A |
| F32 |
Front electrical prefuse box |
48A |
| F32 |
Front electrical prefuse box |
52A |
| H2 |
Left fanfare horn |
4L |
| H2/1 |
Right fanfare horn |
48L |
| M13/5 |
Coolant circulation pump |
67A |
| M13/7 |
Transmission oil cooling coolant circulation pump |
13L |
| M13/7 |
Transmission oil cooling coolant circulation pump |
44L |
| M33 |
Electric air pump |
23L |

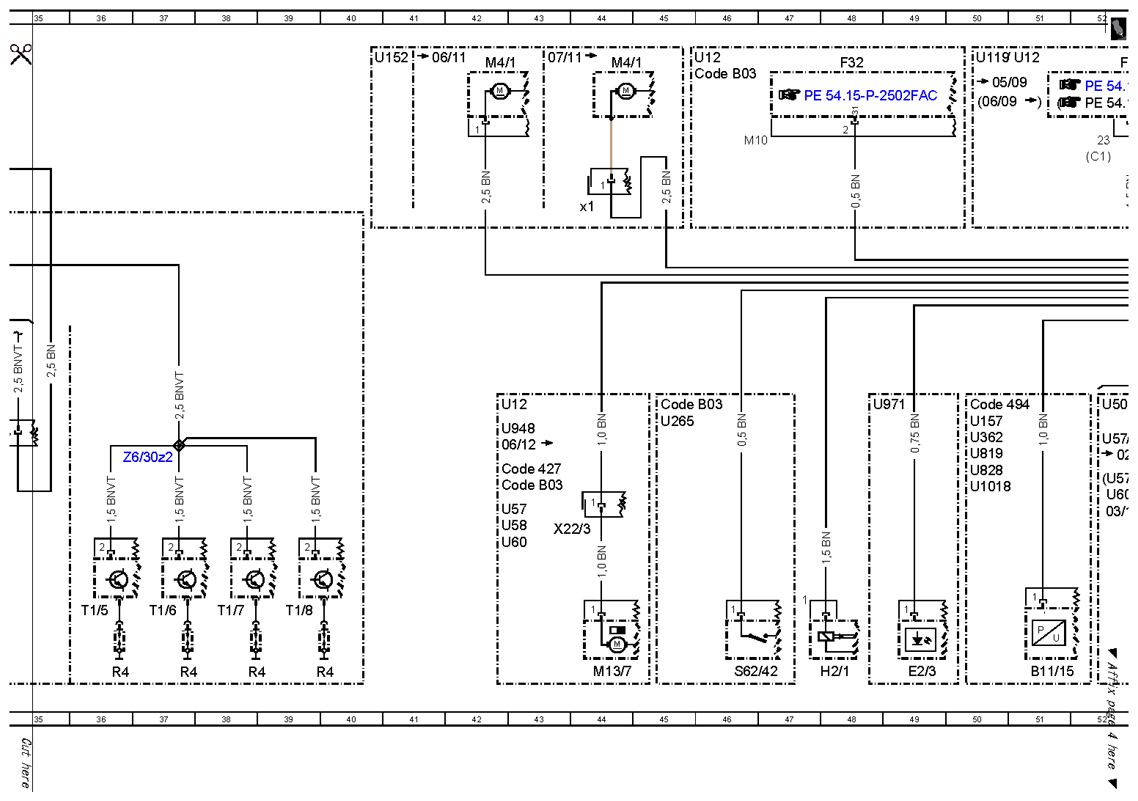

| M4/1 |
Oil cooler fan motor |
42A |
| M4/1 |
Oil cooler fan motor |
44A |
| M4/1x1 |
Oil cooler fan motor electrical connector |
44C |

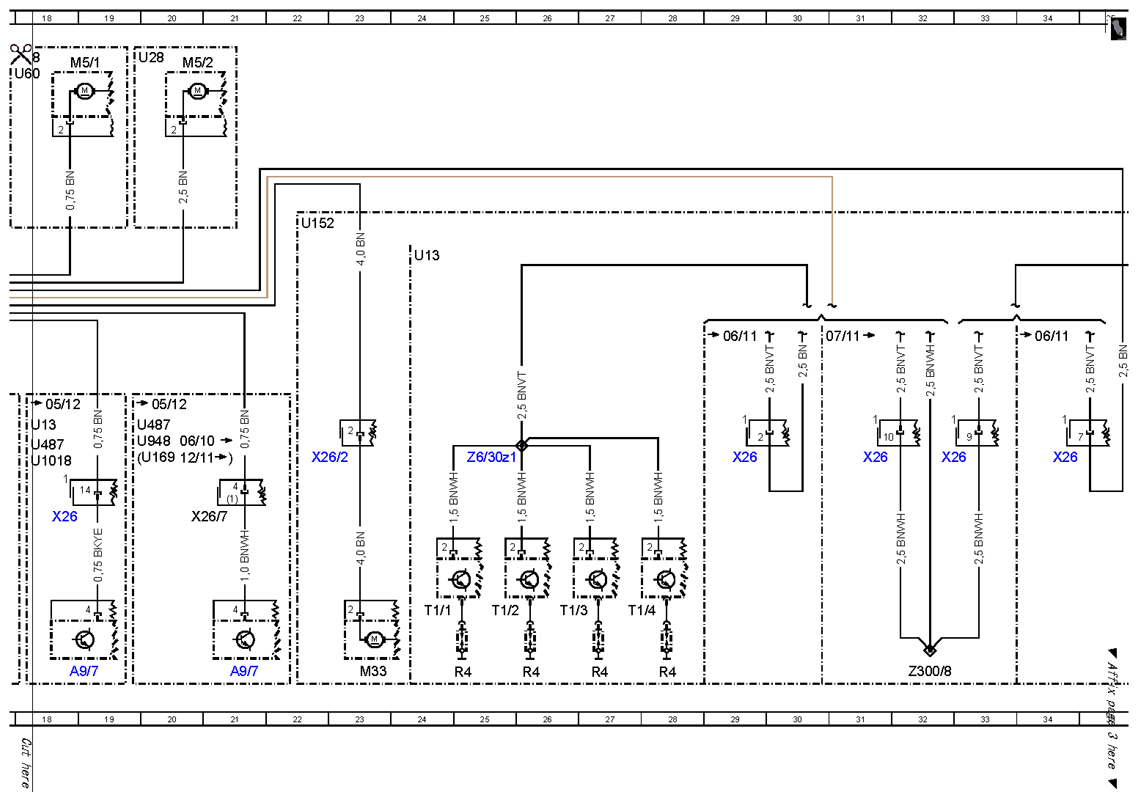

| M5/1 |
Windshield washer system pump |
18A |
| M5/2 |
Headlamp cleaning system pump |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
13A |
| N10/1 |
Front SAM control unit with fuse and relay module |
58A |
| R4 |
Spark plugs |
28L |
| R4 |
Spark plugs |
27L |
| R4 |
Spark plugs |
26L |
| R4 |
Spark plugs |
25L |
| R4 |
Spark plugs |
40L |
| R4 |
Spark plugs |
38L |
| R4 |
Spark plugs |
37L |
| R4 |
Spark plugs |
36L |
| S40/3 |
Clutch pedal switch |
6L |
| S40/5 |
Start enable clutch pedal switch |
9L |
| S62/42 |
Right engine hood contact switch |
46L |
| S62/43 |
Left engine hood contact switch |
16A |
| T1/1 |
Cylinder 1 ignition coil |
24K |
| T1/2 |
Cylinder 2 ignition coil |
25K |
| T1/3 |
Cylinder 3 ignition coil |
26K |
| T1/4 |
Cylinder 4 ignition coil |
27K |
| T1/5 |
Cylinder 5 ignition coil |
36K |
| T1/6 |
Cylinder 6 ignition coil |
37K |
| T1/7 |
Cylinder 7 ignition coil |
38K |
| T1/8 |
Cylinder 8 ignition coil |
39K |
| U1018 |
Valid for gasoline engine 276 |
18H |
| U1018 |
Valid for gasoline engine 276 |
50H |
| U1018 |
Valid for gasoline engine 276 |
68H |
| U119 |
Valid for rear battery |
1A |
| U119 |
Valid for rear battery |
50A |
| U12 |
Valid for left-hand drive vehicles |
10A |
| U12 |
Valid for left-hand drive vehicles |
42G |
| U12 |
Valid for left-hand drive vehicles |
64G |
| U12 |
Valid for left-hand drive vehicles |
68G |
| U12 |
Valid for left-hand drive vehicles |
45A |
| U12 |
Valid for left-hand drive vehicles |
51A |
| U13 |
Valid for right-hand drive vehicles |
11G |
| U13 |
Valid for right-hand drive vehicles |
14G |
| U13 |
Valid for right-hand drive vehicles |
18G |
| U13 |
Valid for right-hand drive vehicles |
1A |
| U13 |
Valid for right-hand drive vehicles |
5A |
| U13 |
Valid for right-hand drive vehicles |
10B |
| U13 |
Valid for right-hand drive vehicles |
24D |
| U13 |
Valid for right-hand drive vehicles |
64G |
| U13 |
Valid for right-hand drive vehicles |
55B |
| U13 |
Valid for right-hand drive vehicles |
55A |
| U152 |
Valid for gasoline engine 156 |
40A |
| U152 |
Valid for gasoline engine 156 |
22D |
| U152 |
Valid for gasoline engine 156 |
55C |
| U157 |
Valid for combustion engine 272 DE |
5G |
| U157 |
Valid for combustion engine 272 DE |
50G |
| U169 |
Valid for gasoline engine 271 DE |
5G |
| U169 |
Valid for gasoline engine 271 DE |
7G |
| U169 |
Valid for gasoline engine 271 DE |
20H |
| U19 |
Valid for standard equipment |
64G |
| U2 |
Valid for all except USA |
61J |
| U24 |
Valid for manual transmission |
5G |
| U248 |
Valid for headlamp range adjustment for halogen headlamps |
61J |
| U265 |
Not valid for pedestrian protection |
15B |
| U265 |
Not valid for pedestrian protection |
45G |
| U28 |
Valid for headlamp cleaning system |
19A |
| U362 |
Valid for gasoline engine 274 |
5H |
| U362 |
Valid for gasoline engine 274 |
7H |
| U362 |
Valid for gasoline engine 274 |
50G |
| U487 |
Valid for refrigerant compressor with magnetic clutch |
18G |
| U487 |
Valid for refrigerant compressor with magnetic clutch |
19G |
| U487 |
Valid for refrigerant compressor with magnetic clutch |
68G |
| U501 |
Valid for xenon headlamps |
52G |
| U57 |
Valid for model 204.2 |
11H |
| U57 |
Valid for model 204.2 |
15A |
| U57 |
Valid for model 204.2 |
42H |
| U57 |
Valid for model 204.2 |
52H |
| U57 |
Valid for model 204.2 |
52G |
| U57 |
Valid for model 204.2 |
57H |
| U57 |
Valid for model 204.2 |
57G |
| U58 |
Valid for model 204.0 |
11J |
| U58 |
Valid for model 204.0 |
9G |
| U58 |
Valid for model 204.0 |
15A |
| U58 |
Valid for model 204.0 |
17A |
| U58 |
Valid for model 204.0 |
42J |
| U58 |
Valid for model 204.0 |
53H |
| U58 |
Valid for model 204.0 |
53G |
| U58 |
Valid for model 204.0 |
57H |
| U58 |
Valid for model 204.0 |
57G |
| U58 |
Valid for model 204.0 |
62G |
| U59 |
Valid for model 204.9 |
54H |
| U59 |
Valid for model 204.9 |
54G |
| U59 |
Valid for model 204.9 |
59H |
| U59 |
Valid for model 204.9 |
59G |
| U60 |
Valid for model 204.3 |
11J |
| U60 |
Valid for model 204.3 |
15B |
| U60 |
Valid for model 204.3 |
17A |
| U60 |
Valid for model 204.3 |
52H |
| U60 |
Valid for model 204.3 |
42J |
| U60 |
Valid for model 204.3 |
57H |
| U679 |
Valid for version without xenon headlamps |
57G |
| U739 |
Valid for gasoline engine 271 continuous fuel injection system (electronic) |
5H |
| U74 |
Valid for diesel engines |
10B |
| U74 |
Valid for diesel engines |
55A |
| U740 |
Valid for diesel engine 646 |
5H |
| U75 |
Valid for gasoline engines |
10C |
| U75 |
Valid for gasoline engines |
10A |
| U75 |
Valid for gasoline engines |
55B |
| U819 |
Valid for gasoline engine 272 |
7H |
| U819 |
Valid for gasoline engine 272 |
5H |
| U819 |
Valid for gasoline engine 272 |
50G |
| U828 |
Valid for SULEV |
50H |
| U880 |
Valid for diesel engine 642 |
5J |
| U948 |
Valid for diesel engine 651 |
5J |
| U948 |
Valid for diesel engine 651 |
5K |
| U948 |
Valid for diesel engine 651 |
11G |
| U948 |
Valid for diesel engine 651 |
19G |
| U948 |
Valid for diesel engine 651 |
42G |
| U971 |
Valid for daytime running lamps |
48G |
| W16/3 |
Left major assembly compartment ground point |
12F |
| W16/4 |
Right wheelhouse ground point |
56F |
| X22/3 |
Transmission oil cooling electrical connector |
13J |
| X22/3 |
Transmission oil cooling electrical connector |
44J |
| X26 |
Interior and engine wiring harness electrical connector |
18H |
| X26 |
Interior and engine wiring harness electrical connector |
34H |
| X26 |
Interior and engine wiring harness electrical connector |
31H |
| X26 |
Interior and engine wiring harness electrical connector |
29H |
| X26 |
Interior and engine wiring harness electrical connector |
33H |
| X26 |
Interior and engine wiring harness electrical connector |
68H |
| X26/2 |
Engine wiring harness electrical connector |
23H |
| X26/7 |
Rear engine compartment electrical connector |
21H |
| Y16 |
Stationary heater switchover valve |
64A |
| Z100/31 |
Ground line connector sleeve for condensation sensor for fuel filter with heating element |
71G |
| Z300/8 |
Left major assembly compartment ground line connector sleeve (power ground) |
32L |
| Z6/30z1 |
ME-SFI [ME] diagnosis connector sleeve |
25G |
| Z6/30z2 |
ME-SFI [ME] diagnosis connector sleeve |
37G |
