Relay assignment of fuse and relay box in trunk - GF54.15-P-1257-04CW

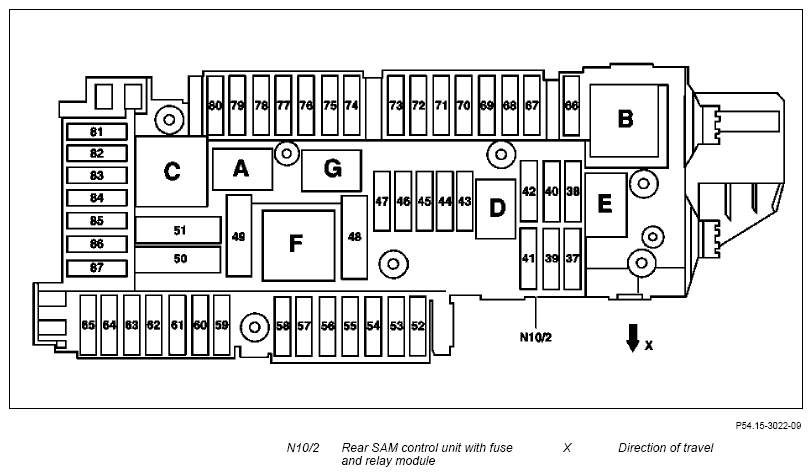

Fig 1: Fuse And Relay Box In Trunk Assignment

Courtesy of MERCEDES-BENZ USA

Fuse and relay box in luggage compartment

Socket	Designation
A	Terminal 15 relay (N10/2kA)
B	Terminal 15R relay (1) (N10/2kB)
C	Heated rear window relay (N10/2kC)
D	Valid for diesel engine:  Fuel pump relay (N10/2kD)
E	Valid for model 204.2:  (N10/2kETailgate windshield wiper relay)
F	Valid without code (241) memory switch for left electrically adjustable driver seat and without code (242) Electrically adjustable front passenger seat with memory and without code (275) Memory package (driver seat, steering column, mirrors):  Seat adjustment relay (N10/2kF)
G	Circuit 15R relay (2) (N10/2kG)
