Electrical Function Diagram For Mobile Phone On And Off Characteristic - PE82.70-U-2054-99FAB

Code:	Designation:	Position:
1	Circuit 15, status ON	4 E
2	Instrument cluster, message	8 E
3	Audio/COMAND display, message	3 C
4	Telephone, signal	8 C
4	Telephone, signal	9 A
5	Bluetooth, signal	4 C
5	Bluetooth, signal	7 B
6	Voice input, signal	3 G
A1	Instrument cluster	9 D
A2/91	Bluetooth antenna	4 B
A28/11	Multifunction antenna	10 B
A34/15	Mobile phone holder	8 B
A40/3	COMAND control unit	2 E
A40/8	Audio/COMAND display	2 A
A8/1	Transmitter key	6 K
B25/7	Voice control system microphone	1 H
CAN B	Interior CAN	6 E
N73	Electronic ignition switch control unit	5 J

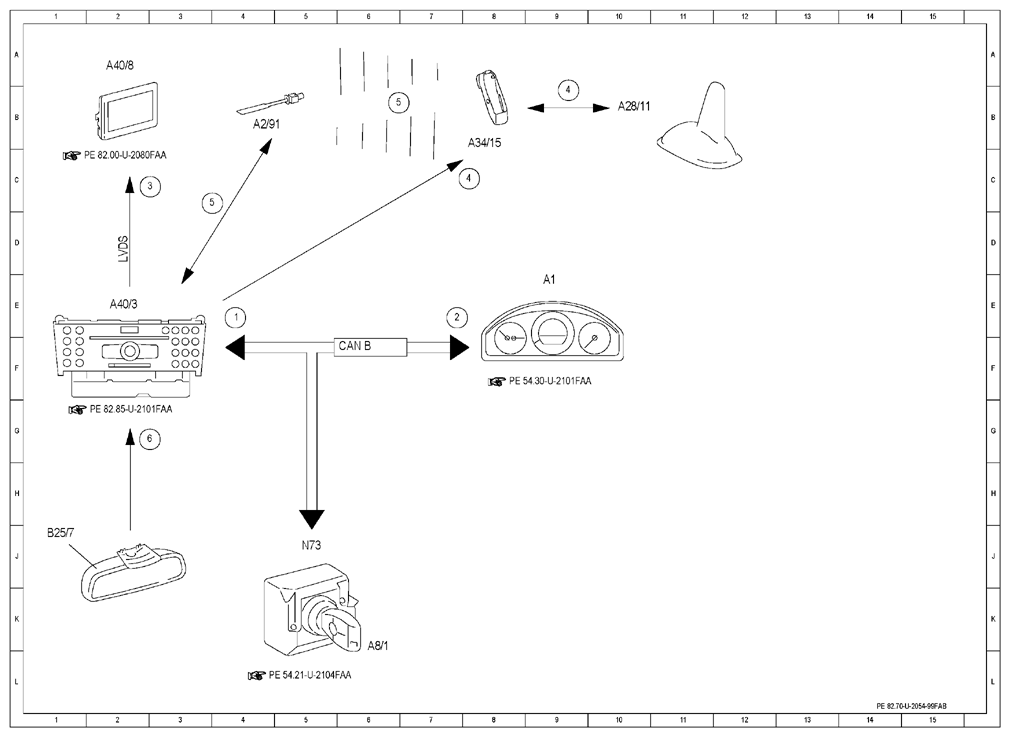

Fig 1: Mobile Phone On And Off Characteristic Electrical Function Diagram

Courtesy of MERCEDES-BENZ USA
