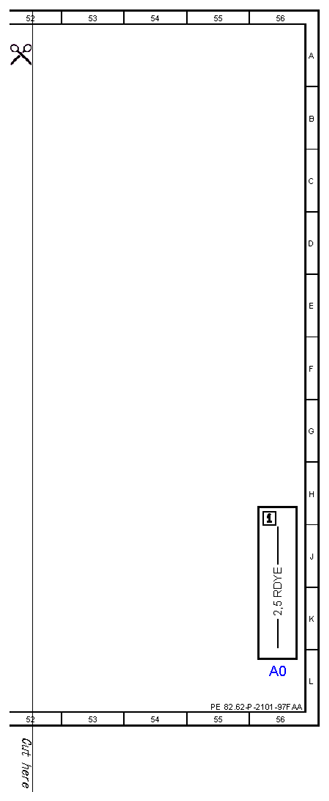

| A0 |
Color code key |
56L |
| B25/6 |
Sound system microphone |
47L |
| B25/6x1 |
Sound system microphone electrical connector |
46J |
| Code 359 |
TELEAID emergency call system |
37F |
| H4/1 |
Left front door speaker |
22L |
| H4/1h1 |
Left front door tweeter |
22L |
| H4/1h2 |
Left front door bass speaker |
21L |
| H4/2 |
Right front door speaker |
24L |
| H4/27 |
Center instrument panel speaker |
36L |
| H4/29 |
Bass speaker |
15L |
| H4/29 |
Bass speaker |
19L |
| H4/29x1 |
Bass speaker electrical connector |
17J |
| H4/2h1 |
Right front door tweeter |
25L |
| H4/2h2 |
Right front door bass speaker |
24L |
| H4/3 |
Left rear door speaker |
28L |
| H4/35 |
Left rear tweeter |
33L |
| H4/36 |
Right rear tweeter |
31L |
| H4/38 |
Rear bass speaker |
11L |
| H4/38x1 |
Rear bass speaker electrical connector |
11J |
| H4/4 |
Right rear door speaker |
27L |
| H4/54 |
Left rear surround speaker |
35L |
| H4/57 |
Right rear surround speaker |
13L |
| H4/57 |
Right rear surround speaker |
17L |
| H4/66 |
Left rear bass speaker |
32L |
| H4/67 |
Right rear bass speaker |
30L |
| MOST |
Media Oriented System Transport |
45K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2f67 |
Fuse 67 |
2L |
| N10/2f69 |
Fuse 69 |
5L |
| N123/4 |
Emergency call system control unit |
40L |
| N40/3 |
Sound system amplifier control unit |
4A |
| N40/3 |
Sound system amplifier control unit |
12A |
| N40/3 |
Sound system amplifier control unit |
20A |
| N40/3 |
Sound system amplifier control unit |
28A |
| N40/3 |
Sound system amplifier control unit |
36A |
| N40/3 |
Sound system amplifier control unit |
44A |
| N40/9 |
Rear bass speaker amplifier |
8L |
| U57 |
Valid for model 204.2 |
13G |
| U57 |
Valid for model 204.2 |
14G |
| U57 |
Valid for model 204.2 |
2C |
| U57 |
Valid for model 204.2 |
26E |
| U58 |
Valid for model 204.0 |
17F |
| U58 |
Valid for model 204.0 |
2C |
| U58 |
Valid for model 204.0 |
26E |
| U59 |
Valid for model 204.9 |
6F |
| U59 |
Valid for model 204.9 |
13G |
| U59 |
Valid for model 204.9 |
2D |
| U59 |
Valid for model 204.9 |
26E |
| U60 |
Valid for model 204.3 |
17F |
| U60 |
Valid for model 204.3 |
2C |
| U60 |
Valid for model 204.3 |
29E |
| W18/3 |
Left front seat crossmember ground point 2 |
3E |
| W6/1 |
Left taillamp trunk ground point |
3F |
| W7/1 |
Right taillamp trunk ground point |
7H |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
36H |
| X35/1 |
Left front door electrical connector |
20H |
| X35/2 |
Right front door electrical connector |
23H |
| X35/3 |
Left rear door electrical connector |
28H |
| X35/4 |
Right rear door electrical connector |
26H |
| X58/10 |
Sound system microphone electrical connector |
46E |
| Z20/26 |
Connector sleeve not stripped, placed inside insulating tubing |
48H |
| Z35/10 |
MOST wake-up signal connector sleeve |
43E |
