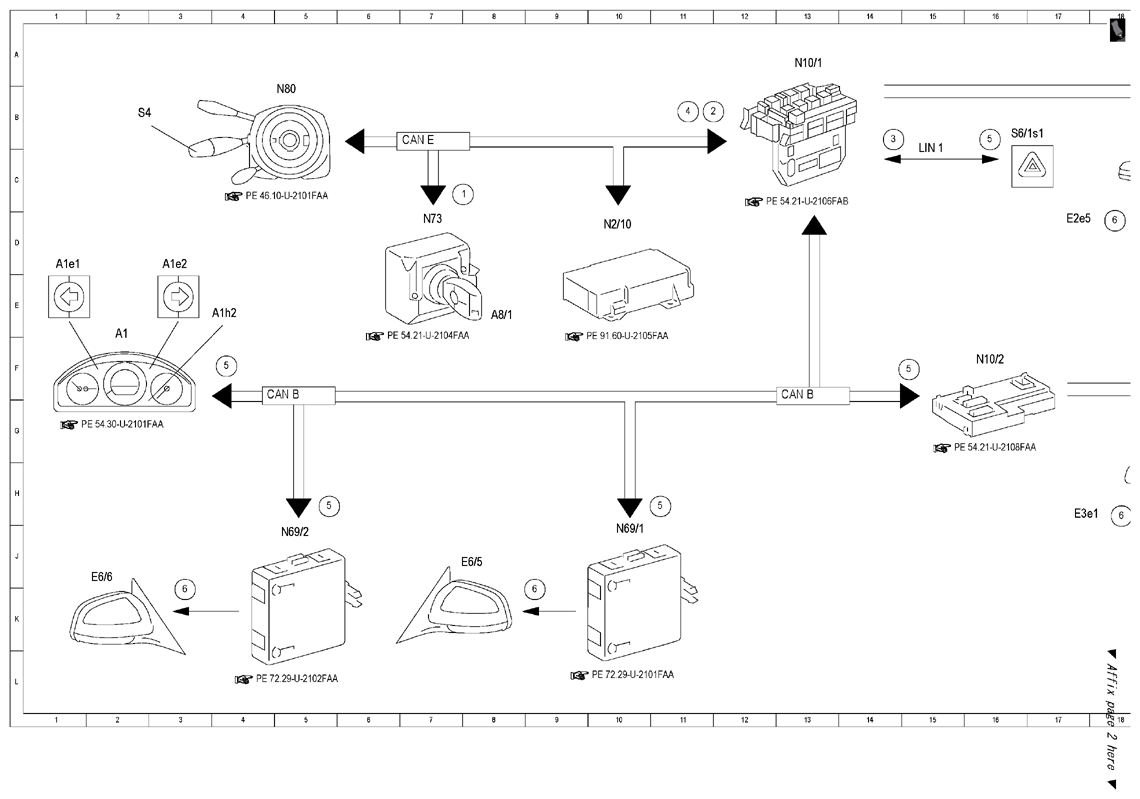

| 1 |
Circuit 15, status |
8 C |
| 2 |
Turn signaling, request |
12 B |
| 3 |
Hazard warning flasher, request |
15 B |
| 4 |
Crash flashing, request |
11 B |
| 5 |
Flasher frequency, signal |
4 F |
| 5 |
Flasher frequency, signal |
6 H |
| 5 |
Flasher frequency, signal |
11 H |
| 5 |
Flasher frequency, signal |
15 F |
| 5 |
Flasher frequency, signal |
16 B |
| 6 |
Turn signal lamp, actuation |
3 J |
| 6 |
Turn signal lamp, actuation |
9 J |
| 6 |
Turn signal lamp, actuation |
18 C |
| 6 |
Turn signal lamp, actuation |
18 H |
| 6 |
Turn signal lamp, actuation |
22 C |
| 6 |
Turn signal lamp, actuation |
22 H |
| A1 |
Instrument cluster |
2 E |
| A1e1 |
Left turn signal indicator light |
1 D |
| A1e2 |
Right turn signal indicator light |
3 D |
| A1h2 |
Turn signal light function check, acoustic |
4 E |
| A8/1 |
Transmitter key |
8 E |
| CAN B |
Interior CAN |
5 F |
| CAN B |
Interior CAN |
13 F |
| CAN E |
Chassis CAN |
7 B |

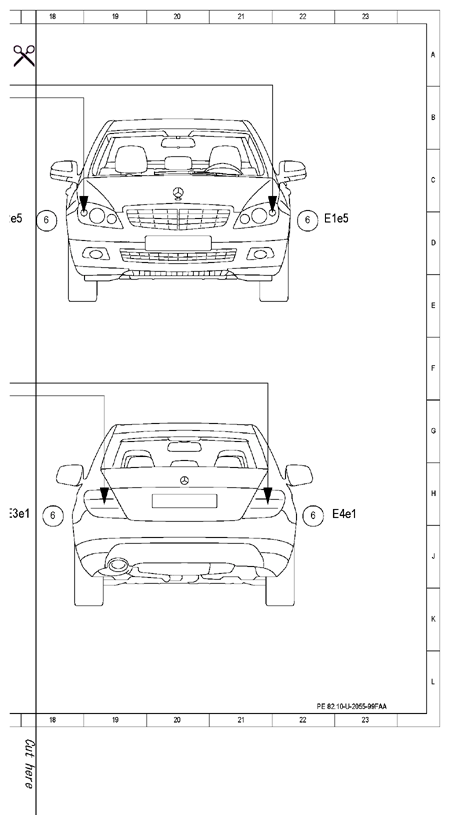

| E1e5 |
Left front turn signal lamp |
23 C |
| E2e5 |
Right front turn signal lamp |
17 C |
| E3e1 |
Left rear turn signal lamp |
17 H |
| E4e1 |
Right rear turn signal lamp |
23 H |
| E6/5 |
Left exterior mirror turn signal lamp |
8 J |
| E6/6 |
Right exterior mirror turn signal lamp |
2 J |
| LIN 1 |
Instrument panel LIN |
15 B |
| N10/1 |
Front SAM control module with fuse and relay module |
13 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
16 F |
| N2/10 |
Supplemental restraint system control unit |
10 D |
| N69/1 |
Left front door control unit |
10 H |
| N69/2 |
Right front door control unit |
5 H |
| N73 |
Electronic ignition switch control unit |
7 C |
| N80 |
Steering column module control unit |
5 A |
| S4 |
Combination switch |
3 B |
| S6/1s1 |
Hazard warning flasher switch |
16 B |
