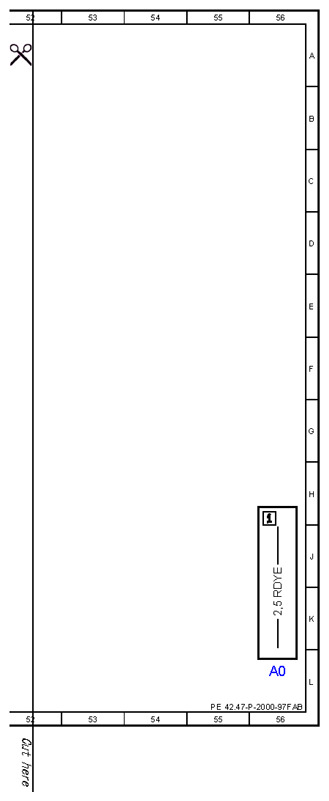

| A0 |
Color code key |
56L |

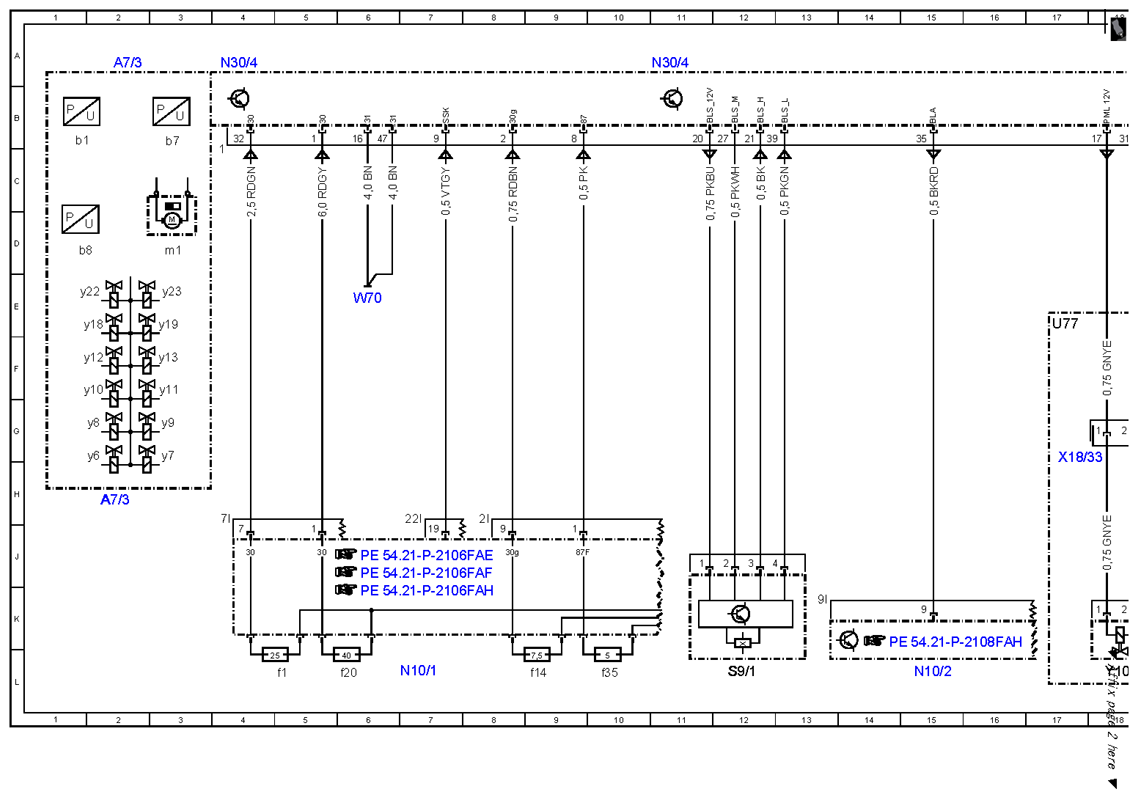

| A7/3 |
Traction system hydraulic unit |
2H |
| A7/3 |
Traction system hydraulic unit |
2A |
| A7/3b1 |
Front axle brake pressure sensor |
1B |
| A7/3b7 |
Front pressure sensor |
3B |
| A7/3b8 |
Rear pressure sensor |
1D |
| A7/3m1 |
High pressure and return pump |
3D |
| A7/3y10 |
Left rear pressure regulator valve (pressure hold) |
2F |
| A7/3y11 |
Left rear pressure regulator valve (pressure release) |
3F |
| A7/3y12 |
Right rear pressure regulator valve (pressure hold) |
2F |
| A7/3y13 |
Right rear pressure regulator valve (pressure release) |
3F |
| A7/3y18 |
Front axle switchover valve |
2E |
| A7/3y19 |
Rear axle switchover valve |
3E |
| A7/3y22 |
Front axle intake ball valve |
1E |
| A7/3y23 |
Rear axle intake ball valve |
3E |
| A7/3y6 |
Left front pressure regulator valve (pressure hold) |
2G |
| A7/3y7 |
Left front pressure regulator valve (pressure release) |
3G |
| A7/3y8 |
Right front pressure regulator valve (pressure hold) |
2G |
| A7/3y9 |
Right front pressure regulator valve (pressure release) |
3G |

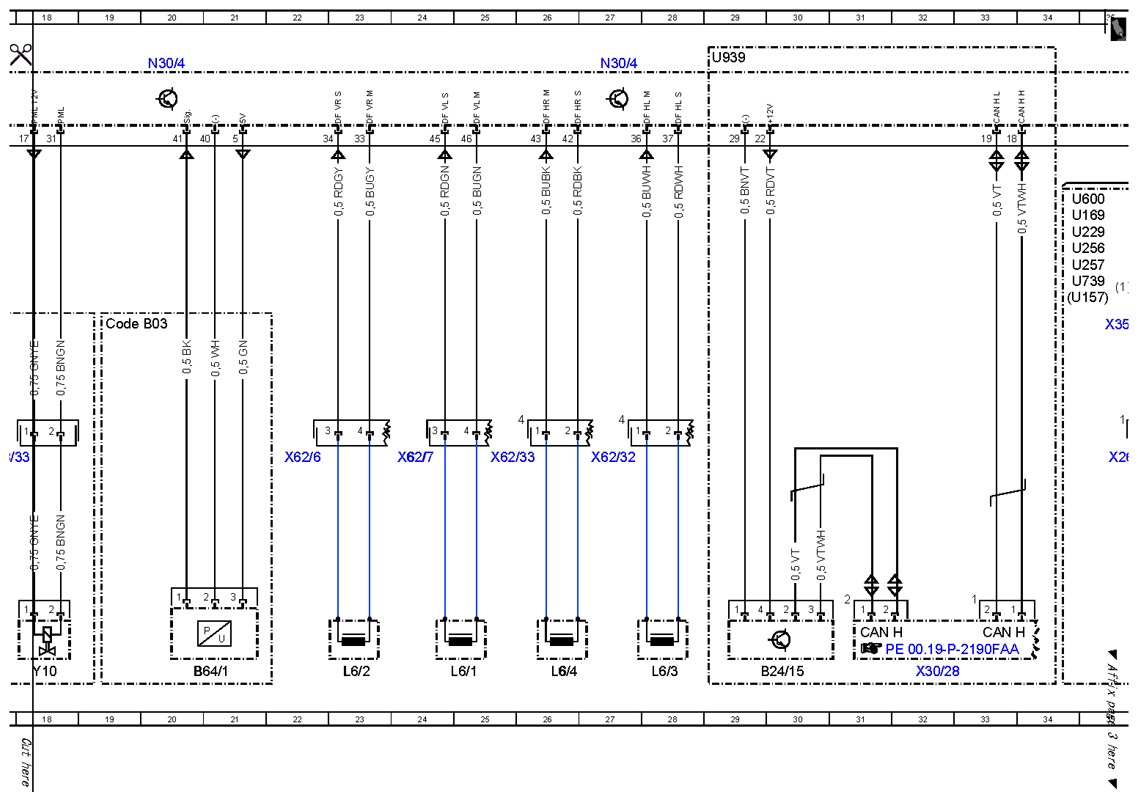

| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
30L |
| B64/1 |
Brake vacuum sensor |
20L |
| CAN E |
Chassis CAN |
46K |
| CAN H |
Vehicle dynamics CAN |
31K |
| CAN H |
Vehicle dynamics CAN |
33K |
| Code B03 |
ECO start/stop function |
19E |
| L6/1 |
Left front axle rpm sensor |
25L |
| L6/2 |
Right front axle rpm sensor |
23L |
| L6/3 |
Left rear axle rpm sensor |
28L |
| L6/4 |
Right rear axle rpm sensor |
26L |
| N10/1 |
Front SAM control unit with fuse and relay module |
7L |
| N10/1f1 |
Fuse 1 |
5L |
| N10/1f14 |
Fuse 14 |
9L |
| N10/1f20 |
Fuse 20 |
6L |
| N10/1f35 |
Fuse 35 |
10L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
15L |
| N30/4 |
Electronic Stability Program control unit |
4A |
| N30/4 |
Electronic Stability Program control unit |
11A |
| N30/4 |
Electronic Stability Program control unit |
20A |
| N30/4 |
Electronic Stability Program control unit |
27A |
| N30/4 |
Electronic Stability Program control unit |
36A |
| N30/4 |
Electronic Stability Program control unit |
44A |
| S9/1 |
Stop lamp switch |
12L |

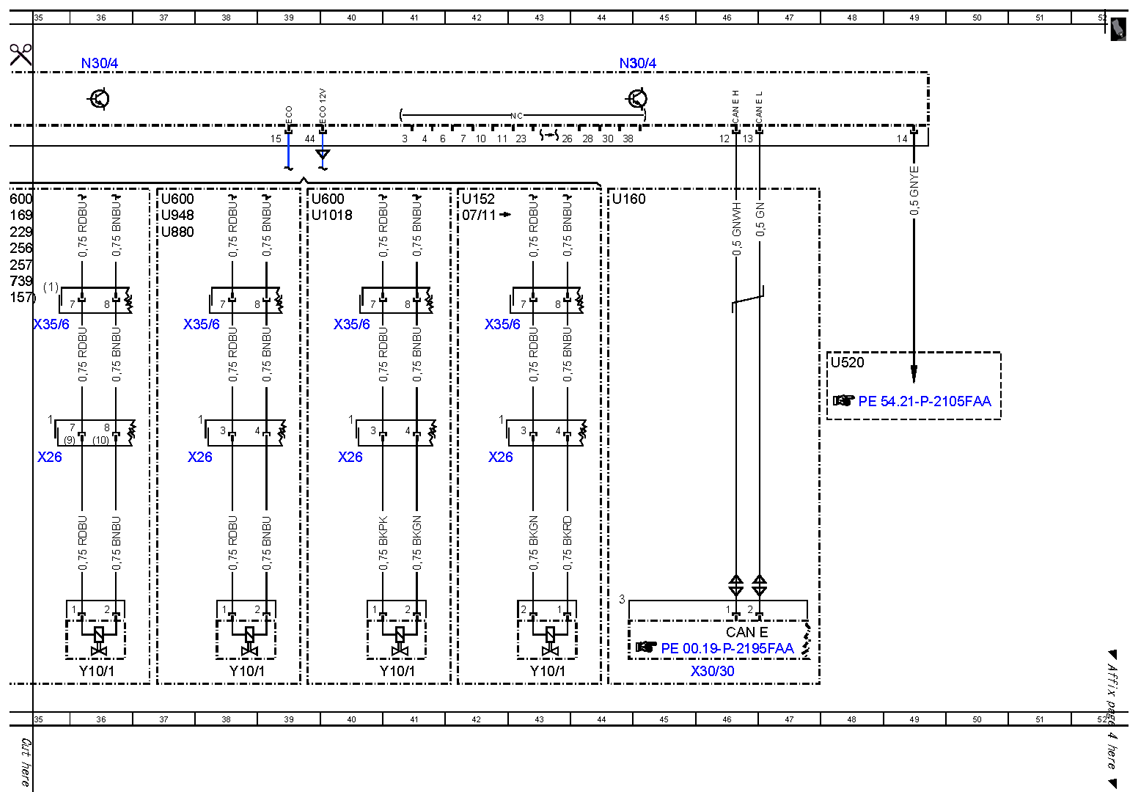

| U1018 |
Valid for gasoline engine 276 |
39D |
| U152 |
Valid for gasoline engine 156 |
42C |
| U157 |
Valid for combustion engine 272 DE |
34E |
| U160 |
Valid for ESP without adaptive damping system |
44C |
| U169 |
Valid for gasoline engine 271 DE |
34D |
| U229 |
Valid for model designation 204.006/044/045/047/065/245/247 |
34D |
| U256 |
Valid for model designation 204.052/054/056/252/254/256 as of 1.9.08 |
34D |
| U257 |
Valid for model designation 204.041/046/241/246 as of 1.9.08 |
34D |
| U520 |
Valid for taxi |
48F |
| U600 |
Valid for power steering pump |
39C |
| U600 |
Valid for power steering pump |
34C |
| U600 |
Valid for power steering pump |
37C |
| U739 |
Valid for gasoline engine 271 continuous fuel injection system (electronic) |
34E |
| U77 |
Valid for speed-sensitive power steering |
17E |
| U880 |
Valid for diesel engine 642 |
37D |
| U939 |
Valid for ESP® Premium |
29A |
| U948 |
Valid for diesel engine 651 |
37D |
| W70 |
Electronic Stability Program ground point |
6E |
| X18/33 |
Speed-sensitive power steering electrical connector |
17H |
| X26 |
Interior and engine wiring harness electrical connector |
40H |
| X26 |
Interior and engine wiring harness electrical connector |
35H |
| X26 |
Interior and engine wiring harness electrical connector |
38H |
| X26 |
Interior and engine wiring harness electrical connector |
42H |
| X30/28 |
Vehicle dynamics CAN voltage distributor electrical connector |
32L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
46L |
| X35/6 |
Instrument panel and module box electrical connector |
40E |
| X35/6 |
Instrument panel and module box electrical connector |
35E |
| X35/6 |
Instrument panel and module box electrical connector |
38E |
| X35/6 |
Instrument panel and module box electrical connector |
42E |
| X62/32 |
Rear axle electrical connector, left distributor |
27H |
| X62/33 |
Rear axle electrical connector, right distributor |
25H |
| X62/6 |
Front axle electrical connector, right distributor |
22H |
| X62/7 |
Front axle electrical connector, left distributor |
24H |
| Y10 |
Speed-sensitive power steering solenoid valve |
18L |
| Y10/1 |
Power steering pump quantity control valve |
36L |
| Y10/1 |
Power steering pump quantity control valve |
38L |
| Y10/1 |
Power steering pump quantity control valve |
43L |
| Y10/1 |
Power steering pump quantity control valve |
41L |
