Electrical function schematic for roller sun blind - PE68.50-P-2052-97FAB

Code:	Designation:	Position:
1	Circuit 15, status	5F
1	Circuit 15, status	12F
2	Rear window roller sun blind, request	4E
2	Rear window roller sun blind, request	14H
2	Rear window roller sun blind, request	14D
CAN B	Interior CAN	6G
CAN B	Interior CAN	11G
CAN B	Interior CAN	12J
CAN B	Interior CAN	4J
LIN 1	Instrument panel LIN	3D
M24	Rear window roller sun blind motor	14C
N10/1	Front SAM control unit with fuse and relay module	3F
N10/2	Rear SAM control unit with fuse and relay module	13F
N72/1	Upper control panel control unit	3B
N73	Electronic ignition switch control unit	9F

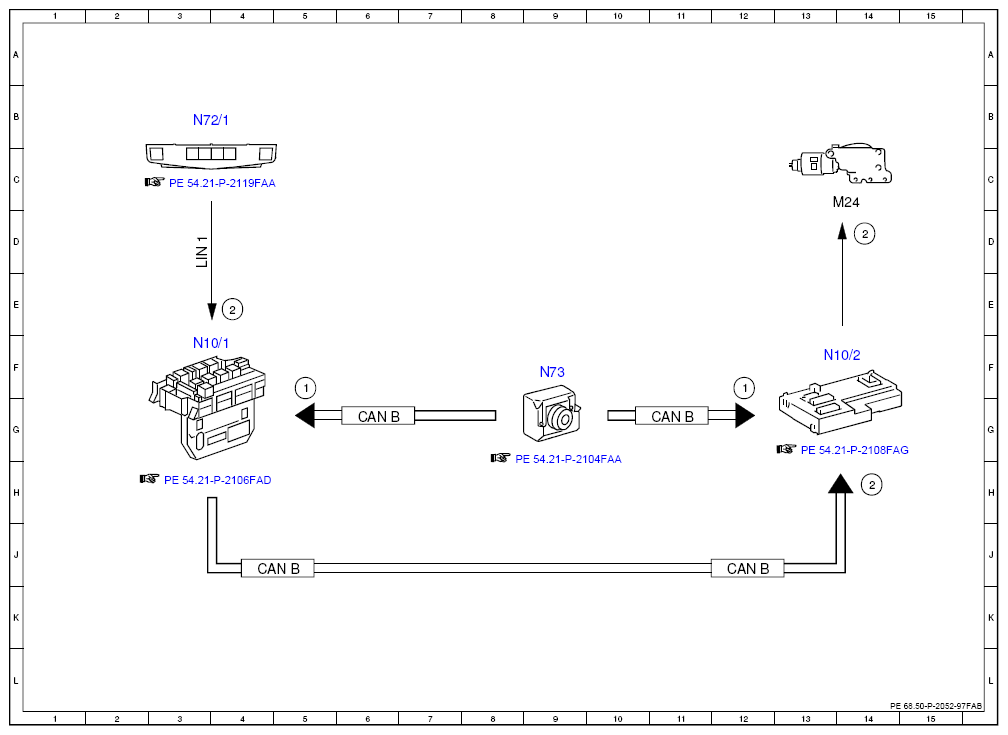

Fig 1: Roller Sun Blind Electrical Function Schematic

Courtesy of MERCEDES-BENZ USA
