Electrical function diagram for kickdown function - PE27.10-U-2050-99FAB

Code:	Designation:	Position:
1	Accelerator pedal sensor, signal	5 D
1	Accelerator pedal sensor, signal	5 H
B37	Accelerator pedal sensor	4 C
CAN C	Drive train CAN	4 G
N3/10	ME-SFI [ME] control module	4 D
Y3/8n4	Fully integrated transmission control control unit	4 J

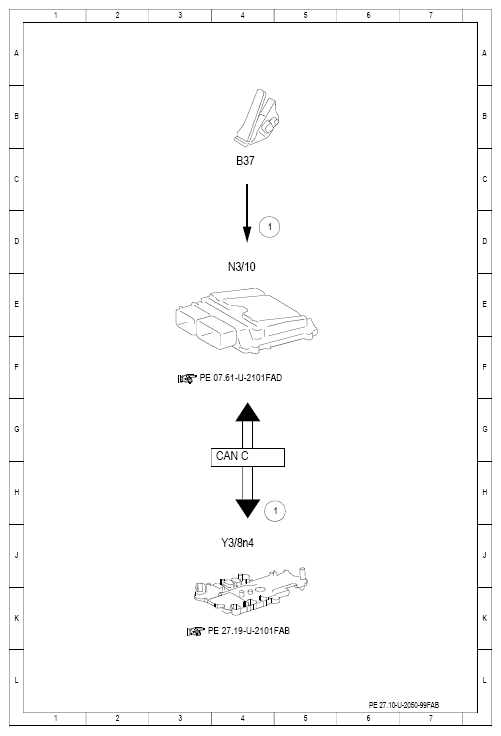

Fig 1: Kickdown Electrical Function Diagram

Courtesy of MERCEDES-BENZ USA
