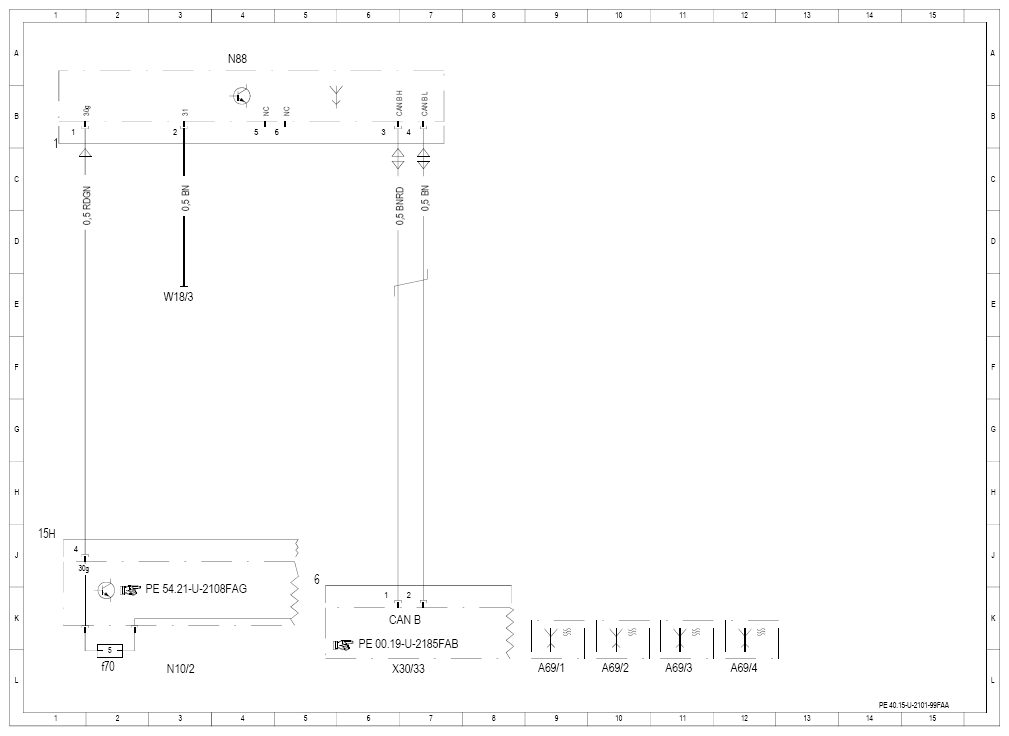

Wiring diagram tire pressure control unit - PE40.15-U-2101-99FAA
| Code: | Designation: | Position: |
|---|---|---|
| A69/1 | Left front tire pressure sensor | 9 L |
| A69/2 | Right front tire pressure sensor | 10 L |
| A69/3 | Left rear tire pressure sensor | 11 L |
| A69/4 | Right rear tire pressure sensor | 12 L |
| CAN B | Interior CAN | 7 K |
| N10/2 | Rear SAM control module with fuse and relay module | 3 L |
| N10/2f70 | Fuse 70 | 2 L |
| N88 | Tire pressure monitor control unit | 4 A |
| W18/3 | Left front seat crossmember ground point 2 | 3 E |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 7 L |
