| A0 |
Color code key |
32L |
| A69/1 |
Left front tire pressure sensor |
9L |
| A69/1 |
Left front tire pressure sensor |
22L |
| A69/2 |
Right front tire pressure sensor |
10L |
| A69/2 |
Right front tire pressure sensor |
23L |
| A69/3 |
Left rear tire pressure sensor |
11L |
| A69/3 |
Left rear tire pressure sensor |
24L |
| A69/4 |
Right rear tire pressure sensor |
12L |
| A69/4 |
Right rear tire pressure sensor |
25L |
| CAN B |
Interior CAN |
7K |
| CAN E |
Chassis CAN |
19K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
16L |
| N10/2f70 |
Fuse 70 |
2L |
| N10/2f70 |
Fuse 70 |
15L |

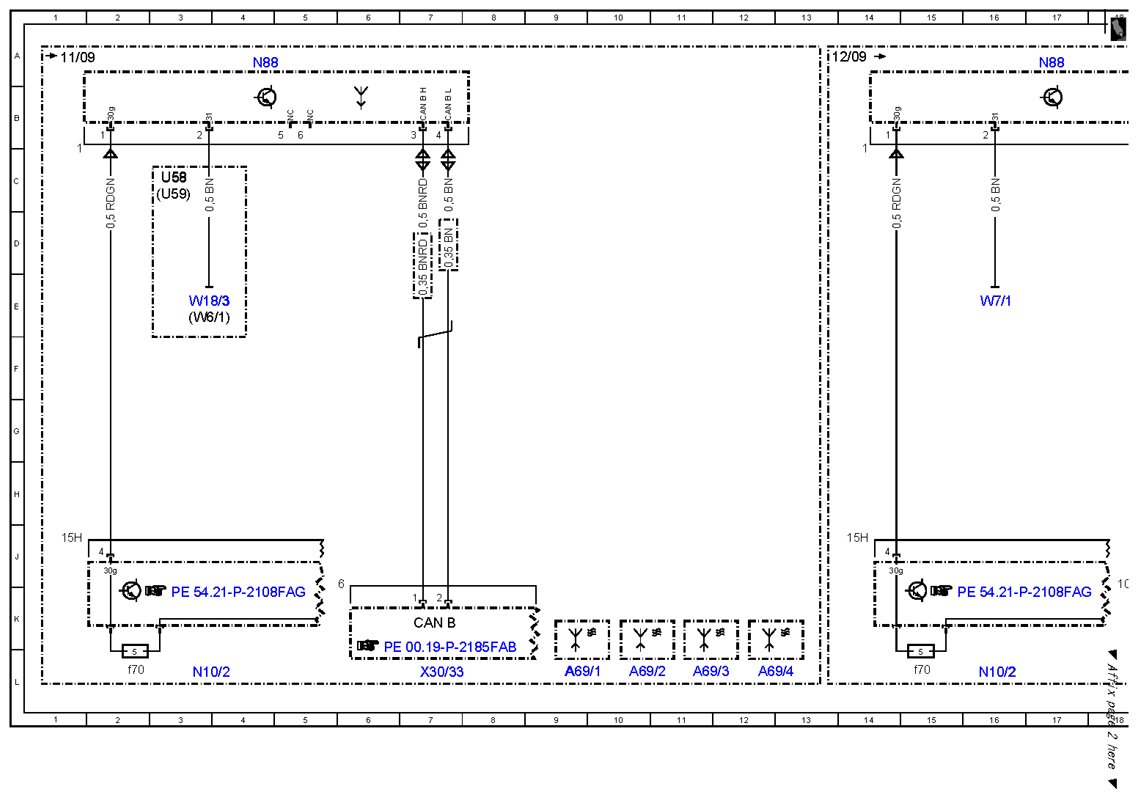

| N88 |
Tire pressure monitor control unit |
4A |
| N88 |
Tire pressure monitor control unit |
17A |
| U58 |
Valid for model 204.0 |
3C |
| U59 |
Valid for model 204.9 |
3C |
| W18/3 |
Left front seat crossmember ground point 2 |
3E |
| W6/1 |
Left tail lamp trunk ground point |
3E |
| W7/1 |
Right tail lamp trunk ground point |
16E |

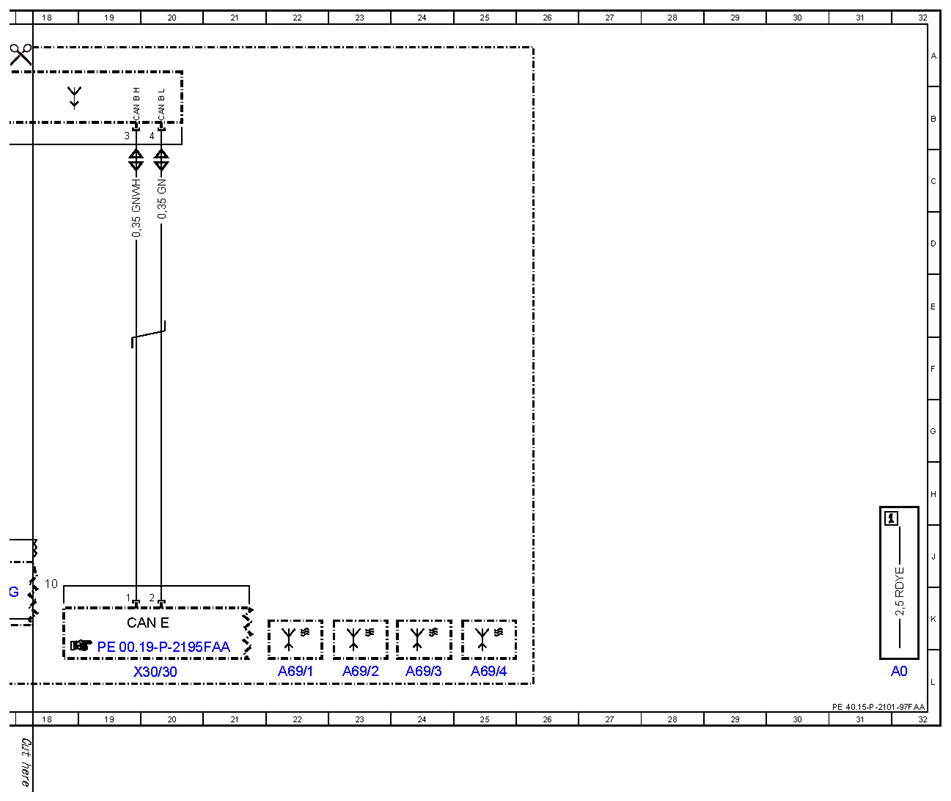

| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
20L |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
7L |
