Power steering - Check the oil level - AP46.00-P-4612CW

MODEL 204 with ENGINE 156, 271, 272, 276, 642, 646, 651

Engine 156

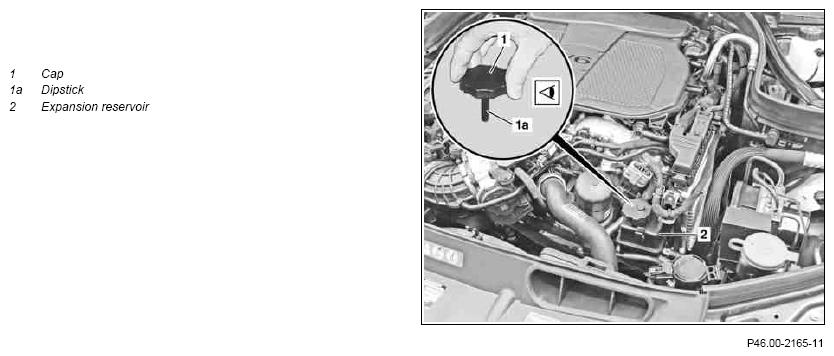

Fig 1: Checking Power Steering Oil Level (Engine 156)

Courtesy of MERCEDES-BENZ USA

Engine 271

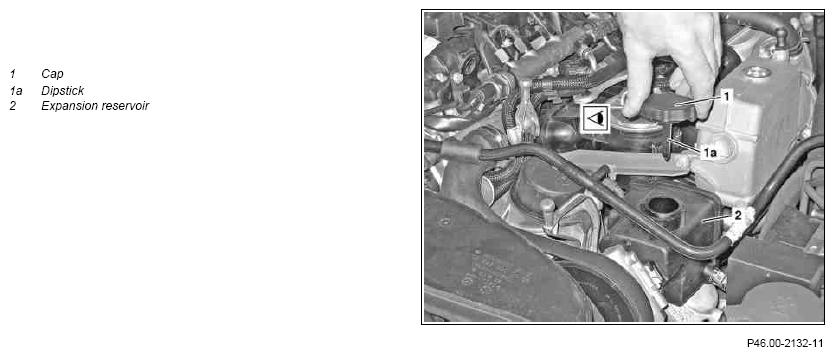

Fig 2: Checking Power Steering Oil Level (Engine 271)

Courtesy of MERCEDES-BENZ USA

Engine 272

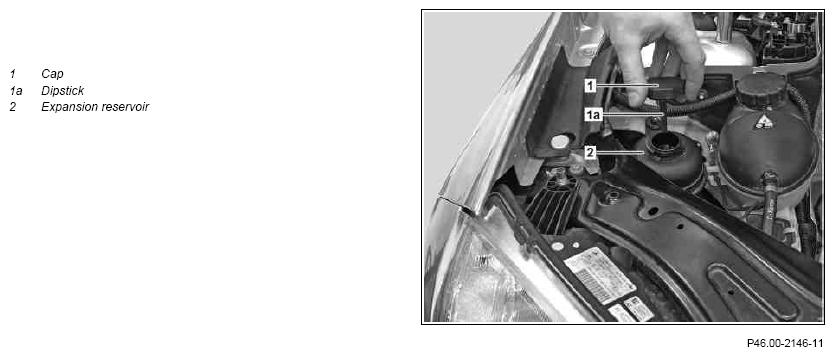

Fig 3: Checking Power Steering Oil Level (Engine 272)

Courtesy of MERCEDES-BENZ USA

Engine 276

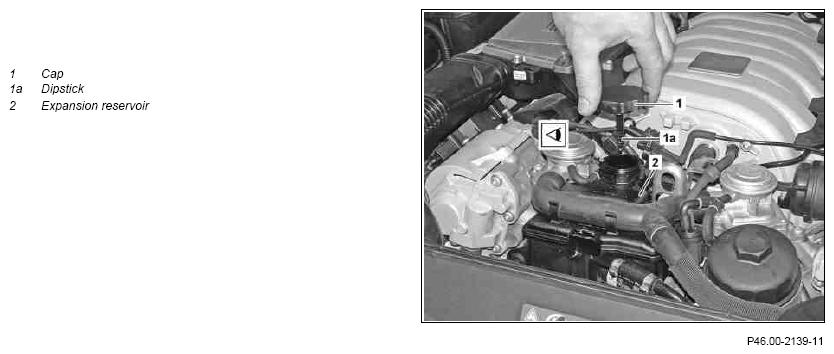

Fig 4: Checking Power Steering Oil Level (Engine 276)

Courtesy of MERCEDES-BENZ USA

Engine 642

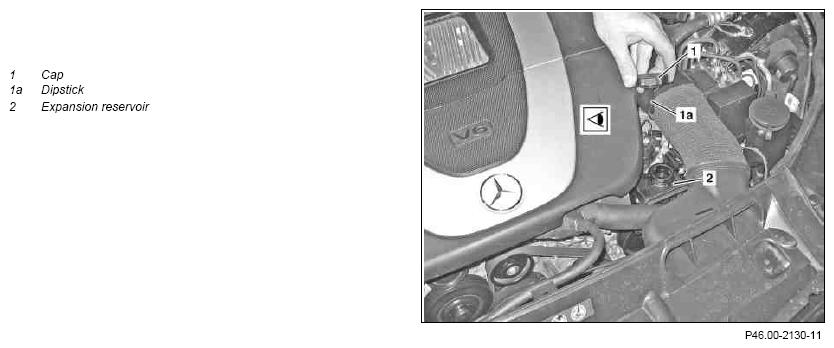

Fig 5: Checking Power Steering Oil Level (Engine 642)

Courtesy of MERCEDES-BENZ USA

Engine 646

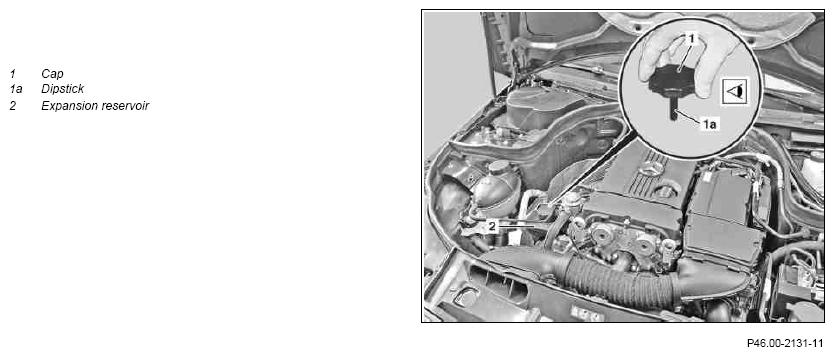

Fig 6: Checking Power Steering Oil Level (Engine 646)

Courtesy of MERCEDES-BENZ USA

Engine 651 without electrohydraulic power steering (EHPS)

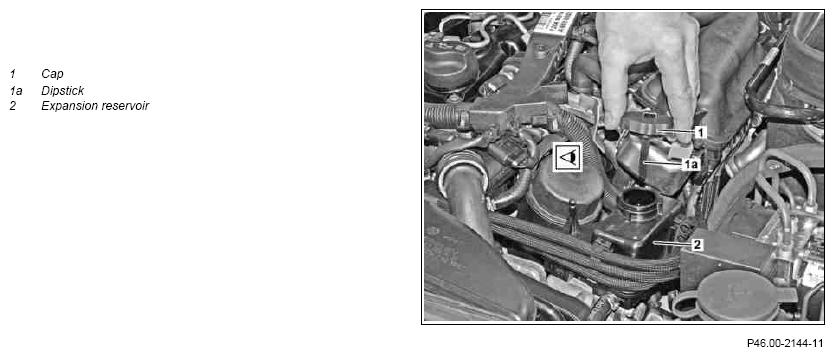

Fig 7: Checking Power Steering Oil Level (Engine 651 Without Electrohydraulic Power Steering)

Courtesy of MERCEDES-BENZ USA

Engine 651 with EHPS

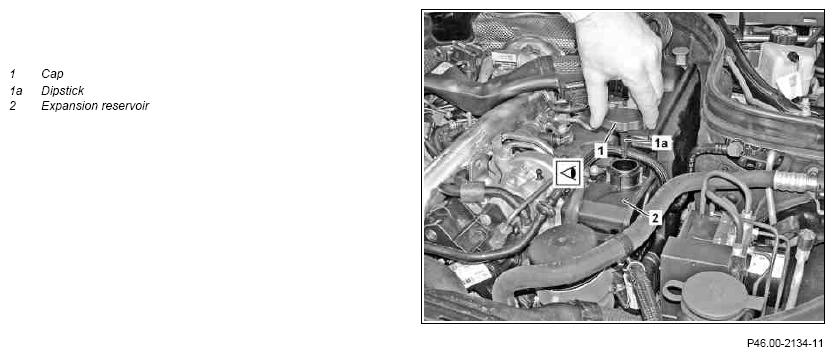

Fig 8: Checking Power Steering Oil Level (Engine 651 With EHPS)

Courtesy of MERCEDES-BENZ USA

	Remove
	Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
1	Switch off ignition
2	Open engine hood	MODEL 204 with ENGINE 156, 271, 272, 276, 642, 646, 651
		Model 204.3	AR88.40-P-1000EW
3.1	Remove upper engine cover	Engine 642 Place upper engine cover onto padded base. Otherwise it may be damaged.
3.2	Remove front engine cover	Engine 156, 276 Place engine cover onto padded base. Otherwise it may be damaged.
3.3	Remove cylinder head cover trim	ENGINE 651 without EHPS, 646
		Engine 646	AR01.20-P-5014-02A
		ENGINE 651 without EHPS	AR01.20-P-5014-02CD
4	Remove cap (1) of power steering expansion reservoir (2)	Before opening the hydraulic system of the power steering, thoroughly clean the area surrounding the separation point. Even the smallest particles of dirt can lead to malfunctions and damage to hydraulic components. Press the cap (1) downwards and turn counterclockwise through 90°.
5	Wipe off oil dipstick (1a) with a fluff-free rag and seal the expansion reservoir (2) with cap (1)	Press the cap (1) downwards and turn clockwise through 90°.
	Check
6	Remove cap (1) and read off oil level on oil dipstick (1a)	Observe oil temperature and markings on oil dipstick (1a). Corresponding to the oil temperature, the oil level must be between the "MIN" and "MAX" marks. In order to avoid measurement errors, hold the oil dipstick (1a) upright. If the oil level is too low: ↓ Determine and rectify cause, subject to separate repair order.
	Install
7	Seal expansion reservoir (2) with cap (1)	Press the cap (1) downwards and turn clockwise through 90°.
8.1	Install upper engine cover	Engine 642
8.2	Fit front engine cover	Engine 156, 276
8.3	Install trim panel of cylinder head cover	ENGINE 651 without EHPS, 646
		ENGINE 651 without EHPS	AR01.20-P-5014-02CD
		Engine 646	AR01.20-P-5014-02A
9	Close engine hood	MODEL 204
		Model 204.3	AR88.40-P-1000EW
