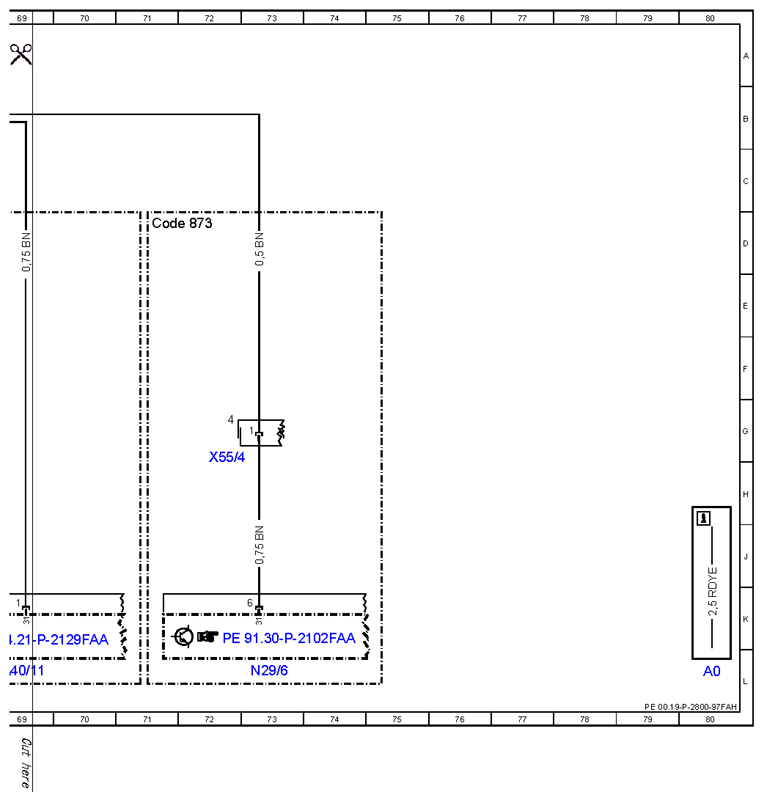

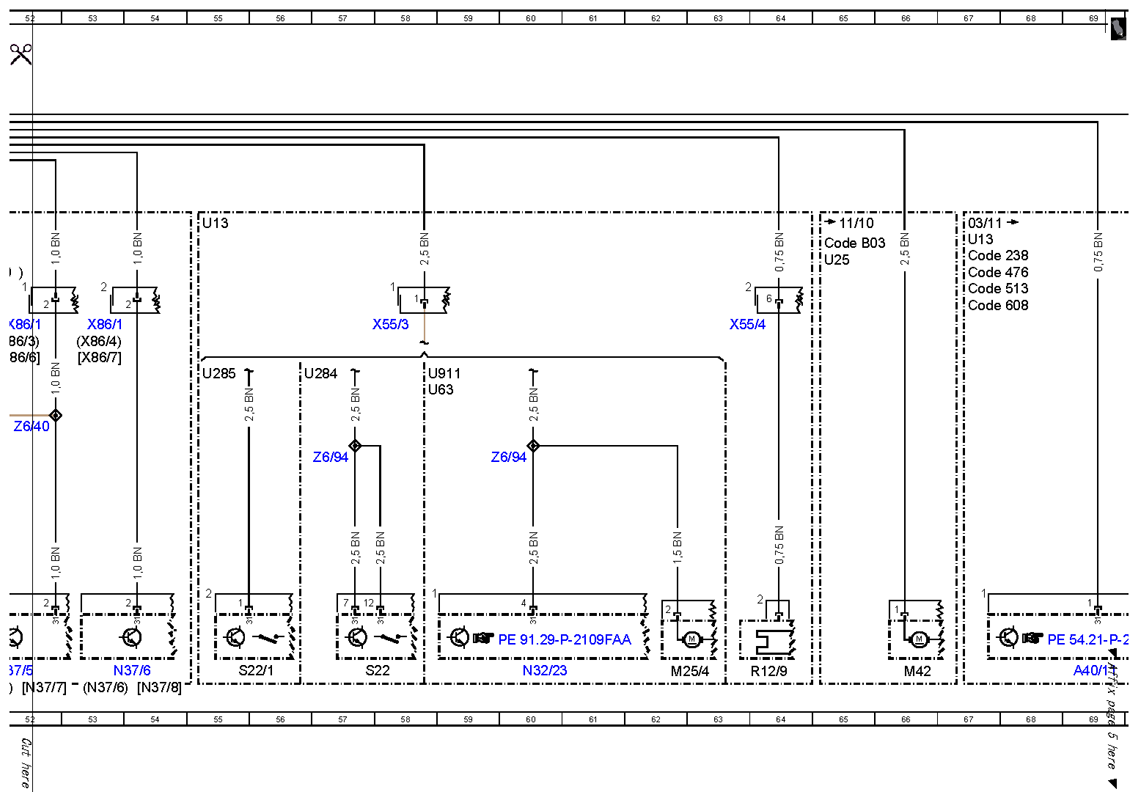

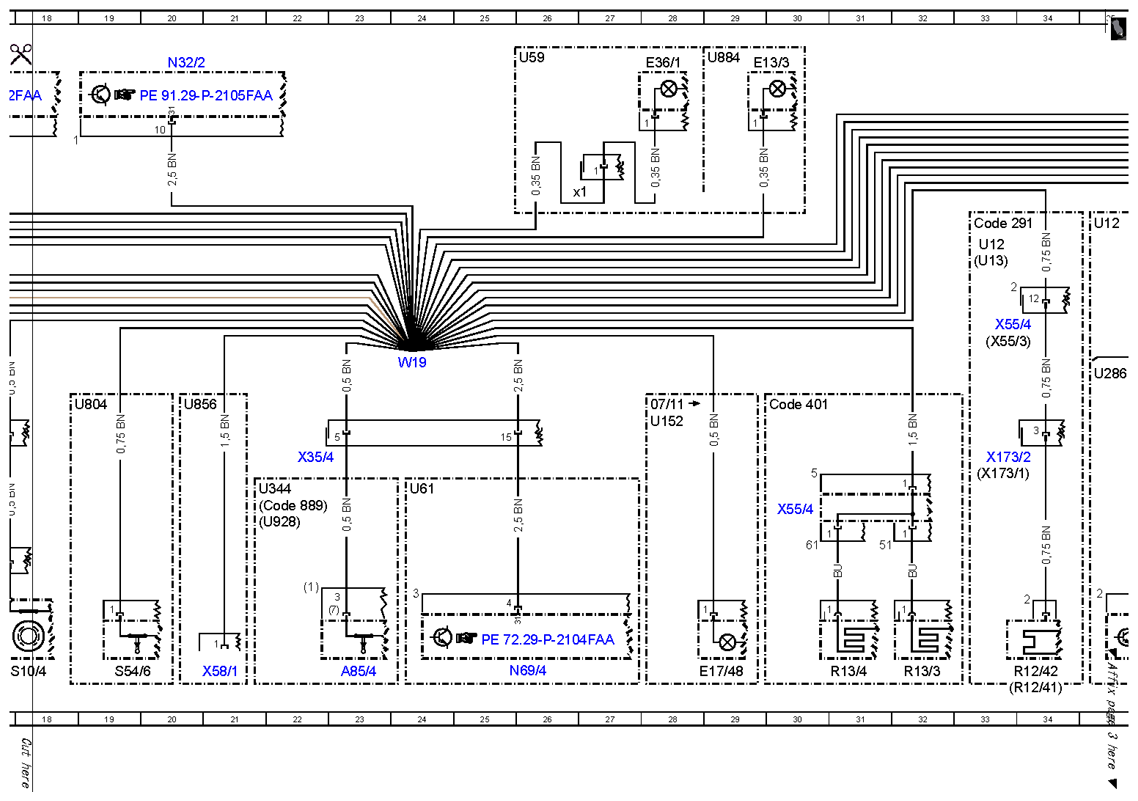

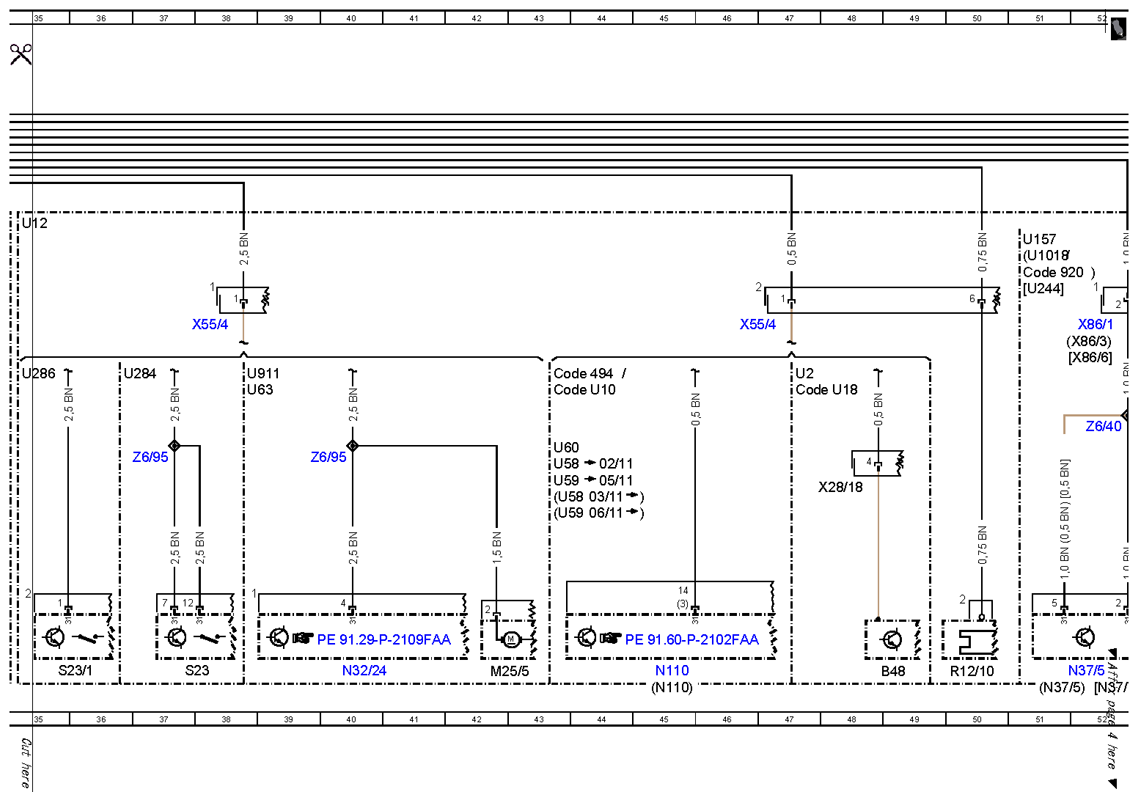

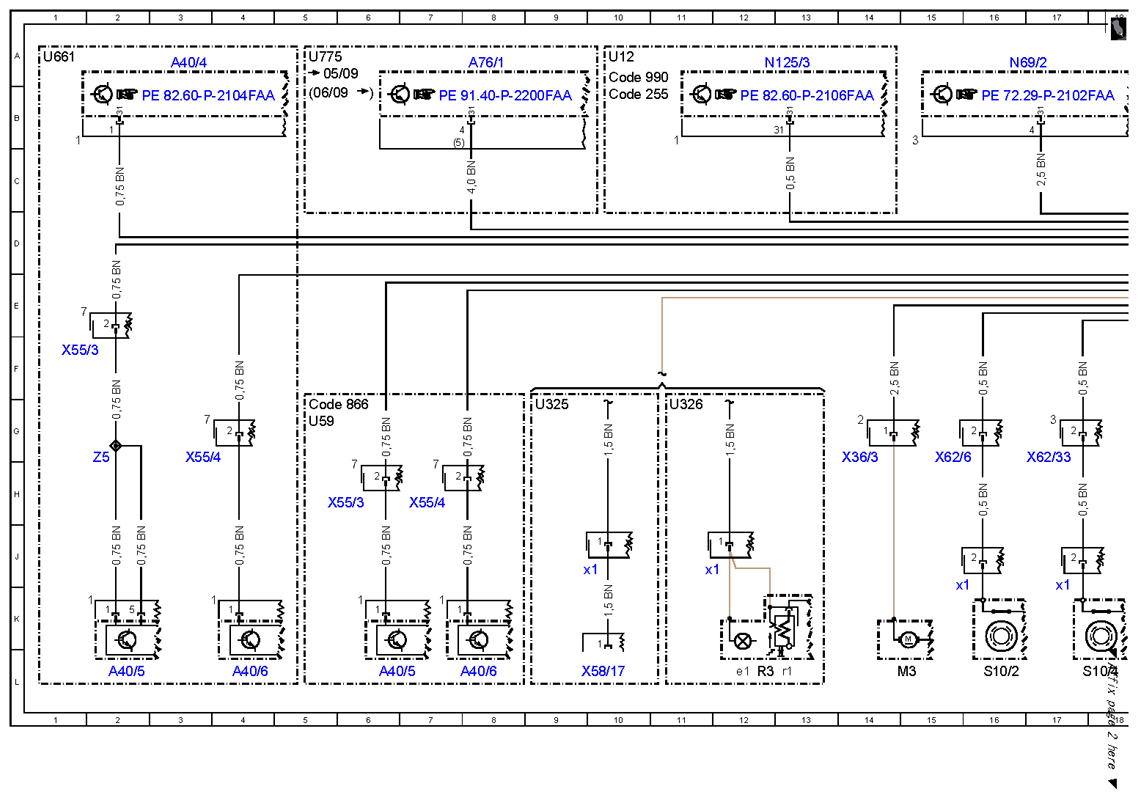

| A0 |
Color code key |
80L |
| A40/11 |
Multifunction camera |
69L |
| A40/4 |
DVD player |
3A |
| A40/5 |
Left rear display |
2L |
| A40/5 |
Left rear display |
6L |
| A40/6 |
Right rear display |
4L |
| A40/6 |
Right rear display |
8L |
| A76/1 |
Right front reversible emergency tensioning retractor |
8A |
| A85/4 |
Right rear door lock |
23L |
| B48 |
Front passenger seat occupied recognition and ACSR |
49L |
| Code 238 |
Active Lane Keeping Assist |
67D |
| Code 255 |
AMG Performance Media |
10B |
| Code 291 |
Pelvisbag |
33D |
| Code 401 |
Front comfort seats, incl. seat heating and seat ventilation |
30G |
| Code 476 |
Automatic lane detection |
67E |
| Code 494 |
USA version |
43F |
| Code 513 |
Speed Limit Assist |
67E |
| Code 608 |
Adaptive Highbeam Assist |
67E |
| Code 866 |
Rear entertainment preinstallation |
5G |
| Code 873 |
Heated seats for driver and front passenger seat |
71D |
| Code 889 |
KEYLESS-GO |
21H |
| Code 920 |
Gasoline direct injection with stratified charge |
51E |
| Code 990 |
Mercedes-Benz AMG vehicles |
10A |
| Code B03 |
ECO start/stop function |
65D |
| Code U10 |
Weight sensing system (WSS) |
43F |
| Code U18 |
Automatic child seat recognition (ACSR[AKSE]) |
47F |
| E13/3 |
Stowage compartment illumination |
29A |
| E17/48 |
Right front illuminated door sill molding |
29L |
| E36/1 |
Armrest stowage compartment illumination |
28A |
| M25/4 |
Driver seat lumbar support pneumatic pump |
62L |
| M25/5 |
Front passenger seat lumbar support pneumatic pump |
42L |
| M3 |
Right fuel pump |
15L |
| M4/1x1 |
Oil cooler fan motor electrical connector |
26C |
| M42 |
Electric transmission oil pump |
66L |
| N110 |
Weight Sensing System (WSS) control unit |
45L |
| N110 |
Weight Sensing System (WSS) control unit |
45L |
| N125/3 |
AMG Performance Media control unit |
13A |
| N29/6 |
Right front seat ventilation blower regulator |
73L |
| N32/2 |
Front passenger seat control unit |
20A |
| N32/23 |
Driver seat lumbar support adjustment control unit |
60L |
| N32/24 |
Front passenger seat lumbar support adjustment control unit |
40L |
| N37/5 |
Left nitrogen oxides control unit |
52L |
| N37/5 |
Left nitrogen oxides control unit |
51L |
| N37/6 |
Right nitrogen oxides control unit |
53L |
| N37/6 |
Right nitrogen oxides control unit |
53L |
| N37/7 |
NOx sensor control unit downstream of diesel particulate filter |
52L |
| N37/8 |
NOx sensor control unit downstream of SCR catalytic converter |
54L |
| N69/2 |
Right front door control unit |
16A |
| N69/4 |
Right rear door control unit |
26L |
| R12/10 |
Front passenger sidebag squib |
50L |
| R12/41 |
Driver pelvis airbag squib |
34L |
| R12/42 |
Front passenger pelvis airbag squib |
34L |
| R12/9 |
Driver sidebag squib |
64L |
| R13/3 |
Right front seat sitting surface heated cushion |
32L |
| R13/4 |
Right front backrest heated cushion |
31L |
| R3 |
Front cigarette lighter with ashtray illumination |
12L |
| R3e1 |
Ashtray illumination |
12L |
| R3r1 |
Cigarette lighter heating element |
13L |
| R3x1 |
Front cigarette lighter with ashtray illumination electrical connector |
11J |
| S10/2 |
Right front brake wear sensor |
16L |
| S10/2x1 |
Right front brake wear sensor electrical connector |
15K |
| S10/4 |
Right rear brake wear sensor |
18L |
| S10/4x1 |
Right rear brake wear sensor electrical connector |
17K |
| S22 |
Left front seat adjustment switch group |
57L |
| S22/1 |
Driver seat partially electric seat adjustment switch |
55L |
| S23 |
Right front seat adjustment switch group |
37L |
| S23/1 |
Front passenger seat partially electric seat adjustment switch |
35L |
| S54/6 |
Right rear backrest inclination switch |
19L |
| U1018 |
Valid for gasoline engine 276 |
51D |
| U12 |
Valid for left-hand drive vehicles |
33D |
| U12 |
Valid for left-hand drive vehicles |
35D |
| U12 |
Valid for left-hand drive vehicles |
10A |
| U13 |
Valid for right-hand drive vehicles |
33D |
| U13 |
Valid for right-hand drive vehicles |
55D |
| U13 |
Valid for right-hand drive vehicles |
67D |
| U152 |
Valid for gasoline engine 156 |
28G |
| U157 |
Valid for combustion engine 272 DE |
51D |
| U2 |
Valid for all except USA |
47F |
| U244 |
Valid for BlueTEC |
51E |
| U25 |
Valid for automatic transmission |
65D |
| U284 |
Valid for fully electric seat adjustment |
36F |
| U284 |
Valid for fully electric seat adjustment |
56F |
| U285 |
Valid for partially electric driver seat adjustment |
55F |
| U286 |
Valid for partially electric front passenger seat adjustment |
35F |
| U325 |
Valid for smoker package |
9G |
| U326 |
Valid for nonsmoker package |
11G |
| U344 |
Valid for all except KEYLESS GO |
21H |
| U58 |
Valid for model 204.0 |
43H |
| U58 |
Valid for model 204.0 |
43H |
| U59 |
Valid for model 204.9 |
26A |
| U59 |
Valid for model 204.9 |
43H |
| U59 |
Valid for model 204.9 |
43H |
| U59 |
Valid for model 204.9 |
5G |
| U60 |
Valid for model 204.3 |
43G |
| U61 |
Not valid for model 204.3 |
24H |
| U63 |
Valid for seat adjustment without memory function |
38F |
| U63 |
Valid for seat adjustment without memory function |
58F |
| U661 |
Valid for TV and video in rear |
1A |
| U775 |
Valid for emergency tensioning retractor |
5A |
| U804 |
Valid for rear backrest adjustment |
18G |
| U856 |
Valid for rear socket |
20G |
| U884 |
Valid for ambiance illumination |
29A |
| U911 |
Valid for lumbar support |
38F |
| U911 |
Valid for lumbar support |
58F |
| U928 |
Valid for England |
21J |
| W19 |
Right front seat crossmember ground point |
24F |
| X173/1 |
Driver pelvis airbag electrical connector |
33H |
| X173/2 |
Front passenger pelvis airbag electrical connector |
33G |
| X28/18 |
ACSR [AKSE] seat occupied recognition electrical connector |
48H |
| X35/4 |
Right rear door electrical connector |
22H |
| X36/3 |
Fuel pump harness electrical connector |
14G |
| X55/3 |
Driver seat connector block |
1F |
| X55/3 |
Driver seat connector block |
33F |
| X55/3 |
Driver seat connector block |
58E |
| X55/3 |
Driver seat connector block |
6H |
| X55/4 |
Front passenger seat connector block |
3H |
| X55/4 |
Front passenger seat connector block |
30H |
| X55/4 |
Front passenger seat connector block |
33E |
| X55/4 |
Front passenger seat connector block |
38E |
| X55/4 |
Front passenger seat connector block |
63E |
| X55/4 |
Front passenger seat connector block |
47E |
| X55/4 |
Front passenger seat connector block |
7H |
| X55/4 |
Front passenger seat connector block |
72H |
| X58/1 |
Vehicle interior power outlet |
21L |
| X58/17 |
Front vehicle interior power outlet |
10L |
| X58/17x1 |
Electrical connector/front vehicle interior socket |
10J |
| X62/33 |
Rear axle electrical connector, right distributor |
17H |
| X62/6 |
Front axle electrical connector, right distributor |
15H |
| X86/1 |
Nitrogen oxides control unit electrical connector |
52E |
| X86/1 |
Nitrogen oxides control unit electrical connector |
53E |
| X86/3 |
Left nitrogen oxides control unit electrical connector |
52F |
| X86/4 |
Right nitrogen oxides control unit electrical connector |
53F |
| X86/6 |
Electrical connector of NOx sensor control unit downstream of diesel particulate filter |
52F |
| X86/7 |
Electrical connector of NOx sensor control unit downstream of SCR catalytic converter |
53F |
| Z5 |
Connector sleeve in wiring harness |
2G |
| Z6/40 |
NOx sensor connector sleeve |
52G |
| Z6/94 |
Driver seat circuit 31 connector sleeve |
57G |
| Z6/94 |
Driver seat circuit 31 connector sleeve |
60G |
| Z6/95 |
Front passenger seat circuit 31 connector sleeve |
37G |
| Z6/95 |
Front passenger seat circuit 31 connector sleeve |
40G |
