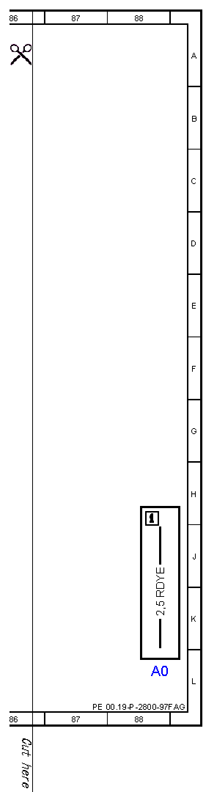

| A0 |
Color code key |
88L |
| A38/1 |
Pedestrian protection Hall sensor + engine hood ATA [EDW] switch |
78L |
| A76 |
Left front reversible emergency tensioning retractor |
12A |
| A80 |
Intelligent servo module for DIRECT SELECT |
23A |
| A85/3 |
Left rear door lock |
16L |
| B4/31 |
Fuel quality sensor |
27L |
| B48 |
Front passenger seat occupied recognition and ACSR |
49L |
| Code 218 |
Backup camera |
62G |
| Code 255 |
AMG Performance Media |
1B |
| Code 291 |
Pelvisbag |
28D |
| Code 359 |
TELEAID emergency call system |
72F |
| Code 401 |
Front comfort seats, incl. seat heating and seat ventilation |
20F |
| Code 494 |
USA version |
24F |
| Code 494 |
USA version |
68F |
| Code 512 |
COMAND APS with DVD changer |
71B |
| Code 536 |
SIRIUS satellite radio |
71B |
| Code 536 |
SIRIUS satellite radio |
71A |
| Code 537 |
Digital radio |
71A |
| Code 581 |
Comfort automatic air conditioning |
8F |
| Code 581 |
Comfort automatic air conditioning |
66F |
| Code 873 |
Heated seats for driver and front passenger seat |
56F |
| Code 889 |
KEYLESS-GO |
14H |
| Code 920 |
Gasoline direct injection with stratified charge |
52E |
| Code 929 |
Engine for ethanol fuel |
26F |
| Code 990 |
Mercedes-Benz AMG vehicles |
1A |
| Code B03 |
ECO start/stop function |
1F |
| Code B54 |
COM module |
79A |
| Code P84 |
Sport Edition |
76A |
| Code U18 |
Automatic child seat recognition (ACSR[AKSE]) |
48F |
| Code U60 |
Active engine hood |
76F |
| E17/47 |
Left front illuminated door sill molding |
4L |
| E18/5 |
Left luggage compartment lamp |
6L |
| E40/2 |
Left trunk lid ambient lamp and warning lamp |
7L |
| M2/1 |
Rear blower motor |
10L |
| M2/1 |
Rear blower motor |
67L |
| M2/1x1 |
Rear blower motor electrical connector |
9J |
| M2/1x1 |
Rear blower motor electrical connector |
67J |
| M25/4 |
Driver seat lumbar support pneumatic pump |
37L |
| M25/5 |
Front passenger seat lumbar support pneumatic pump |
47L |
| M40 |
Multicontour seat pneumatic pump |
61L |
| M42 |
Electric transmission oil pump |
2L |

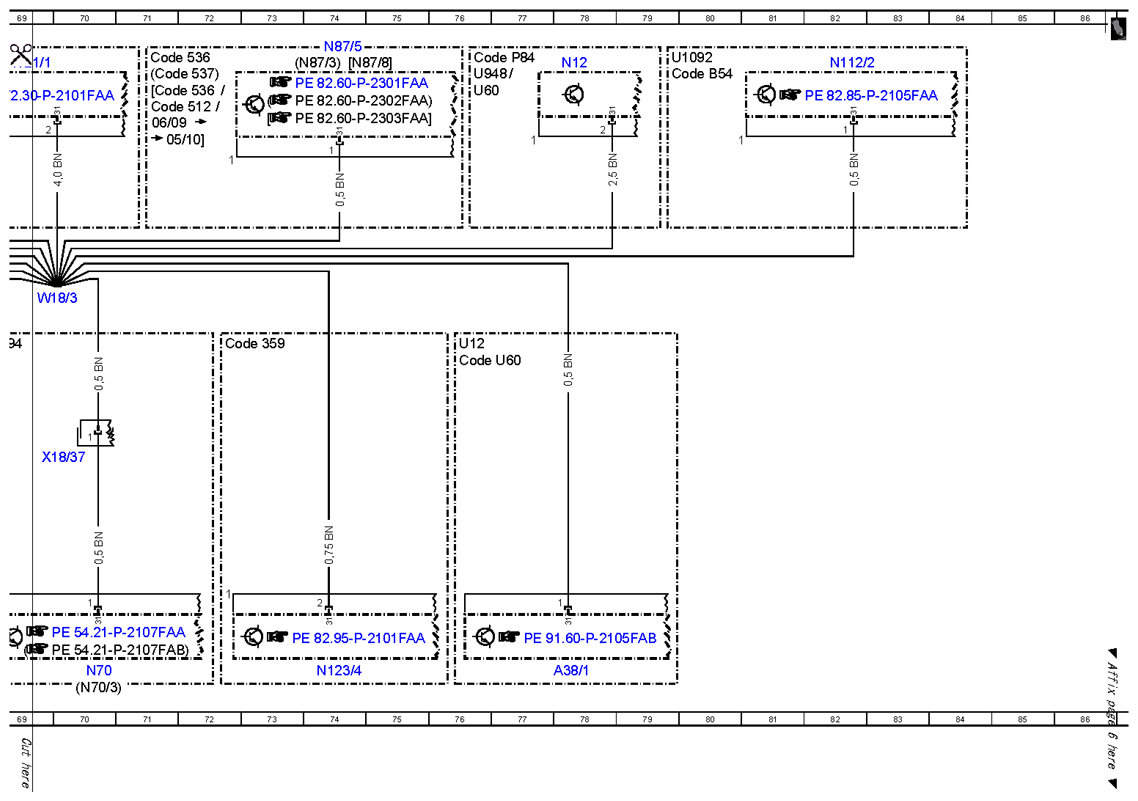

| N112/2 |
Telematics services communication module |
82A |
| N12 |
Sound generator control unit, exhaust system |
78A |
| N121/1 |
Tailgate control control unit |
69A |
| N123/4 |
Emergency call system control unit |
74L |
| N125/3 |
AMG Performance Media control unit |
3A |
| N15/5 |
Electronic selector lever module control unit |
7A |
| N29/5 |
Left front seat ventilation blower regulator |
58L |

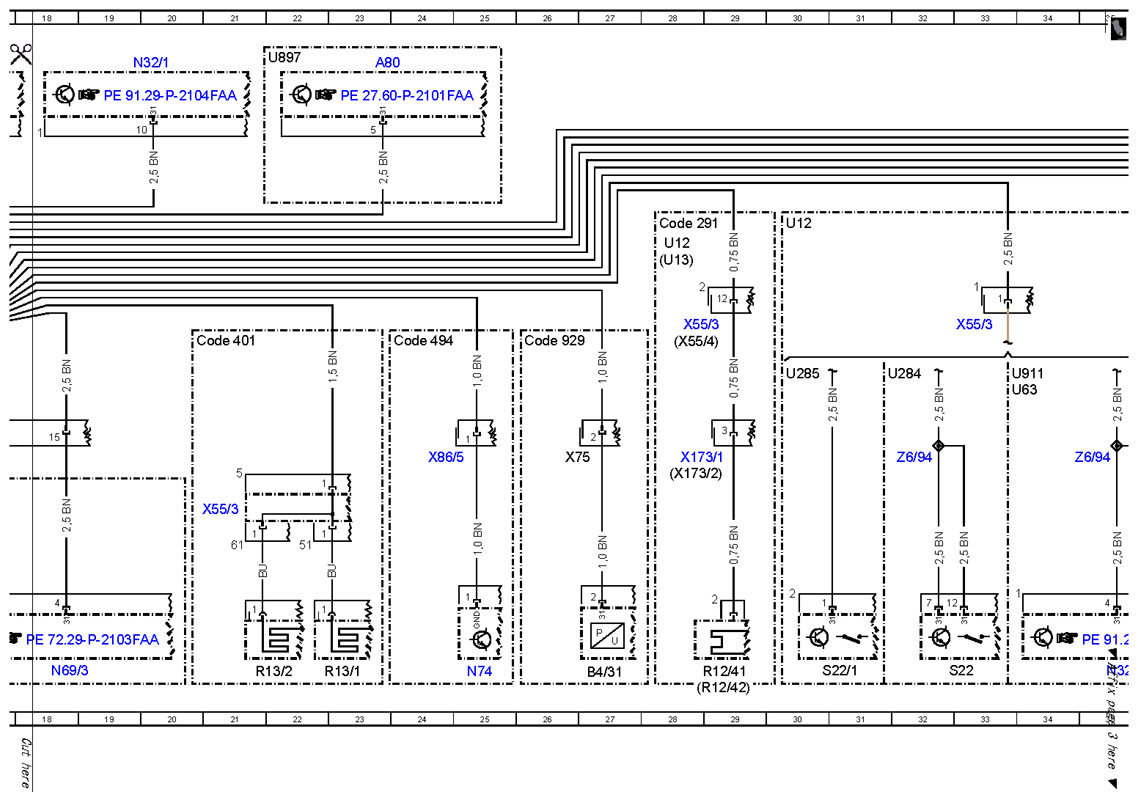

| N32/1 |
Driver seat control unit |
20A |
| N32/23 |
Driver seat lumbar support adjustment control unit |
35L |
| N32/24 |
Front passenger seat lumbar support adjustment control unit |
45L |

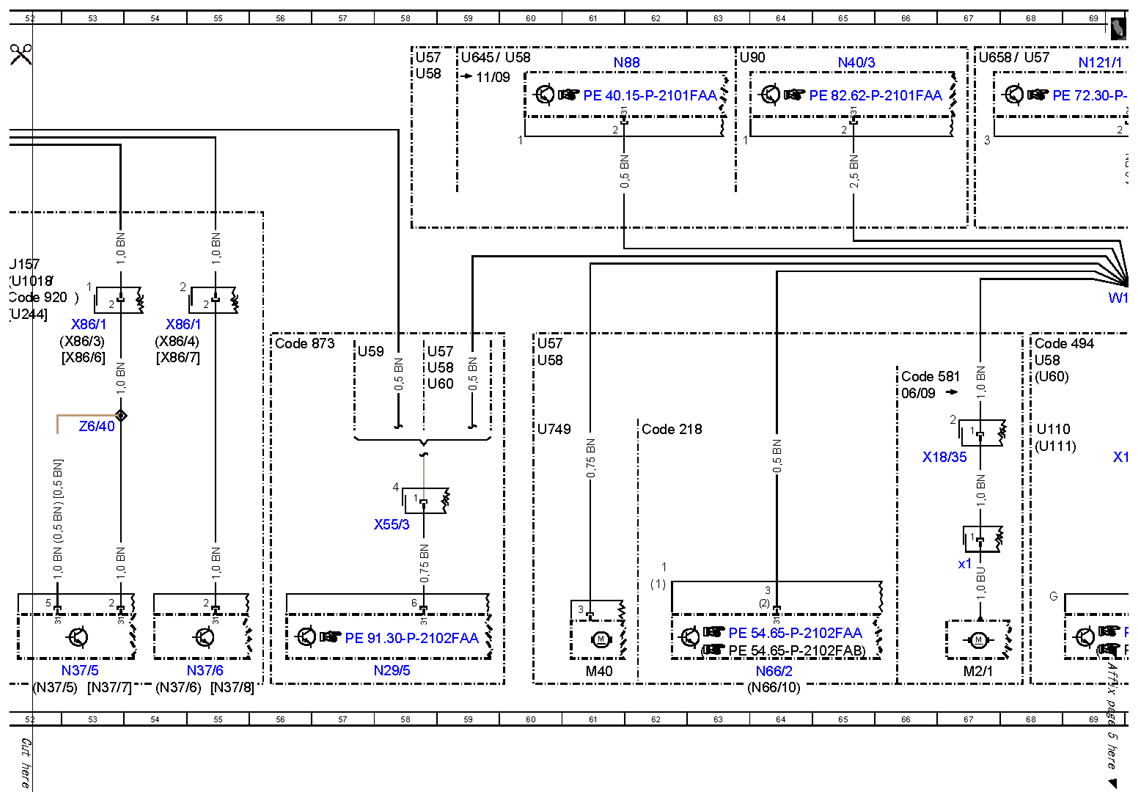

| N37/5 |
Left nitrogen oxides control unit |
53L |
| N37/5 |
Left nitrogen oxides control unit |
52L |
| N37/6 |
Right nitrogen oxides control unit |
55L |
| N37/6 |
Right nitrogen oxides control unit |
54L |
| N37/7 |
NOx sensor control unit downstream of diesel particulate filter |
53L |
| N37/8 |
NOx sensor control unit downstream of SCR catalytic converter |
55L |
| N40/3 |
Sound system amplifier control unit |
65A |
| N66/10 |
Backup camera voltage supply module |
64L |
| N66/2 |
Backup camera control unit |
64L |
| N69/1 |
Left front door control unit |
16A |
| N69/3 |
Left rear door control unit |
18L |
| N70 |
Overhead control panel control unit |
70L |
| N70/3 |
Overhead control panel electronics |
70L |
| N74 |
Soot particulate sensor control unit |
25L |
| N87/3 |
Digital Audio Broadcasting control unit |
74A |
| N87/5 |
Satellite digital audio radio (SDAR) control unit |
74A |
| N87/8 |
SDAR control unit/high definition tuner |
74A |
| N88 |
Tire pressure monitor control unit |
61A |
| R12/10 |
Front passenger sidebag squib |
51L |
| R12/41 |
Driver pelvis airbag squib |
29L |
| R12/42 |
Front passenger pelvis airbag squib |
29L |
| R12/9 |
Driver sidebag squib |
39L |
| R13/1 |
Left front seat sitting surface heated cushion |
23L |
| R13/2 |
Left front backrest heated cushion |
21L |
| S22 |
Left front seat adjustment switch group |
33L |
| S22/1 |
Driver seat partially electric seat adjustment switch |
31L |
| S23 |
Right front seat adjustment switch group |
42L |
| S23/1 |
Front passenger seat partially electric seat adjustment switch |
40L |
| S54/5 |
Left rear backrest inclination switch |
13L |
| S68/5 |
Left rear seat belt buckle switch |
11L |
| S68/5x1 |
Left rear seat belt buckle switch electrical connector |
11J |
| U1018 |
Valid for gasoline engine 276 |
52E |
| U108 |
Valid for rear seat belt buckles |
10F |
| U1092 |
Not valid for 204.9 |
79A |
| U110 |
Valid for overhead control panel with CAN |
68G |
| U111 |
Valid for overhead control panel without CAN |
68G |
| U12 |
Valid for left-hand drive vehicles |
28D |
| U12 |
Valid for left-hand drive vehicles |
30D |
| U12 |
Valid for left-hand drive vehicles |
76F |
| U13 |
Valid for right-hand drive vehicles |
1A |
| U13 |
Valid for right-hand drive vehicles |
28D |
| U13 |
Valid for right-hand drive vehicles |
40D |
| U152 |
Valid for gasoline engine 156 |
3F |
| U157 |
Valid for combustion engine 272 DE |
52D |
| U2 |
Valid for all except USA |
48F |
| U244 |
Valid for BlueTEC |
52E |
| U25 |
Valid for automatic transmission |
1F |
| U25 |
Valid for automatic transmission |
6A |
| U284 |
Valid for fully electric seat adjustment |
31F |
| U284 |
Valid for fully electric seat adjustment |
41F |
| U285 |
Valid for partially electric driver seat adjustment |
30F |
| U286 |
Valid for partially electric front passenger seat adjustment |
40F |
| U344 |
Valid for all except KEYLESS GO |
14H |
| U57 |
Valid for model 204.2 |
5F |
| U57 |
Valid for model 204.2 |
7F |
| U57 |
Valid for model 204.2 |
10F |
| U57 |
Valid for model 204.2 |
58F |
| U57 |
Valid for model 204.2 |
60F |
| U57 |
Valid for model 204.2 |
58A |
| U57 |
Valid for model 204.2 |
68A |
| U58 |
Valid for model 204.0 |
10F |
| U58 |
Valid for model 204.0 |
58F |
| U58 |
Valid for model 204.0 |
60F |
| U58 |
Valid for model 204.0 |
60A |
| U58 |
Valid for model 204.0 |
58A |
| U58 |
Valid for model 204.0 |
68F |
| U59 |
Valid for model 204.9 |
1F |
| U59 |
Valid for model 204.9 |
5F |
| U59 |
Valid for model 204.9 |
8F |
| U59 |
Valid for model 204.9 |
57F |
| U60 |
Valid for model 204.3 |
10F |
| U60 |
Valid for model 204.3 |
68F |
| U60 |
Valid for model 204.3 |
58F |
| U60 |
Valid for model 204.3 |
76B |
| U61 |
Not valid for model 204.3 |
17H |
| U63 |
Valid for seat adjustment without memory function |
33F |
| U63 |
Valid for seat adjustment without memory function |
43F |
| U645 |
Valid for tire pressure monitor |
59A |
| U658 |
Valid for tailgate control |
67A |
| U749 |
Valid for multicontour seat |
60G |
| U775 |
Valid for emergency tensioning retractor |
9A |
| U804 |
Valid for rear backrest adjustment |
12F |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
22A |
| U90 |
Valid for sound system |
63A |
| U911 |
Valid for lumbar support |
33F |
| U911 |
Valid for lumbar support |
43F |
| U928 |
Valid for England |
14J |
| U948 |
Valid for diesel engine 651 |
76A |

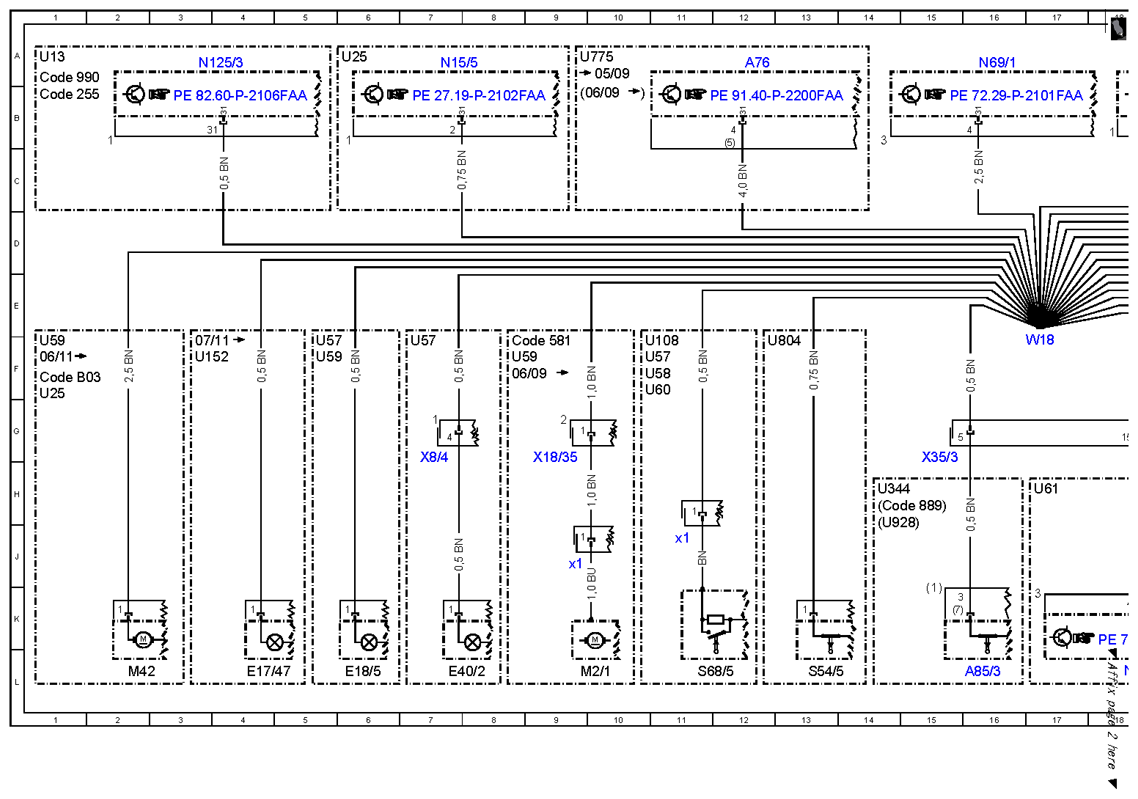

| W18 |
Left front seat crossmember ground point |
17F |
| W18/3 |
Left front seat crossmember ground point 2 |
69E |
| X173/1 |
Driver pelvis airbag electrical connector |
28G |
| X173/2 |
Front passenger pelvis airbag electrical connector |
28H |
| X18/35 |
Instrument panel and vehicle floor electrical connector |
9H |
| X18/35 |
Instrument panel and vehicle floor electrical connector |
67H |
| X18/37 |
Emergency call system button electrical connector |
70H |
| X28/18 |
ACSR [AKSE] seat occupied recognition electrical connector |
49G |
| X35/3 |
Left rear door electrical connector |
15H |

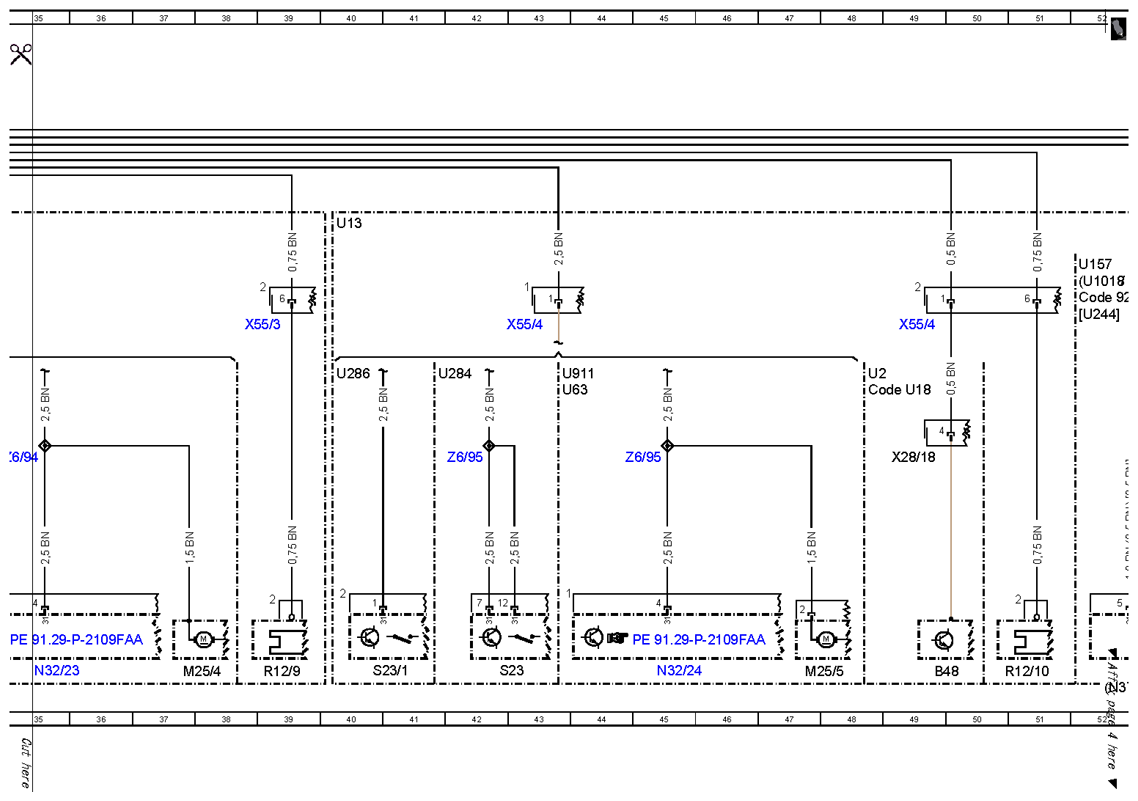

| X55/3 |
Driver seat connector block |
21H |
| X55/3 |
Driver seat connector block |
28E |
| X55/3 |
Driver seat connector block |
33E |
| X55/3 |
Driver seat connector block |
39E |
| X55/3 |
Driver seat connector block |
58J |
| X55/4 |
Front passenger seat connector block |
28F |
| X55/4 |
Front passenger seat connector block |
43E |
| X55/4 |
Front passenger seat connector block |
49E |
| X75 |
Fuel quality sensor electrical connector |
27H |
| X8/4 |
Tailgate electrical connector |
7G |
| X86/1 |
Nitrogen oxides control unit electrical connector |
53E |
| X86/1 |
Nitrogen oxides control unit electrical connector |
54E |
| X86/3 |
Left nitrogen oxides control unit electrical connector |
53F |
| X86/4 |
Right nitrogen oxides control unit electrical connector |
54F |
| X86/5 |
Soot particulate sensor electrical connector |
24H |
| X86/6 |
Electrical connector of NOx sensor control unit downstream of diesel particulate filter |
53F |
| X86/7 |
Electrical connector of NOx sensor control unit downstream of SCR catalytic converter |
54F |
| Z6/40 |
NOx sensor connector sleeve |
53G |
| Z6/94 |
Driver seat circuit 31 connector sleeve |
32G |
| Z6/94 |
Driver seat circuit 31 connector sleeve |
35G |
| Z6/95 |
Front passenger seat circuit 31 connector sleeve |
42G |
| Z6/95 |
Front passenger seat circuit 31 connector sleeve |
45G |
