Wiring diagram for telematics CAN - PE00.19-U-2180-99FAA

Code:	Designation:	Position:
A2	Radio	11 L
A40/3	COMAND control unit	10 L
A40/8	Audio/COMAND display	7 L
A40/9	Audio/COMAND control panel	2 L
CAN A	Telematics CAN	2 K
CAN A	Telematics CAN	6 K
CAN A	Telematics CAN	11 K
U631	Valid for COMAND	8 D
U631	Valid for COMAND	9 E
U865	Valid for Audio 20 radio	6 D
U865	Valid for Audio 20 radio	6 D
U865	Valid for Audio 20 radio	9 E
W15/6	Ground point (right front footwell CAN)	4 E
X30/35	Telematics CAN voltage distributor electrical connector	4 A
X30/35	Telematics CAN voltage distributor electrical connector	14 A
X30/35	Telematics CAN voltage distributor electrical connector	22 A

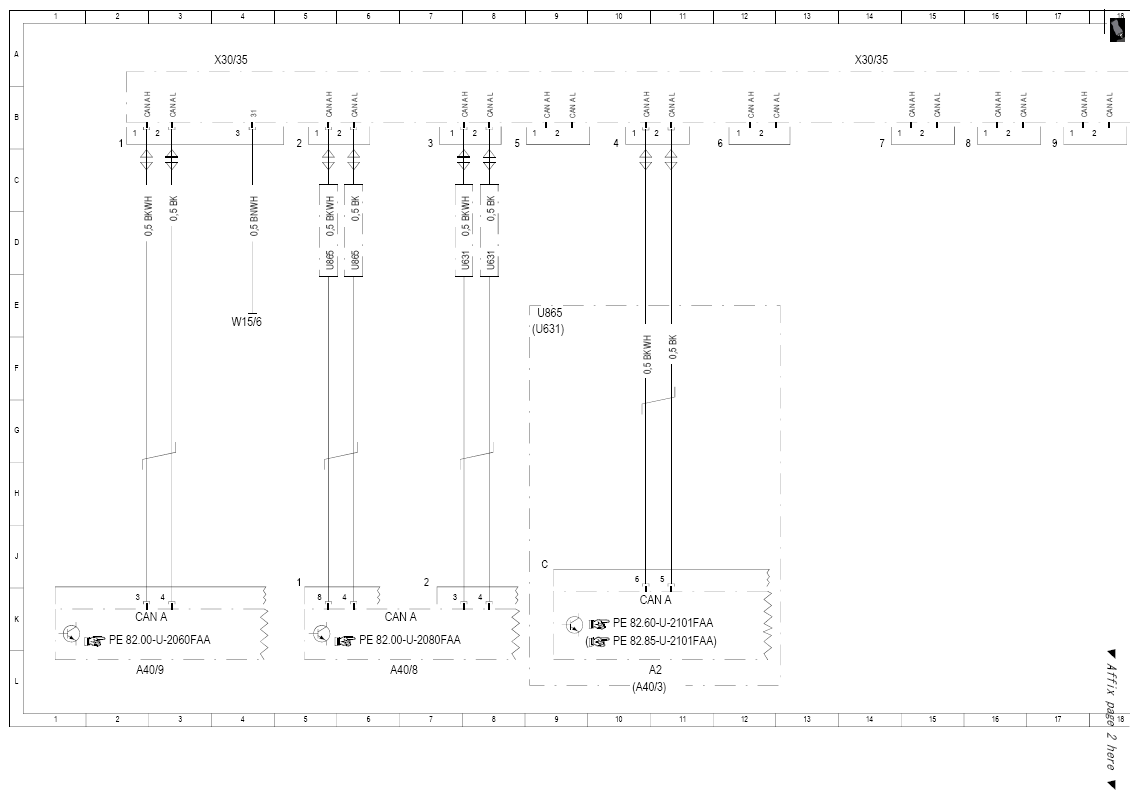

Fig 1: Telematics CAN - Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

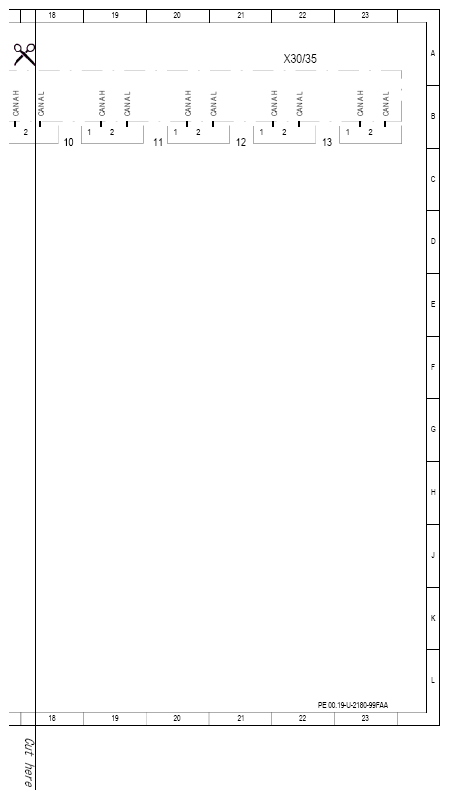

Fig 2: Telematics CAN - Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
