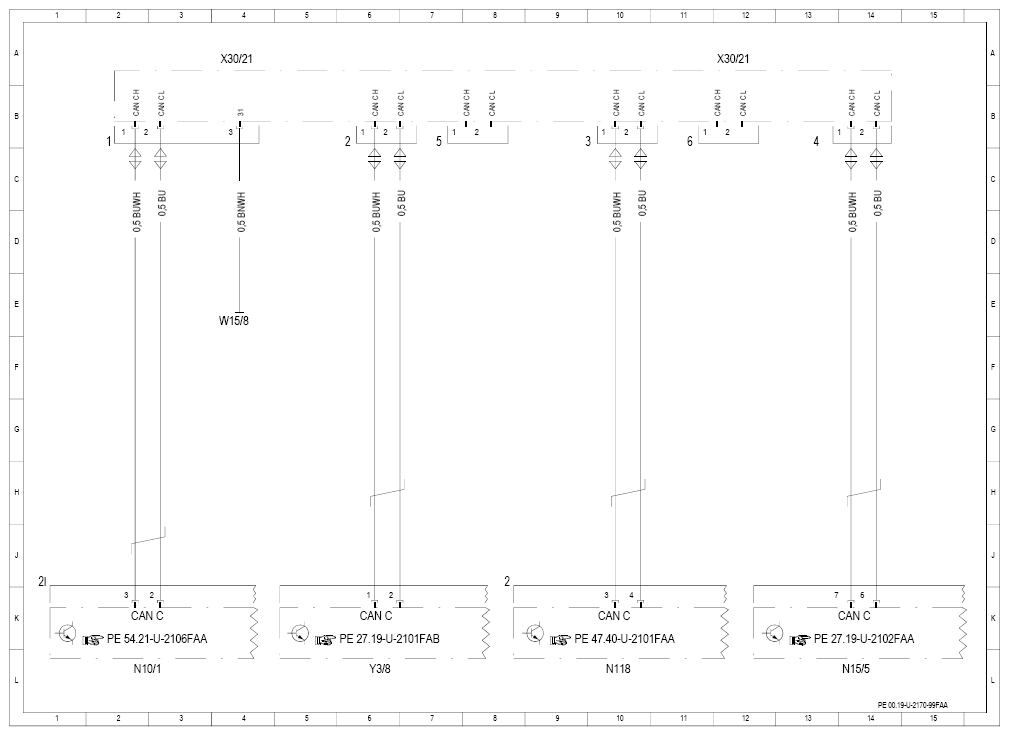

| CAN C |
Drive train CAN |
2 K |
| CAN C |
Drive train CAN |
6 K |
| CAN C |
Drive train CAN |
10 K |
| CAN C |
Drive train CAN |
14 K |
| N10/1 |
Front SAM control module with fuse and relay module |
2 L |
| N118 |
Fuel pump control module |
10 L |
| N15/5 |
Electronic selector lever module control module |
14 L |
| W15/8 |
Ground point (right front footwell CAN) |
4 E |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
4 A |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
12 A |
| Y3/8 |
Fully integrated transmission control control unit |
6 L |
