| A1 |
Instrument cluster |
11 L |

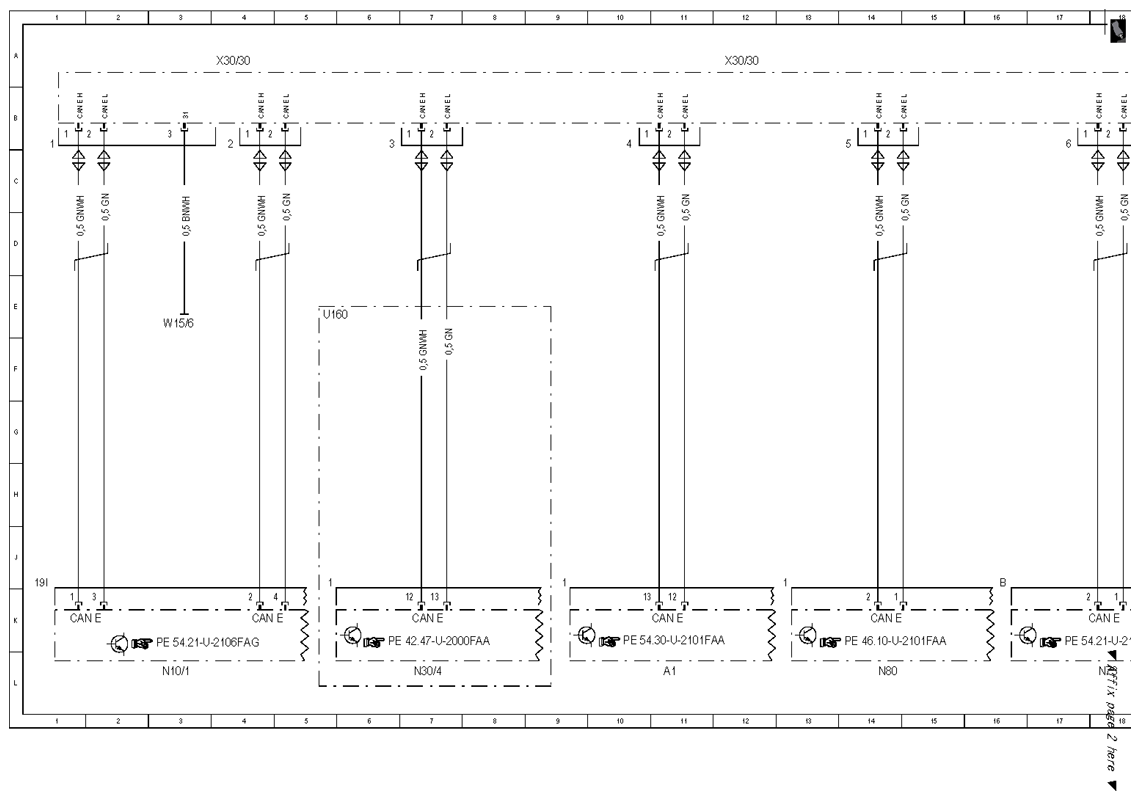

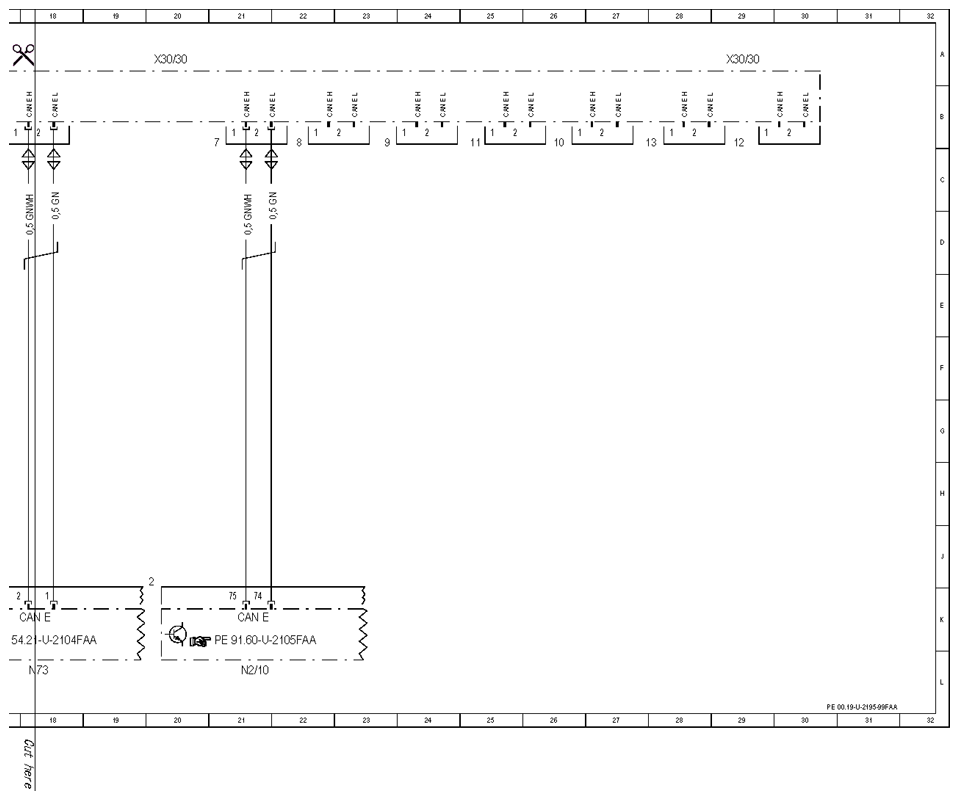

| CAN E |
Chassis CAN |
1 K |
| CAN E |
Chassis CAN |
4 K |
| CAN E |
Chassis CAN |
7 K |
| CAN E |
Chassis CAN |
11 K |
| CAN E |
Chassis CAN |
14 K |
| CAN E |
Chassis CAN |
18 K |
| CAN E |
Chassis CAN |
21 K |
| N10/1 |
Front SAM control module with fuse and relay module |
3 L |
| N2/10 |
Supplemental restraint system control unit |
21 L |
| N30/4 |
Electronic Stability Program control unit |
7 L |
| N73 |
Electronic ignition switch control unit |
18 L |
| N80 |
Steering column module control unit |
14 L |
| U160 |
Valid for ESP without adaptive damping system |
5 E |
| W15/6 |
Ground point (right front footwell CAN) |
3 E |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
4 A |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
12 A |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
20 A |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
29 A |
