| A45 |
Fanfare horns and airbag clock spring contact |
63 C |
| A67 |
Inside rearview mirror |
4 L |
| A67e3 |
Ambient lamp |
4 K |
| E10/1 |
Left center air outlet symbol illumination |
10 L |
| E10/1x1 |
Center vent symbol illumination electrical connector |
10 K |
| E10/2 |
Left front side air outlet symbol illumination |
12 L |
| E10/3 |
Right front side air outlet symbol illumination |
13 L |
| E10/4 |
Right center air outlet symbol illumination |
11 L |
| E10/5 |
Rear air outlet symbol illumination |
14 L |
| E10/5x1 |
Rear vent symbol illumination electrical connector |
14 K |
| E15/3 |
Rear dome lamp |
9 L |
| E17/11 |
Left front door door handle illumination |
42 L |
| E17/12 |
Right front door door handle illumination |
47 L |
| E17/13 |
Left rear door door handle illumination |
53 L |
| E17/14 |
Right rear door door handle illumination |
57 L |
| E17/15 |
Right front footwell lamp |
17 L |
| E17/16 |
Left front footwell lamp |
16 L |
| E17/3 |
Left front door exit and warning lamp |
43 L |
| E17/4 |
Right front door exit and warning lamp |
49 L |
| E17/5 |
Left rear door exit and warning lamp |
55 L |
| E17/6 |
Right rear door exit and warning lamp |
59 L |
| LIN 1 |
Instrument panel LIN |
25 J |
| LIN 1 |
Instrument panel LIN |
26 K |
| LIN 1 |
Instrument panel LIN |
29 C |
| LIN B5 |
Left door LIN |
34 B |

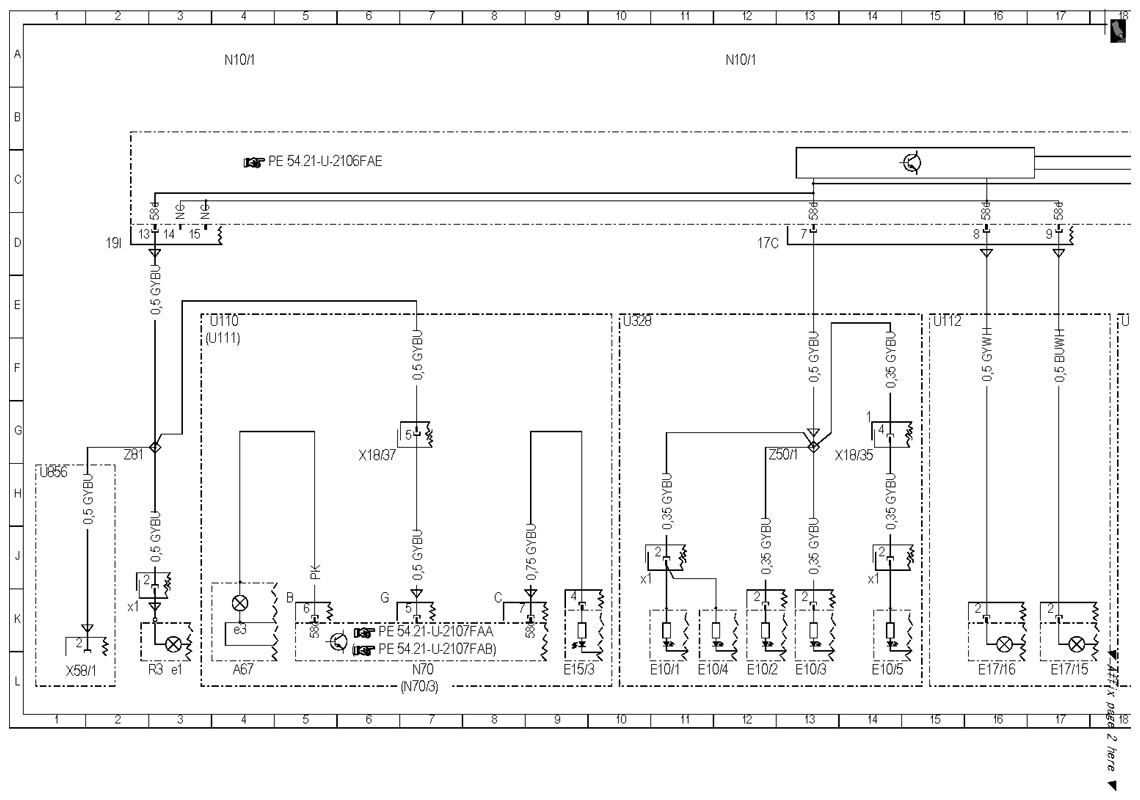

| N10/1 |
Front SAM control module with fuse and relay module |
4 A |
| N10/1 |
Front SAM control module with fuse and relay module |
12 A |
| N10/1 |
Front SAM control module with fuse and relay module |
20 A |
| N10/1 |
Front SAM control module with fuse and relay module |
26 A |
| N10/1f12 |
Fuse 12 |
25 A |
| N10/1f18 |
Fuse 18 |
23 A |

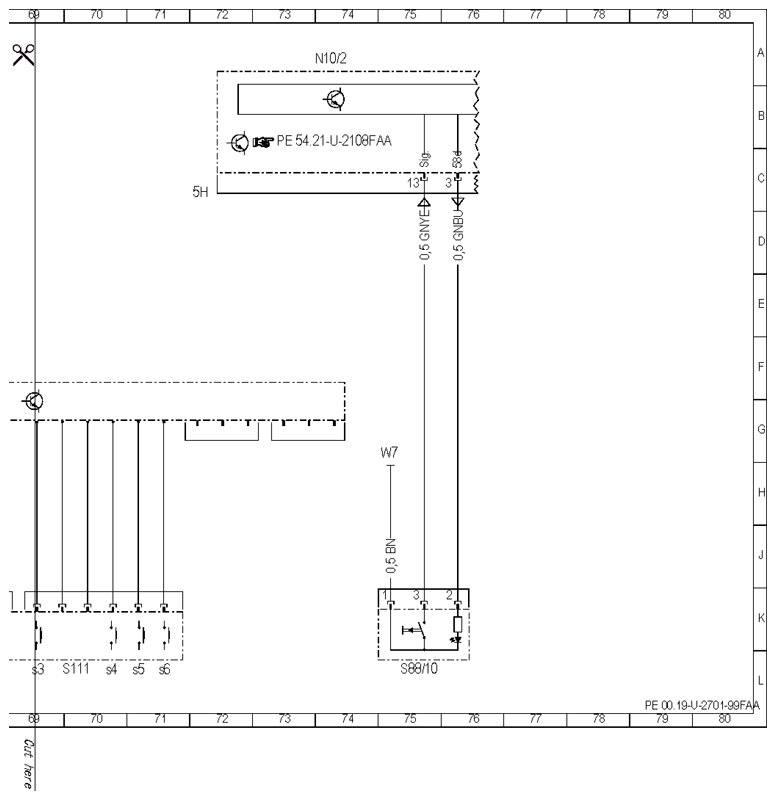

| N10/2 |
Rear SAM control module with fuse and relay module |
73 A |
| N135 |
Steering wheel gear shift signal processing module |
63 G |
| N15/5 |
Electronic selector lever module control module |
61 A |

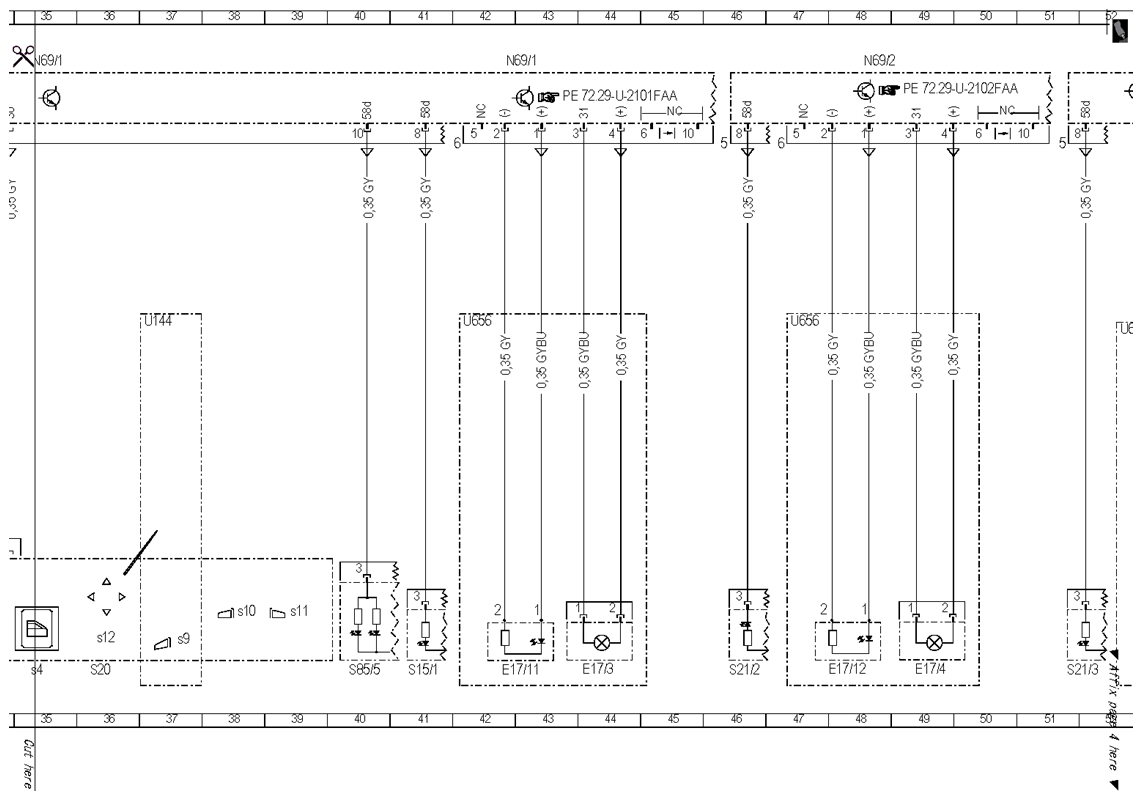

| N69/1 |
Left front door control unit |
35 A |
| N69/1 |
Left front door control unit |
42 A |
| N69/2 |
Right front door control unit |
48 A |

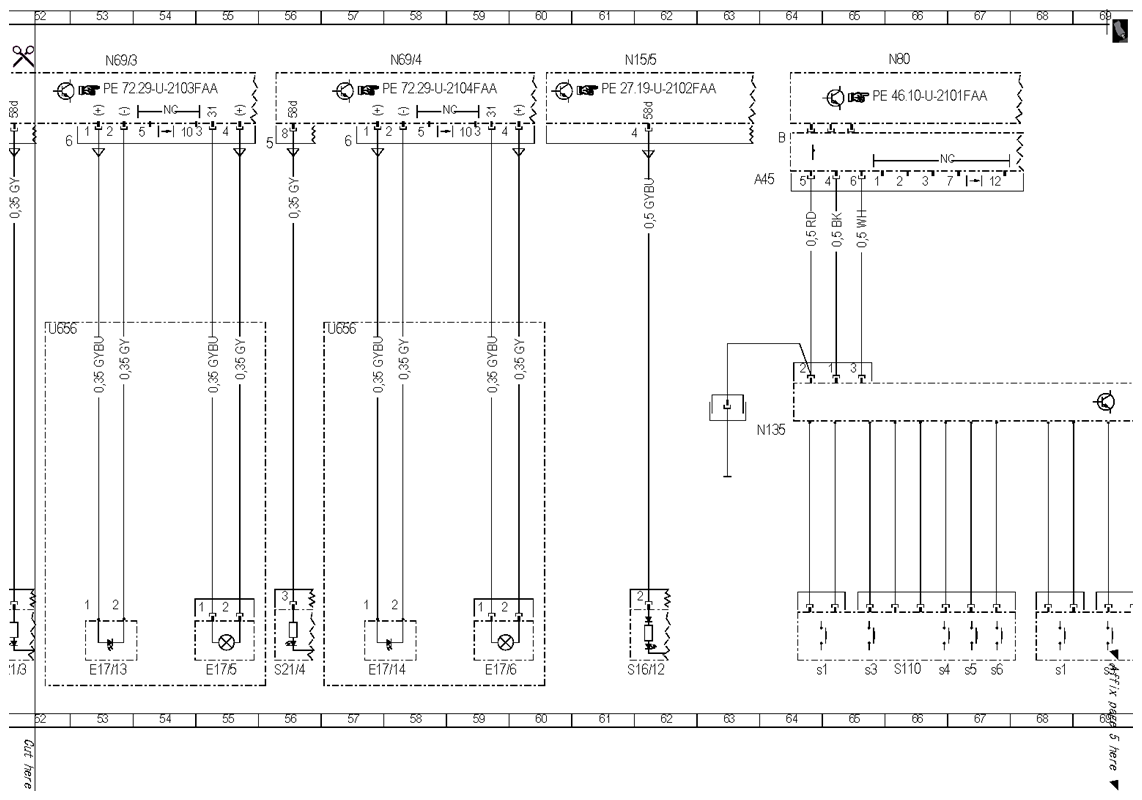

| N69/3 |
Left rear door control unit |
53 A |
| N69/4 |
Right rear door control unit |
58 A |
| N70 |
Overhead control panel control module |
7 L |
| N70/3 |
Overhead control panel electronics |
7 L |
| N70/3 |
Overhead control panel electronics |
20 L |

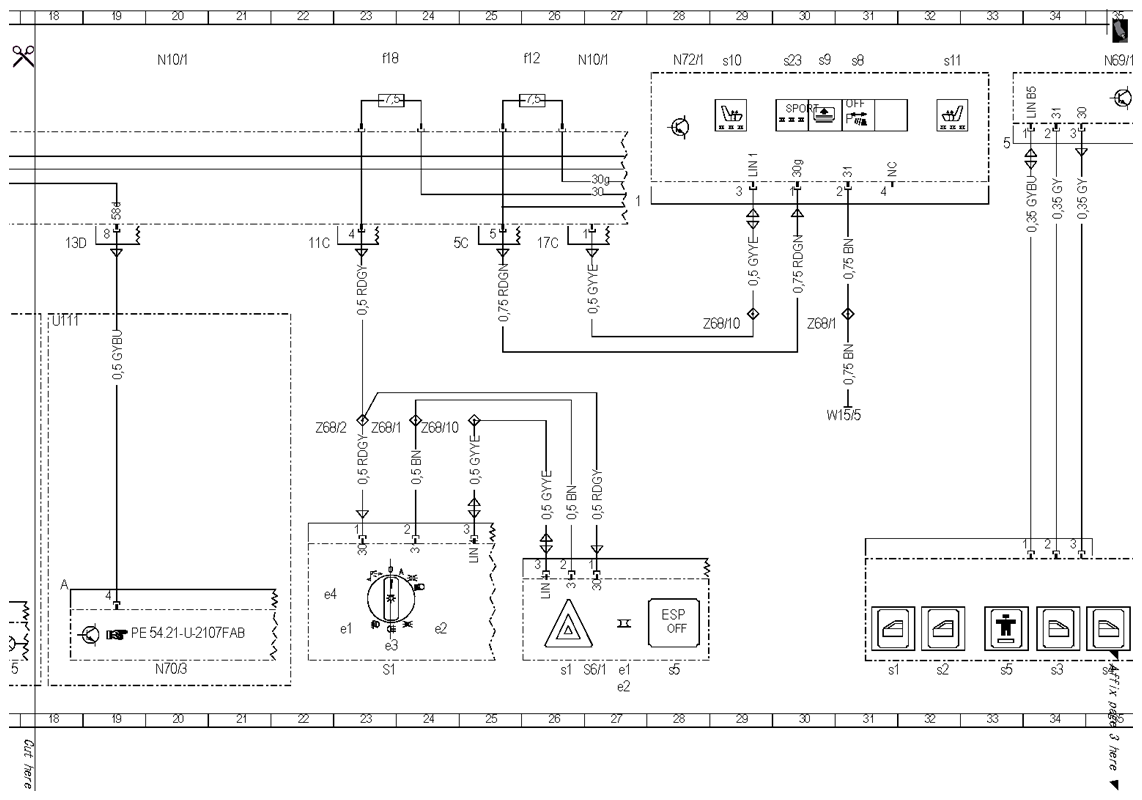

| N72/1 |
Upper control panel control unit |
28 A |
| N72/1s10 |
Left front heated seat button |
28 A |
| N72/1s11 |
Right front heated seat button |
32 A |
| N72/1s23 |
Vehicle dynamics button |
29 A |
| N72/1s8 |
PARKTRONIC button |
30 A |
| N72/1s9 |
Rear window roller sun blind button |
30 A |
| N80 |
Steering column module control unit |
65 A |
| R3 |
Front cigarette lighter with ashtray illumination |
2 L |
| R3e1 |
Ashtray illumination |
3 L |
| R3x1 |
Front cigarette lighter with ashtray illumination electrical connector |
2 K |
| S1 |
Exterior lights switch |
23 L |
| S110 |
Left multifunction steering wheel button group |
66 L |
| S110s1 |
Scroll forward/back button |
64 L |
| S110s3 |
System selection button |
65 L |
| S110s4 |
"Back" and voice control system OFF button |
66 L |
| S110s5 |
Left fanfare horn system button |
67 L |
| S110s6 |
OK button |
67 L |
| S111 |
Right multifunction steering wheel button group |
69 L |
| S111s1 |
Buttons + and - for setting specific functions and volume control |
68 L |
| S111s3 |
Accept/terminate phone call button |
69 L |
| S111s4 |
Voice control system ON button |
70 L |
| S111s5 |
Right fanfare horn system button |
70 L |
| S111s6 |
Mute button |
71 L |
| S15/1 |
Trunk lid release button |
41 L |
| S16/12 |
Automatic transmission transmission mode button |
61 L |
| S1e1 |
Fog lamp indicator lamp |
22 K |
| S1e2 |
Rear fog lamp indicator lamp |
24 K |
| S1e3 |
Standing lamps indicator lamp |
23 L |
| S1e4 |
Switch illumination |
22 K |
| S20 |
Driver-side power window and outside mirror adjustment switch group |
36 L |
| S20s1 |
Left front power window switch |
31 L |
| S20s10 |
Left outside mirror adjustment switch |
38 K |
| S20s11 |
Right outside mirror adjustment switch |
39 K |
| S20s12 |
Outside mirror adjustment switch |
36 L |
| S20s2 |
Right front power window switch |
32 L |
| S20s3 |
Left rear power window switch |
34 L |
| S20s4 |
Right rear power window switch |
34 L |
| S20s5 |
Rear side window child safety lock switch |
33 L |
| S20s9 |
Outside mirror fold-in/fold-out switch |
37 L |
| S21/2 |
Passenger-side power window switch |
46 L |
| S21/3 |
Left rear power window switch |
51 L |
| S21/4 |
Right rear power window switch |
56 L |
| S6/1 |
Instrument panel switch group |
26 L |
| S6/1e1 |
Automatic child seat recognition warning lamp |
27 L |
| S6/1e2 |
Anti-theft alarm system indicator lamp |
27 L |
| S6/1s1 |
Hazard warning flasher switch |
26 L |
| S6/1s5 |
ESP button |
28 L |
| S85/5 |
Left front door central locking interior switch |
40 L |
| S88/10 |
Trunk lid emergency opening switch |
75 L |
| U110 |
Valid for overhead control panel with CAN |
3 E |
| U111 |
Valid for overhead control panel without CAN |
3 F |
| U111 |
Valid for overhead control panel without CAN |
18 E |
| U112 |
Valid for footwell lamps |
15 E |
| U144 |
Valid for outside mirror fold-in/out function. |
37 E |
| U328 |
Valid for air outlet symbol illumination |
10 E |
| U656 |
Valid for interior lights package |
42 E |
| U656 |
Valid for interior lights package |
47 E |
| U656 |
Valid for interior lights package |
52 F |
| U656 |
Valid for interior lights package |
57 F |
| U856 |
Valid for rear socket |
1 H |
| W15/5 |
Left front footwell ground point |
30 G |
| W7 |
Right wheelhouse trunk ground point |
74 H |
| X18/35 |
Instrument panel and vehicle floor electrical connector |
13 H |
| X18/37 |
Emergency call system button electrical connector |
6 H |
| X58/1 |
Vehicle interior power outlet |
1 L |
| Z50/1 |
Circuit 58d instrument panel connector sleeve |
12 H |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
23 G |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
30 E |
| Z68/10 |
Instrument panel LIN connector sleeve |
24 G |
| Z68/10 |
Instrument panel LIN connector sleeve |
28 E |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
22 G |
| Z81 |
Circuit 58d connector sleeve |
2 H |
