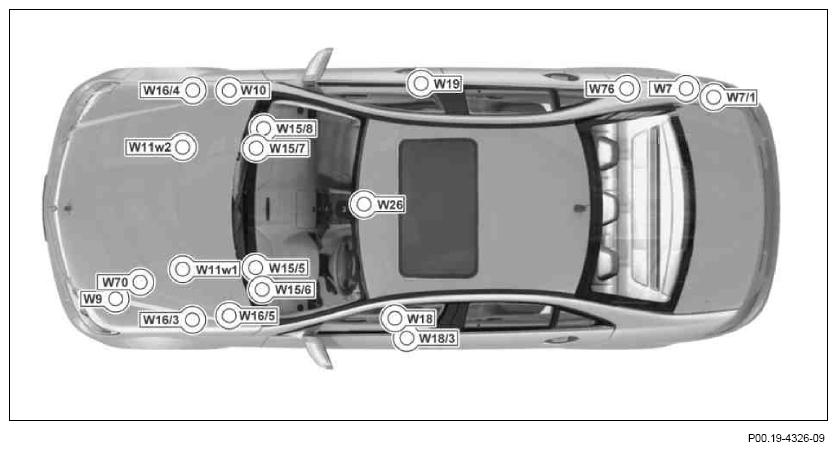

Arrangement and assignment of ground points - GF00.19-U-2000FAA
MODEL 204
| W7 | Right wheelhouse trunk ground point | GF00.19-U-2000-09FAA | |
| W7/1 | Right taillamp trunk ground point | GF00.19-U-2000-09FAA | |
| W9 | Left front ground point (at lamp unit) | GF00.19-U-2000-01FAA | |
| W10 | Right front battery ground point | GF00.19-U-2000-02FAA | |
| W11w1 | Left cylinder bank ground point (engine) | GF00.19-U-2000-01FAA | |
| W11w2 | Right cylinder bank ground point (engine) | GF00.19-U-2000-02FAA | |
| W15/5 | Left front footwell ground point | GF00.19-U-2000-04FAA | |
| W15/6 | Ground point (right front footwell CAN) | GF00.19-U-2000-04FAA | |
| W15/7 | Right front footwell ground point | GF00.19-U-2000-05FAA | |
| W15/8 | Ground point (right front footwell CAN) | GF00.19-U-2000-05FAA | |
| W16/3 | Left major assembly compartment ground point | GF00.19-U-2000-01FAA | |
| W16/4 | Right wheelhouse ground point | GF00.19-U-2000-02FAA | |
| W16/5 | Left major assembly compartment electronics ground point | GF00.19-U-2000-01FAA | |
| W18 | Left front seat crossmember ground point | GF00.19-U-2000-04FAA | |
| W18/3 | Left front seat crossmember ground point 2 | GF00.19-U-2000-04FAA | |
| W19 | Right front seat crossmember ground point | GF00.19-U-2000-05FAA | |
| W26 | Supplemental restraint system (SRS) control unit ground point | GF00.19-U-2000-04FAA | |
| W70 | Electronic Stability Program ground point | GF00.19-U-2000-01FAA | |
| W76 | Fuel pump ground point | GF00.19-U-2000-09FAA | |
| GF00.19-U-2000-01FAA | Arrangement and assignment of ground terminals, engine compartment (left) | GF00.19-U-2000-01FAA | |
| GF00.19-U-2000-02FAA | Arrangement and assignment of ground terminals, engine compartment (right) | GF00.19-U-2000-02FAA | |
| GF00.19-U-2000-04FAA | Arrangement and assignment of ground terminals, interior compartment (left) | GF00.19-U-2000-04FAA | |
| GF00.19-U-2000-05FAA | Arrangement and assignment of ground terminals, interior compartment (right) | GF00.19-U-2000-05FAA | |
| GF00.19-U-2000-09FAA | Arrangement and assignment of ground terminals, trunk (right) | GF00.19-U-2000-09FAA |
