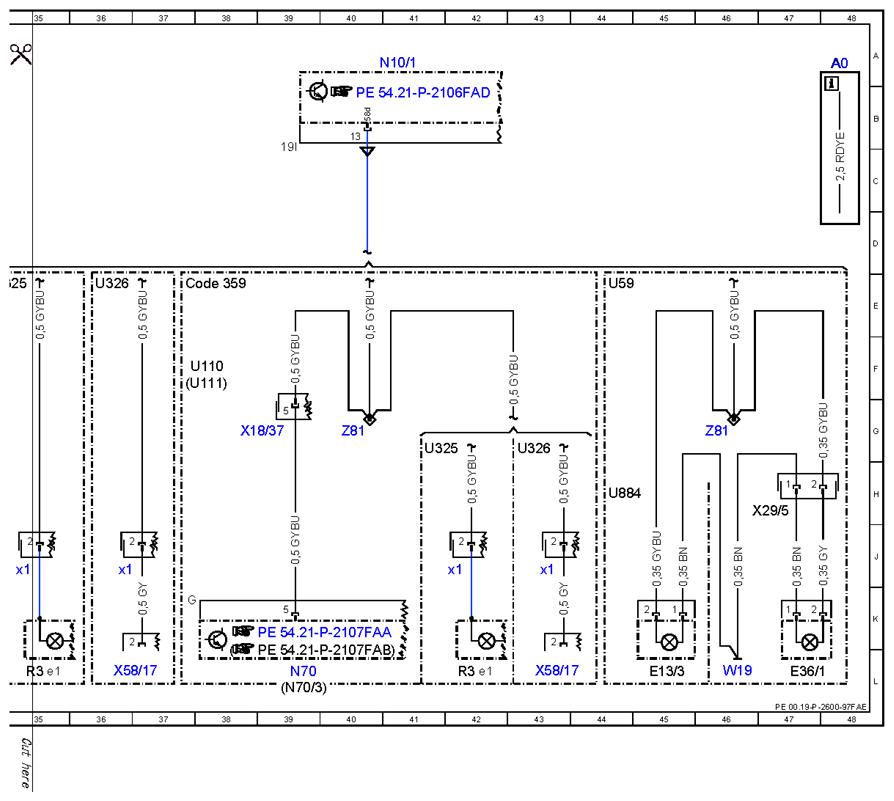

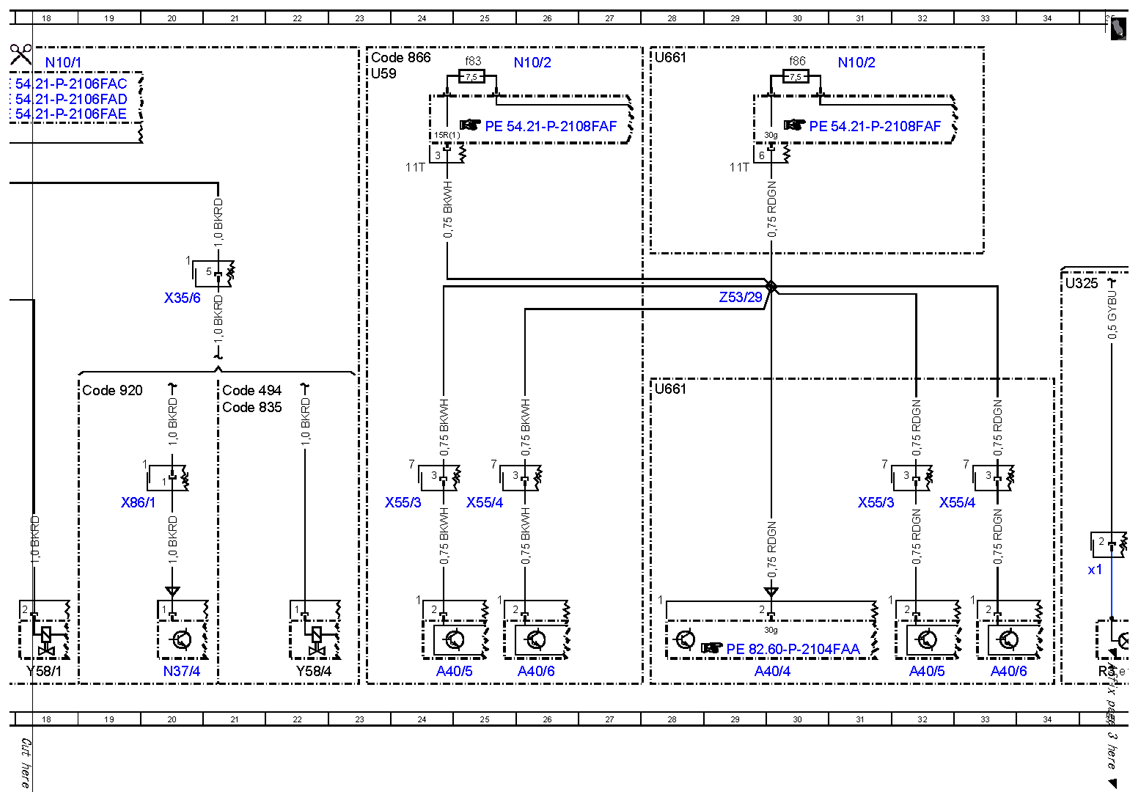

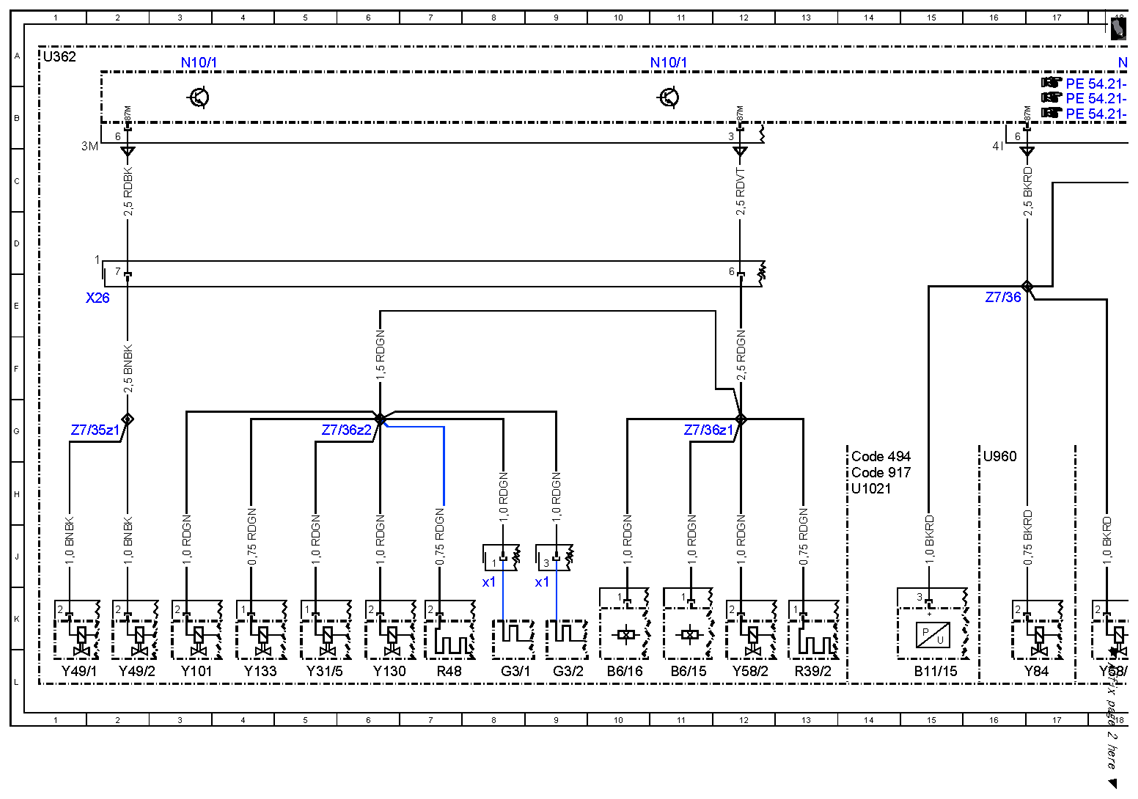

| A0 |
Color code key |
48A |
| A40/4 |
DVD player |
29L |
| A40/5 |
Left rear display |
24L |
| A40/5 |
Left rear display |
32L |
| A40/6 |
Right rear display |
26L |
| A40/6 |
Right rear display |
33L |
| B11/15 |
Radiator sensor for engine diagnosis |
15L |
| B6/15 |
Intake camshaft Hall sensor |
11L |
| B6/16 |
Exhaust camshaft Hall sensor |
10L |
| Code 359 |
TELEAID emergency call system |
37E |
| Code 494 |
USA version |
14G |
| Code 494 |
USA version |
21F |
| Code 835 |
South Korea version |
21G |
| Code 866 |
Rear entertainment preinstallation |
23A |
| Code 917 |
PZEV emission USA |
14H |
| Code 920 |
Gasoline direct injection with stratified charge |
19F |
| E13/3 |
Stowage compartment illumination |
45L |
| E36/1 |
Armrest stowage compartment illumination |
47L |
| G3/1 |
Oxygen sensor downstream of catalytic converter |
8L |
| G3/1x1 |
Electrical connector for oxygen sensor downstream of catalytic converter |
8J |
| G3/2 |
Oxygen sensor upstream of catalytic converter |
9L |
| G3/2x1 |
Electrical connector for oxygen sensor upstream of catalytic converter |
9J |
| N10/1 |
Front SAM control unit with fuse and relay module |
3A |
| N10/1 |
Front SAM control unit with fuse and relay module |
11A |
| N10/1 |
Front SAM control unit with fuse and relay module |
18A |
| N10/1 |
Front SAM control unit with fuse and relay module |
41A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
26A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
31A |
| N10/2f83 |
Fuse 83 |
25A |
| N10/2f86 |
Fuse 86 |
30A |
| N37/4 |
Nitrogen oxides control unit |
20L |
| N70 |
Overhead control panel control unit |
39L |
| N70/3 |
Overhead control panel electronics |
39L |
| R3 |
Front cigarette lighter with ashtray illumination |
35L |
| R3 |
Front cigarette lighter with ashtray illumination |
42L |
| R39/2 |
Full-load operation vent line heater element |
13L |
| R3e1 |
Ashtray illumination |
35L |
| R3e1 |
Ashtray illumination |
42L |
| R3x1 |
Front cigarette lighter with ashtray illumination electrical connector |
35J |
| R3x1 |
Front cigarette lighter with ashtray illumination electrical connector |
42J |
| R48 |
Coolant thermostat heating element |
7L |
| U1021 |
Not valid for gasoline engine with stratified operation |
14H |
| U110 |
Valid for overhead control panel with CAN |
37F |
| U111 |
Valid for overhead control panel without CAN |
37F |
| U325 |
Valid for smoker package |
34E |
| U325 |
Valid for smoker package |
41G |
| U326 |
Valid for nonsmoker package |
36E |
| U326 |
Valid for nonsmoker package |
43G |
| U362 |
Valid for gasoline engine 274 |
1A |
| U59 |
Valid for model 204.9 |
23A |
| U59 |
Valid for model 204.9 |
44E |
| U661 |
Valid for TV and video in rear |
28F |
| U661 |
Valid for TV and video in rear |
28A |
| U884 |
Valid for ambiance illumination |
44H |
| U960 |
Valid for radiator shutters |
16G |
| W19 |
Right front seat crossmember ground point |
46L |
| X18/37 |
Emergency call system button electrical connector |
39G |
| X26 |
Interior and engine wiring harness electrical connector |
2E |
| X29/5 |
Armrest stowage compartment illumination electrical connector |
47H |
| X35/6 |
Instrument panel and module box electrical connector |
20E |
| X55/3 |
Driver seat connector block |
24H |
| X55/3 |
Driver seat connector block |
31H |
| X55/4 |
Front passenger seat connector block |
25H |
| X55/4 |
Front passenger seat connector block |
33H |
| X58/17 |
Front vehicle interior power outlet |
37L |
| X58/17 |
Front vehicle interior power outlet |
43L |
| X58/17x1 |
Electrical connector/front vehicle interior socket |
36J |
| X58/17x1 |
Electrical connector/front vehicle interior socket |
43J |
| X86/1 |
Nitrogen oxides control unit electrical connector |
19H |
| Y101 |
Divert air switchover valve |
3L |
| Y130 |
Engine oil pump valve |
6L |
| Y133 |
Coolant pump switchover valve |
4L |
| Y31/5 |
Boost pressure control pressure transducer |
5L |
| Y49/1 |
Intake camshaft solenoid |
1L |
| Y49/2 |
Exhaust camshaft solenoid |
2L |
| Y58/1 |
Purge control valve |
18L |
| Y58/2 |
Partial load operation crankcase ventilation valve |
12L |
| Y58/4 |
Activated charcoal filter shutoff valve |
22L |
| Y84 |
Radiator shutters actuator |
17L |
| Z53/29 |
Rear entertainment system circuit 30 connector sleeve |
29E |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
2G |
| Z7/36 |
Circuit 87 M2e connector sleeve |
16E |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
11G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
6G |
| Z81 |
Circuit 58d connector sleeve |
40G |
| Z81 |
Circuit 58d connector sleeve |
46G |
