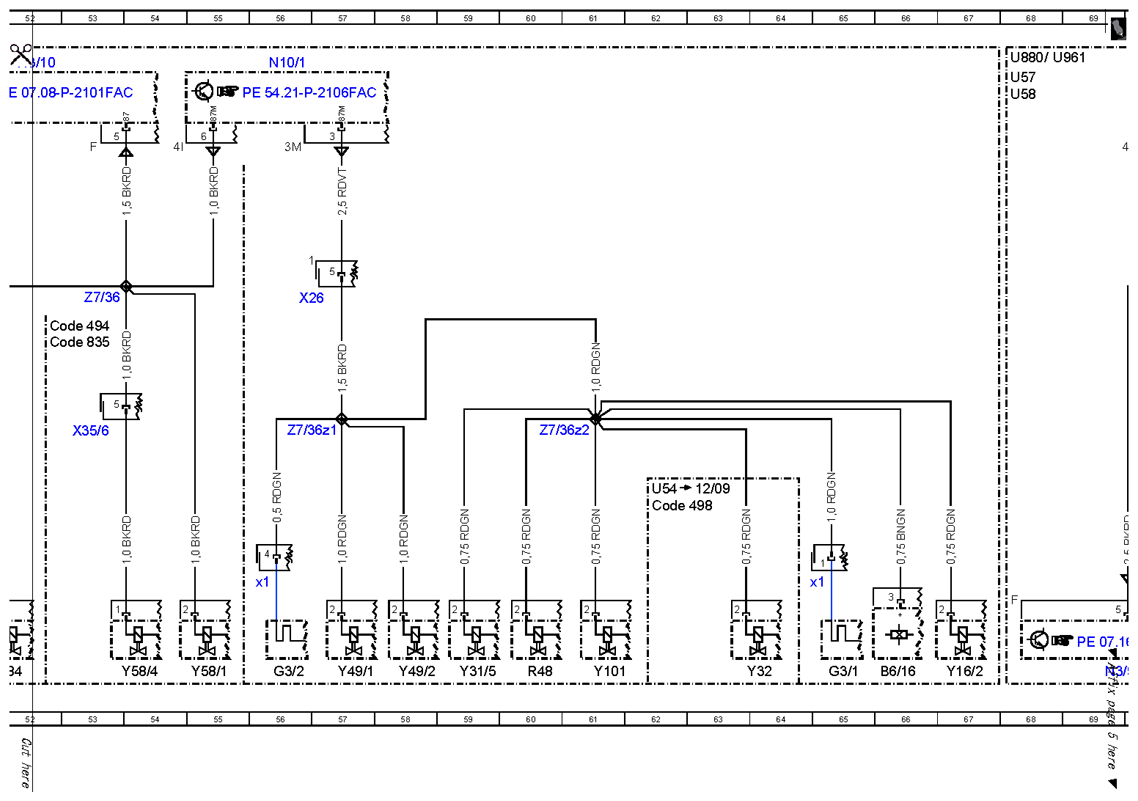

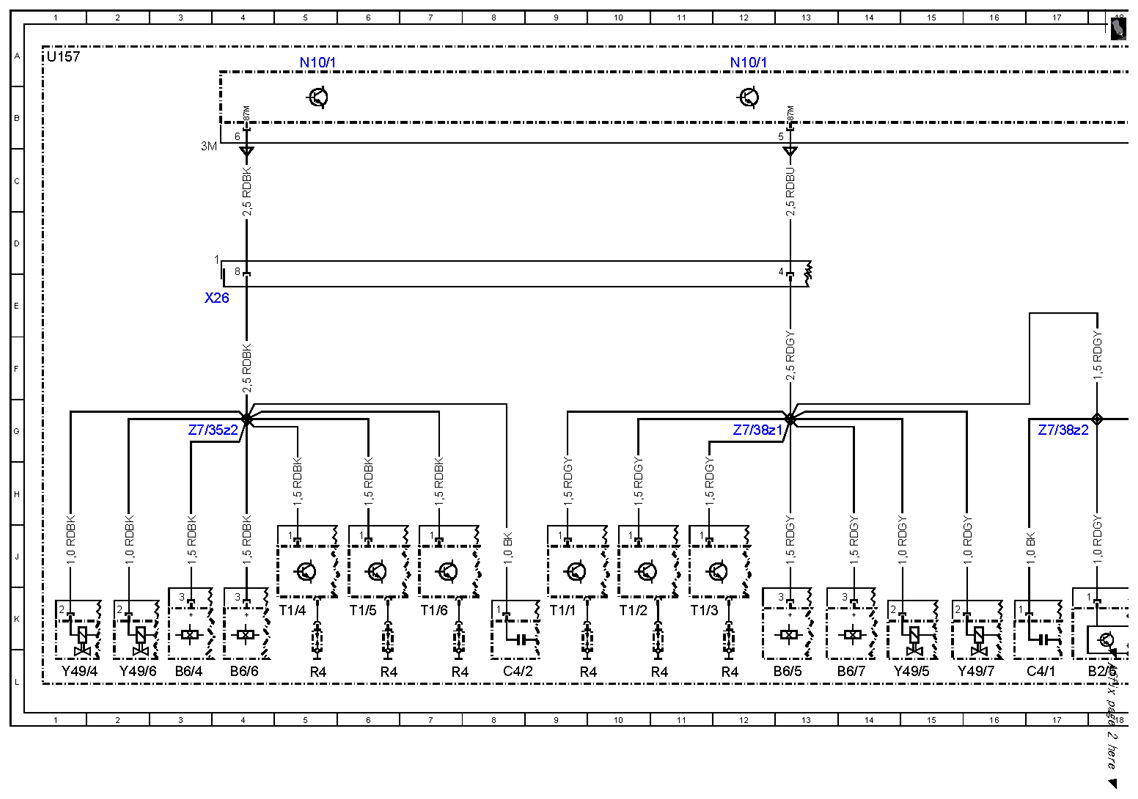

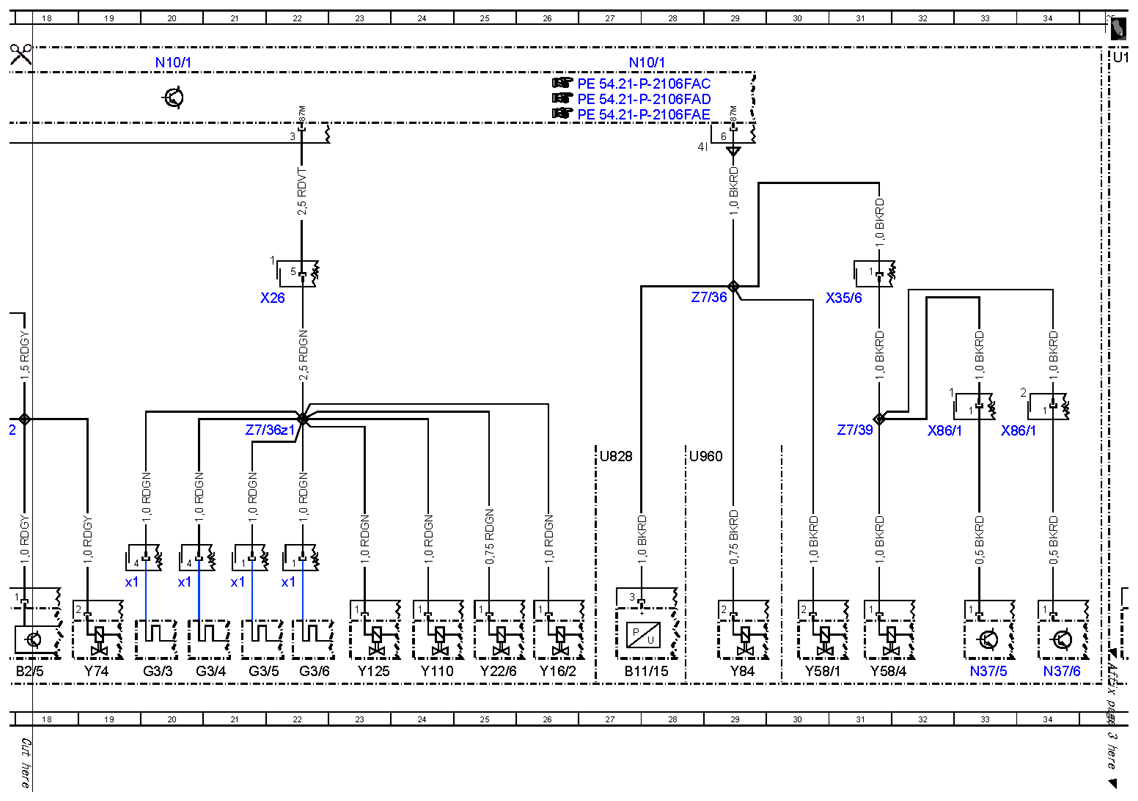

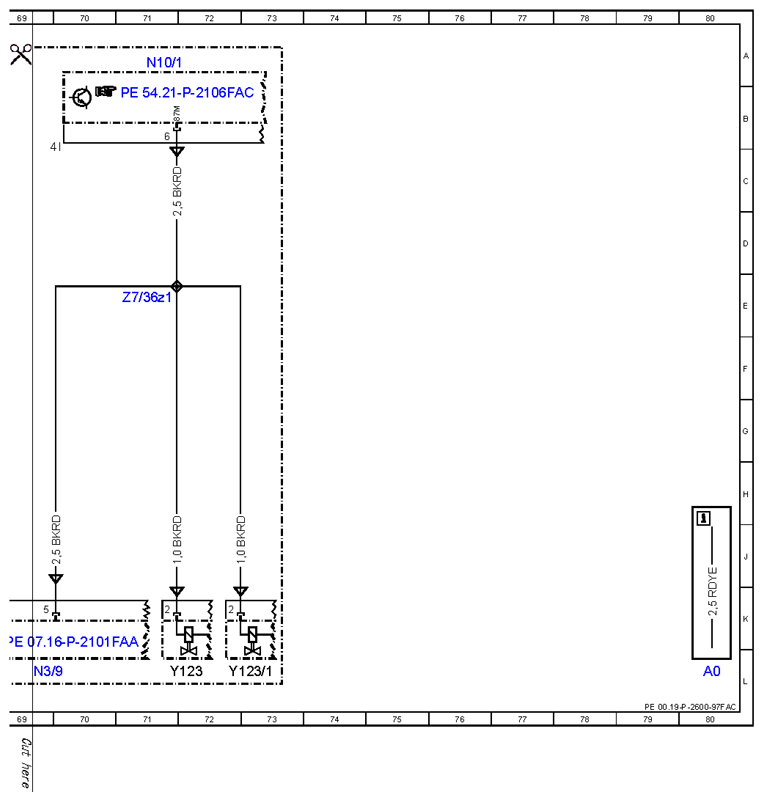

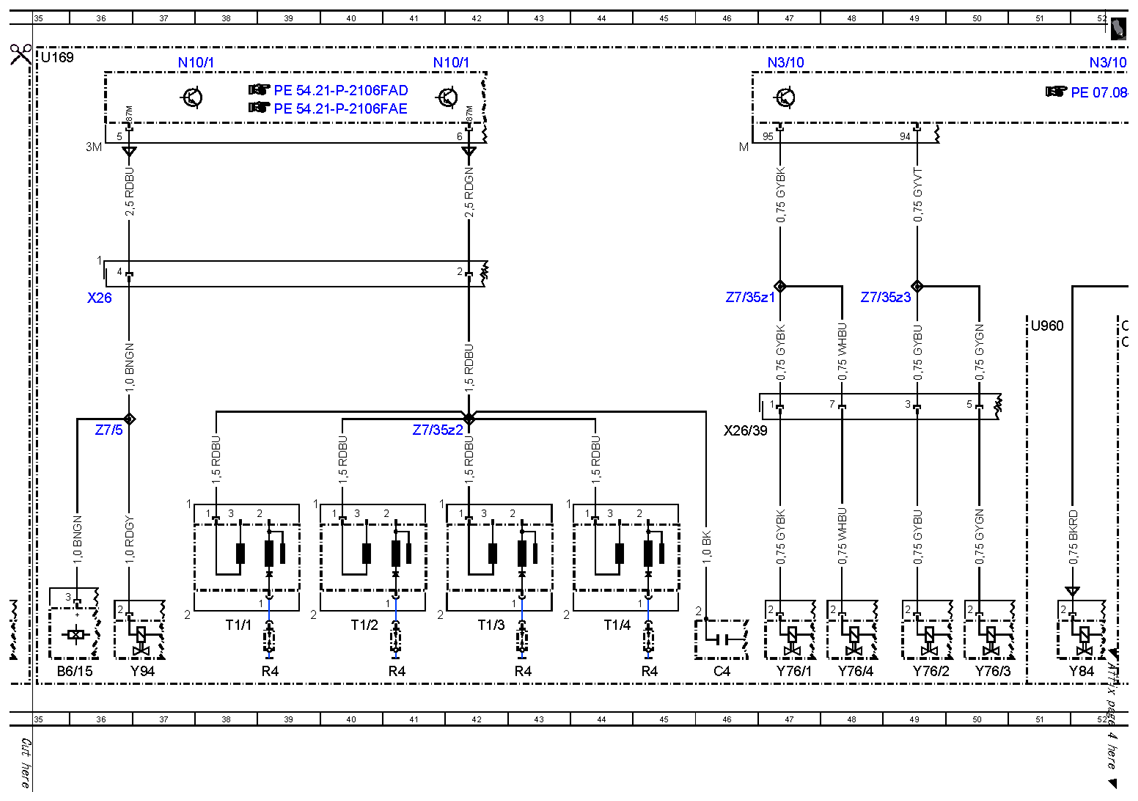

| A0 |
Color code key |
80L |
| B11/15 |
Radiator sensor for engine diagnosis |
27L |
| B2/5 |
Hot film mass air flow sensor |
18L |
| B6/15 |
Intake camshaft Hall sensor |
35L |
| B6/16 |
Exhaust camshaft Hall sensor |
66L |
| B6/4 |
Left intake camshaft Hall sensor |
3L |
| B6/5 |
Right intake camshaft Hall sensor |
13L |
| B6/6 |
Left exhaust camshaft Hall sensor |
4L |
| B6/7 |
Right exhaust camshaft Hall sensor |
14L |
| C4 |
Interference suppression capacitor |
46L |
| C4/1 |
Radio interference suppression capacitor 1 |
17L |
| C4/2 |
Radio interference suppression capacitor 2 |
8L |
| Code 494 |
USA version |
52E |
| Code 498 |
Japan version |
62H |
| Code 835 |
South Korea version |
52F |
| G3/1 |
Oxygen sensor downstream of catalytic converter |
65L |
| G3/1x1 |
Electrical connector for oxygen sensor downstream of catalytic converter |
65J |
| G3/2 |
Oxygen sensor upstream of catalytic converter |
56L |
| G3/2x1 |
Electrical connector for oxygen sensor upstream of catalytic converter |
56J |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
20L |
| G3/3x1 |
Electrical connector for left oxygen sensor upstream of catalytic converter |
19J |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
21L |
| G3/4x1 |
Electrical connector for right oxygen sensor upstream of catalytic converter |
20J |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
21L |
| G3/5x1 |
Electrical connector for left oxygen sensor downstream of catalytic converter |
21J |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
22L |
| G3/6x1 |
Electrical connector for right oxygen sensor downstream of catalytic converter |
22J |
| N10/1 |
Front SAM control unit with fuse and relay module |
5A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
27A |
| N10/1 |
Front SAM control unit with fuse and relay module |
37A |
| N10/1 |
Front SAM control unit with fuse and relay module |
41A |
| N10/1 |
Front SAM control unit with fuse and relay module |
56A |
| N10/1 |
Front SAM control unit with fuse and relay module |
71A |
| N3/10 |
ME-SFI [ME] control unit |
47A |
| N3/10 |
ME-SFI [ME] control unit |
52A |
| N3/9 |
CDI control unit |
69L |
| N37/5 |
Left nitrogen oxides control unit |
33L |
| N37/6 |
Right nitrogen oxides control unit |
34L |
| R4 |
Spark plugs |
41L |
| R4 |
Spark plugs |
5L |
| R4 |
Spark plugs |
7L |
| R4 |
Spark plugs |
6L |
| R4 |
Spark plugs |
11L |
| R4 |
Spark plugs |
9L |
| R4 |
Spark plugs |
12L |
| R4 |
Spark plugs |
39L |
| R4 |
Spark plugs |
43L |
| R4 |
Spark plugs |
45L |
| R48 |
Coolant thermostat heating element |
60L |
| T1/1 |
Cylinder 1 ignition coil |
9K |
| T1/1 |
Cylinder 1 ignition coil |
38K |
| T1/2 |
Cylinder 2 ignition coil |
10K |
| T1/2 |
Cylinder 2 ignition coil |
40K |
| T1/3 |
Cylinder 3 ignition coil |
11K |
| T1/3 |
Cylinder 3 ignition coil |
42K |
| T1/4 |
Cylinder 4 ignition coil |
5K |
| T1/4 |
Cylinder 4 ignition coil |
44K |
| T1/5 |
Cylinder 5 ignition coil |
6K |
| T1/6 |
Cylinder 6 ignition coil |
7K |
| U157 |
Valid for combustion engine 272 DE |
1A |
| U169 |
Valid for gasoline engine 271 DE |
35A |
| U54 |
Valid for all except Japan |
62H |
| U57 |
Valid for model 204.2 |
68A |
| U58 |
Valid for model 204.0 |
68B |
| U828 |
Valid for SULEV |
27G |
| U880 |
Valid for diesel engine 642 |
68A |
| U960 |
Valid for radiator shutters |
28G |
| U960 |
Valid for radiator shutters |
51E |
| U961 |
Valid for engine mount |
68A |
| X26 |
Interior and engine wiring harness electrical connector |
4E |
| X26 |
Interior and engine wiring harness electrical connector |
22E |
| X26 |
Interior and engine wiring harness electrical connector |
36E |
| X26 |
Interior and engine wiring harness electrical connector |
57E |
| X26/39 |
Gasoline engine electrical connector |
46G |
| X35/6 |
Instrument panel and module box electrical connector |
31E |
| X35/6 |
Instrument panel and module box electrical connector |
53G |
| X86/1 |
Nitrogen oxides control unit electrical connector |
32G |
| X86/1 |
Nitrogen oxides control unit electrical connector |
34G |
| Y101 |
Divert air switchover valve |
61L |
| Y110 |
Coolant thermostat |
24L |
| Y123 |
Left switchable engine mount |
72L |
| Y123/1 |
Right switchable engine mount |
72L |
| Y125 |
Low-temperature circuit shutoff valve |
23L |
| Y16/2 |
Heating system shutoff valve |
26L |
| Y16/2 |
Heating system shutoff valve |
67L |
| Y22/6 |
Intake manifold switchover valve |
25L |
| Y31/5 |
Boost pressure control pressure transducer |
59L |
| Y32 |
Air pump switchover valve |
64L |
| Y49/1 |
Intake camshaft solenoid |
57L |
| Y49/2 |
Exhaust camshaft solenoid |
58L |
| Y49/4 |
Left intake camshaft solenoid |
1L |
| Y49/5 |
Right intake camshaft solenoid |
15L |
| Y49/6 |
Left exhaust camshaft solenoid |
2L |
| Y49/7 |
Right exhaust camshaft solenoid |
16L |
| Y58/1 |
Purge control valve |
30L |
| Y58/1 |
Purge control valve |
55L |
| Y58/4 |
Activated charcoal filter shutoff valve |
31L |
| Y58/4 |
Activated charcoal filter shutoff valve |
54L |
| Y74 |
Pressure regulator valve |
19L |
| Y76/1 |
Cylinder 1 fuel injector |
47L |
| Y76/2 |
Cylinder 2 fuel injector |
49L |
| Y76/3 |
Cylinder 3 fuel injector |
50L |
| Y76/4 |
Cylinder 4 fuel injector |
48L |
| Y84 |
Radiator shutters actuator |
29L |
| Y84 |
Radiator shutters actuator |
52L |
| Y94 |
Quantity control valve |
37L |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
46E |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
4G |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
41G |
| Z7/35z3 |
Circuit 87 M1e connector sleeve |
49E |
| Z7/36 |
Circuit 87 M2e connector sleeve |
29E |
| Z7/36 |
Circuit 87 M2e connector sleeve |
53E |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
22G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
56G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
71E |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
61G |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
12G |
| Z7/38z2 |
Circuit 87 M1i connector sleeve |
17G |
| Z7/39 |
Circuit 87 M2i connector sleeve |
31G |
| Z7/5 |
Circuit 87 connector sleeve |
36G |
