Wiring Diagram Solder Points/Z-Connector Sleeves - PE00.19-P-2600-97FAA

Code: Designation: Position:
A0 Color code key 80L
B2/5 Hot film mass air flow sensor 41L
B2/6 Left hot film MAF sensor 57L
B2/7 Right hot film MAF sensor 63L
B6/15 Intake camshaft Hall sensor 11L
B6/4 Left intake camshaft Hall sensor 30L
B6/4 Left intake camshaft Hall sensor 53L
B6/5 Right intake camshaft Hall sensor 42L
B6/5 Right intake camshaft Hall sensor 49L
B6/6 Left exhaust camshaft Hall sensor 31L
B6/6 Left exhaust camshaft Hall sensor 54L
B6/7 Right exhaust camshaft Hall sensor 43L
B6/7 Right exhaust camshaft Hall sensor 50L
C4 Interference suppression capacitor 24L
C4/1 Radio interference suppression capacitor 1 40L
C4/1 Radio interference suppression capacitor 1 78L
C4/2 Radio interference suppression capacitor 2 36L
C4/2 Radio interference suppression capacitor 2 72L
N10/1 Front SAM control unit with fuse and relay module 14A
N10/1 Front SAM control unit with fuse and relay module 34A
N10/1 Front SAM control unit with fuse and relay module 55A
N10/1 Front SAM control unit with fuse and relay module 61A
N10/1 Front SAM control unit with fuse and relay module 3L
N10/1 Front SAM control unit with fuse and relay module 68A
N3/9 CDI control unit 4A
R4 Spark plugs 19L
R4 Spark plugs 17L
R4 Spark plugs 23L
R4 Spark plugs 21L
R4 Spark plugs 35L
R4 Spark plugs 38L
R4 Spark plugs 37L
R4 Spark plugs 33L
R4 Spark plugs 34L
R4 Spark plugs 39L
R4 Spark plugs 68L
R4 Spark plugs 69L
R4 Spark plugs 76L
R4 Spark plugs 75L
R4 Spark plugs 74L
R4 Spark plugs 70L
R4 Spark plugs 71L
R4 Spark plugs 77L
T1/1 Cylinder 1 ignition coil 16K
T1/1 Cylinder 1 ignition coil 36K
T1/1 Cylinder 1 ignition coil 68K
T1/2 Cylinder 2 ignition coil 18K
T1/2 Cylinder 2 ignition coil 38K
T1/2 Cylinder 2 ignition coil 69K
T1/3 Cylinder 3 ignition coil 39K
T1/3 Cylinder 3 ignition coil 20K
T1/3 Cylinder 3 ignition coil 70K
T1/4 Cylinder 4 ignition coil 32K
T1/4 Cylinder 4 ignition coil 22K
T1/4 Cylinder 4 ignition coil 71K
T1/5 Cylinder 5 ignition coil 33K
T1/5 Cylinder 5 ignition coil 73K
T1/6 Cylinder 6 ignition coil 34K
T1/6 Cylinder 6 ignition coil 74K
T1/7 Cylinder 7 ignition coil 75K
T1/8 Cylinder 8 ignition coil 77K
U152 Valid for gasoline engine 156 49A
U244 Valid for BlueTEC 2B
U244 Valid for BlueTEC 8H
U739 Valid for gasoline engine 271 continuous fuel injection system (electronic) 11A
U819 Valid for gasoline engine 272 25A
U880 Valid for diesel engine 642 1A
U880 Valid for diesel engine 642 7H
U936 Valid for increased engine power 9F
U937 Valid for all except increased engine power 10F
U948 Valid for diesel engine 651 1A
U948 Valid for diesel engine 651 1B
U948 Valid for diesel engine 651 7H
U948 Valid for diesel engine 651 7H
U961 Valid for engine mount 7D
U961 Valid for engine mount 5F
X26 Interior and engine wiring harness electrical connector 13E
X26 Interior and engine wiring harness electrical connector 31E
X26 Interior and engine wiring harness electrical connector 54E
Y123 Left switchable engine mount 9L
Y123 Left switchable engine mount 5L
Y123/1 Right switchable engine mount 10L
Y123/1 Right switchable engine mount 6L
Y49/4 Left intake camshaft solenoid 28L
Y49/4 Left intake camshaft solenoid 55L
Y49/5 Right intake camshaft solenoid 44L
Y49/5 Right intake camshaft solenoid 51L
Y49/6 Left exhaust camshaft solenoid 29L
Y49/6 Left exhaust camshaft solenoid 56L
Y49/7 Right exhaust camshaft solenoid 45L
Y49/7 Right exhaust camshaft solenoid 52L
Y62/1 Cylinder 1 injection valve 12L
Y62/1 Cylinder 1 injection valve 46L
Y62/1 Cylinder 1 injection valve 64L
Y62/2 Cylinder 2 injection valve 13L
Y62/2 Cylinder 2 injection valve 47L
Y62/2 Cylinder 2 injection valve 65L
Y62/3 Cylinder 3 injection valve 14L
Y62/3 Cylinder 3 injection valve 48L
Y62/3 Cylinder 3 injection valve 66L
Y62/4 Cylinder 4 injection valve 15L
Y62/4 Cylinder 4 injection valve 25L
Y62/4 Cylinder 4 injection valve 67L
Y62/5 Cylinder 5 injection valve 26L
Y62/5 Cylinder 5 injection valve 58L
Y62/6 Cylinder 6 injection valve 27L
Y62/6 Cylinder 6 injection valve 59L
Y62/7 Cylinder 7 injection valve 60L
Y62/8 Cylinder 8 injection valve 61L
Z57/17 Engine compartment engine mount solder point 9G
Z7/35 Circuit 87 M1e connector sleeve 2G
Z7/35z1 Circuit 87 M1e connector sleeve 13G
Z7/35z1 Circuit 87 M1e connector sleeve 27G
Z7/35z1 Circuit 87 M1e connector sleeve 54G
Z7/35z2 Circuit 87 M1e connector sleeve 20G
Z7/35z2 Circuit 87 M1e connector sleeve 31G
Z7/35z2 Circuit 87 M1e connector sleeve 50G
Z7/35z3 Circuit 87 M1e connector sleeve 59G
Z7/35z4 Circuit 87 M1e connector sleeve 64G
Z7/36z1 Circuit 87 M2e connector sleeve 6G
Z7/38z1 Circuit 87 M1i connector sleeve 43G
Z7/38z2 Circuit 87 M1i connector sleeve 37G
Z7/98z1 Circuit 87 M3e connector sleeve 70G
Z7/98z2 Circuit 87 M3e connector sleeve 75G
Z7/98z3 Circuit 87 M3e connector sleeve 70E

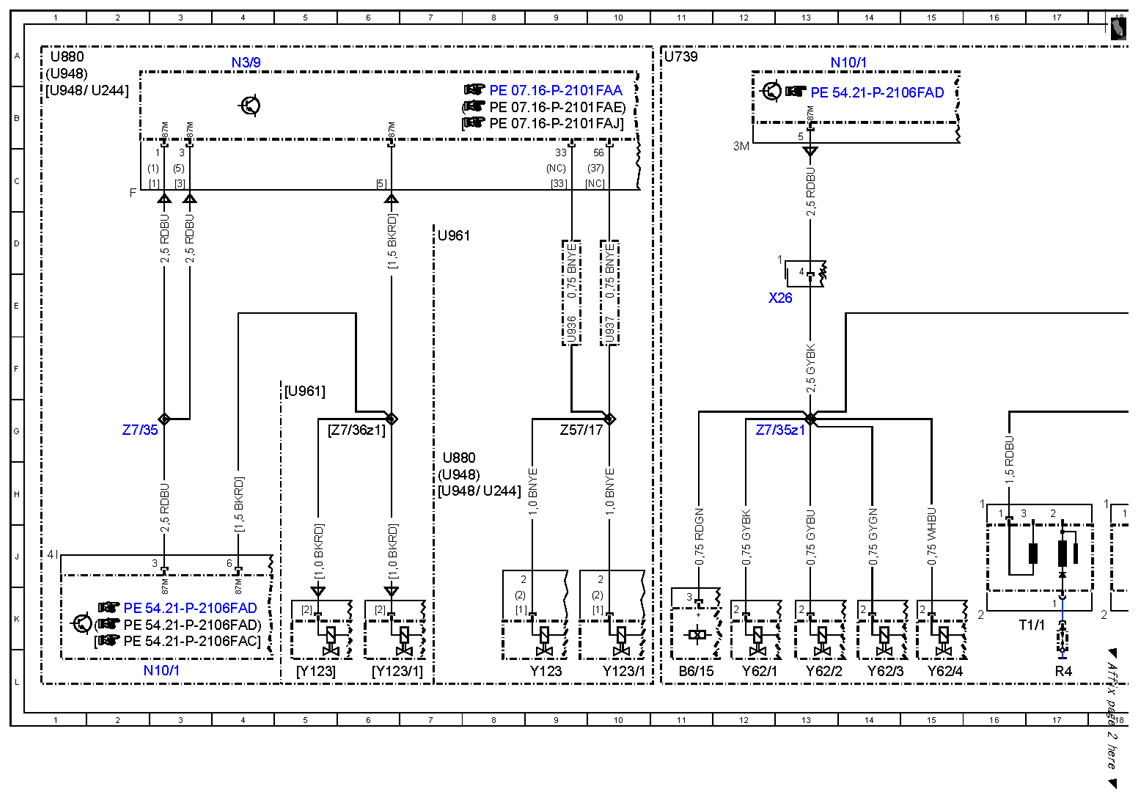

Fig 1: Solder Points/Z-Connector Sleeves Wiring Diagram (1 Of 5)
G10080163Courtesy of MERCEDES-BENZ USA

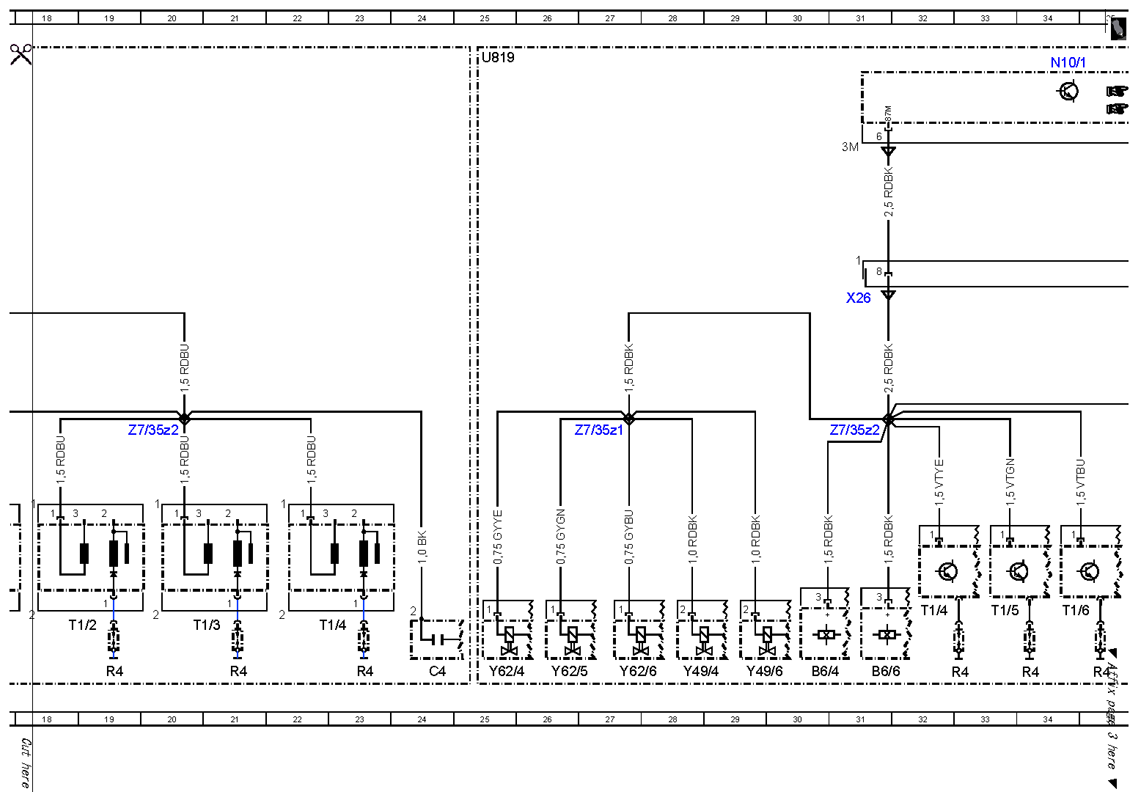

Fig 2: Solder Points/Z-Connector Sleeves Wiring Diagram (2 Of 5)
G10080164Courtesy of MERCEDES-BENZ USA

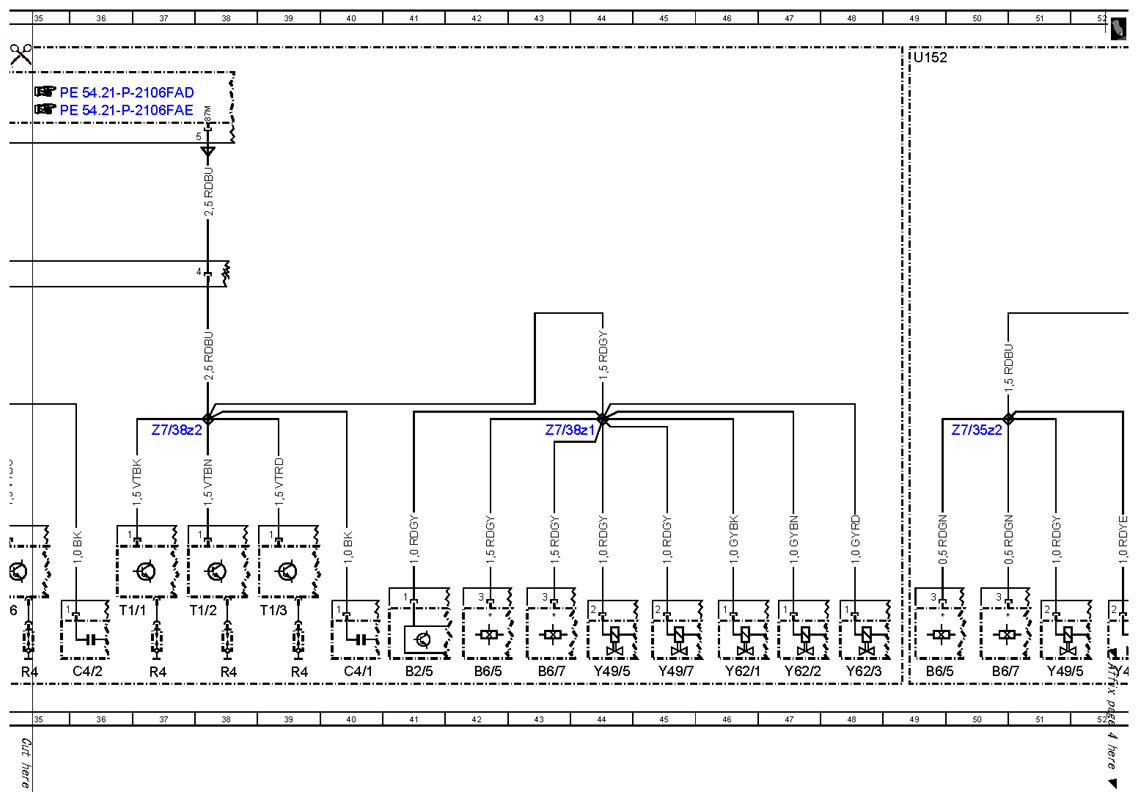

Fig 3: Solder Points/Z-Connector Sleeves Wiring Diagram (3 Of 5)
G10080165Courtesy of MERCEDES-BENZ USA

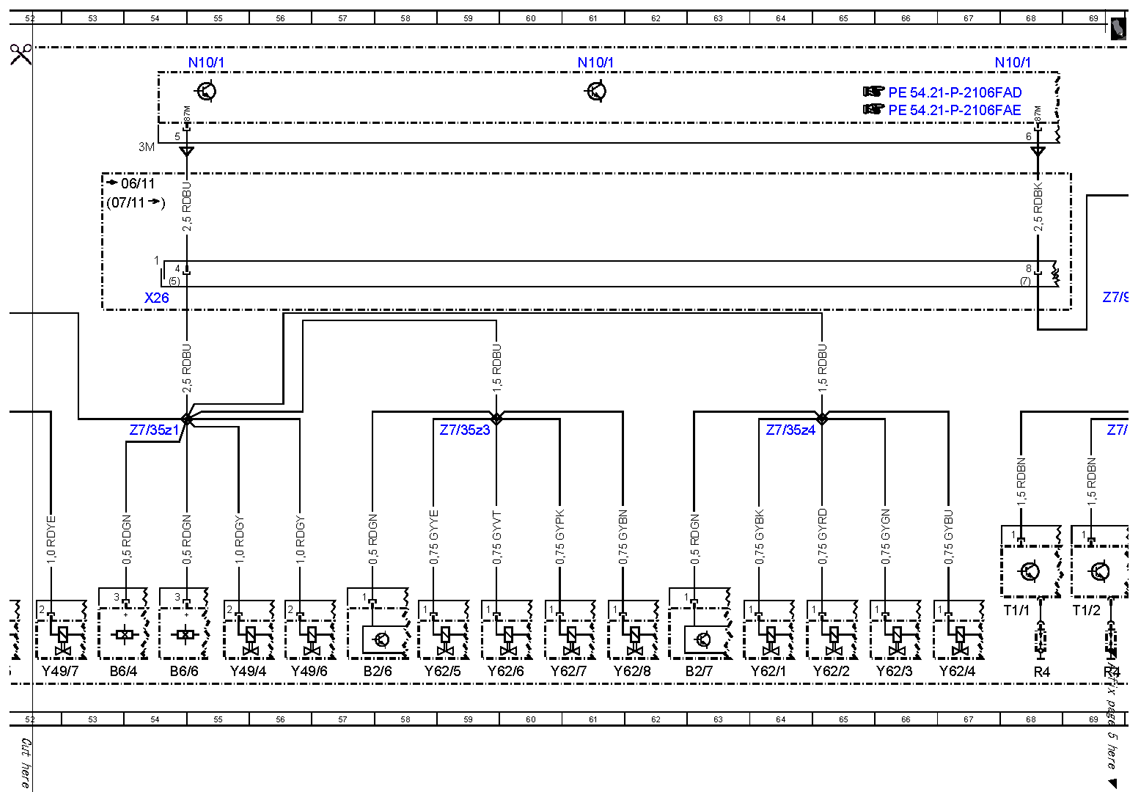

Fig 4: Solder Points/Z-Connector Sleeves Wiring Diagram (4 Of 5)
G10080166Courtesy of MERCEDES-BENZ USA

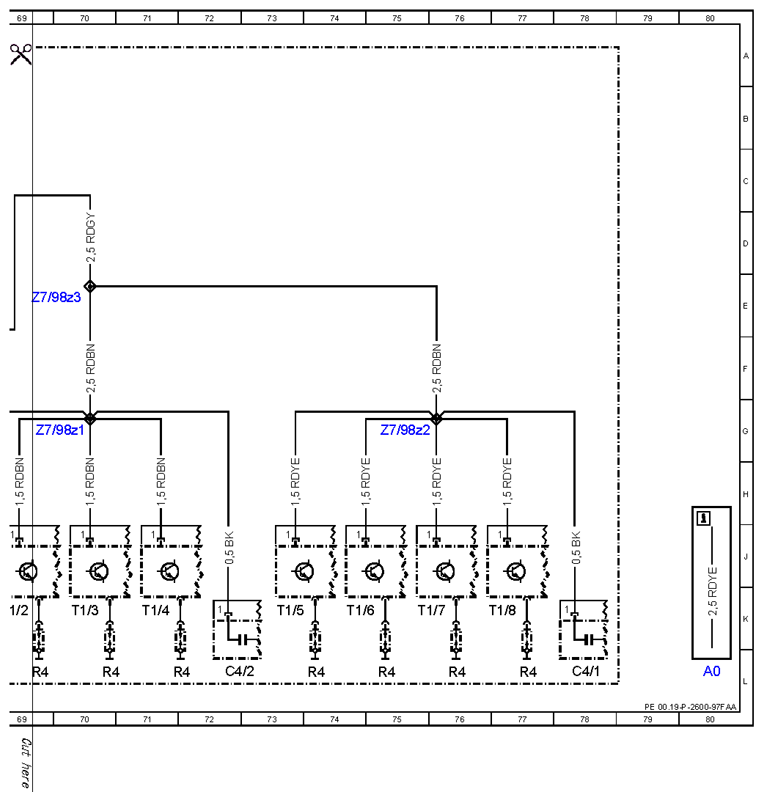

Fig 5: Solder Points/Z-Connector Sleeves Wiring Diagram (5 Of 5)
G10080167Courtesy of MERCEDES-BENZ USA
