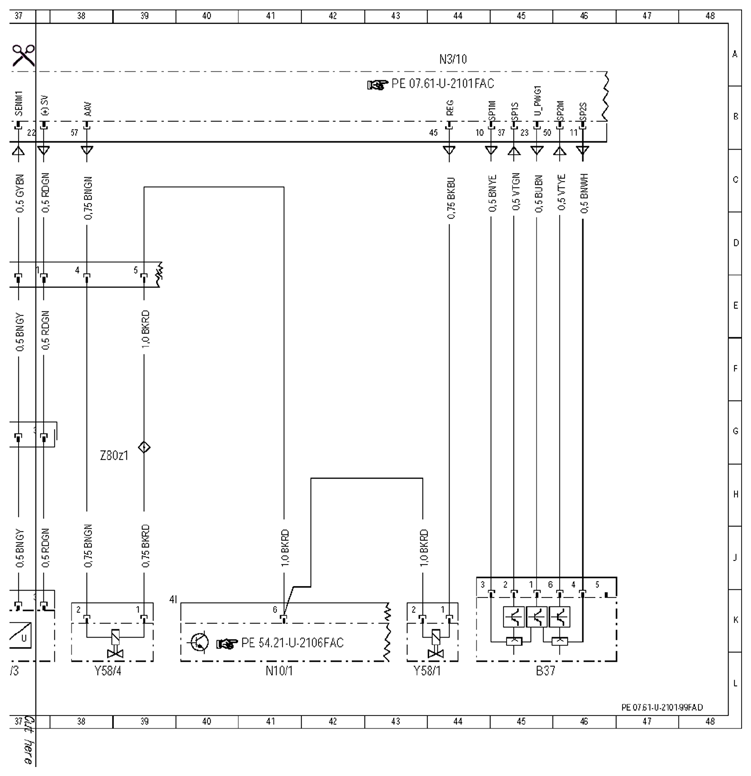

| B37 |
Accelerator pedal sensor |
45 L |
| B4/3 |
Fuel tank pressure sensor |
37 L |

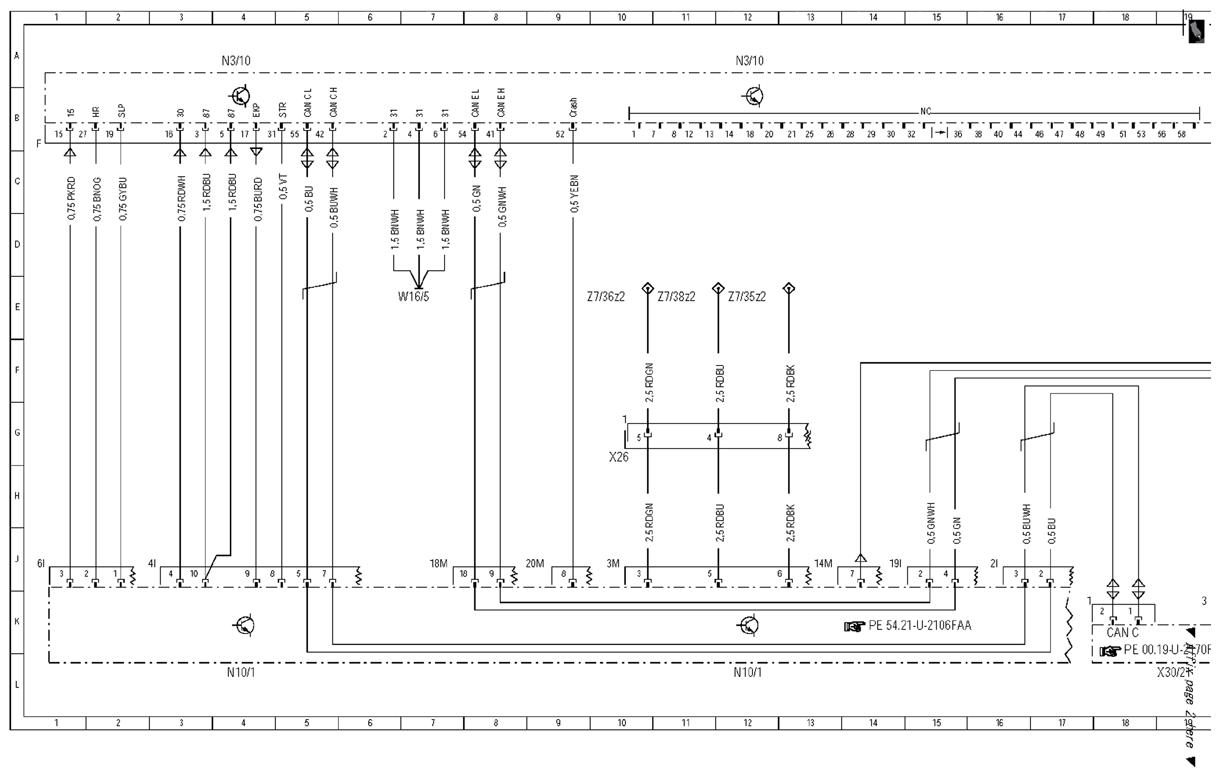

| CAN C |
Drive train CAN |
18 K |

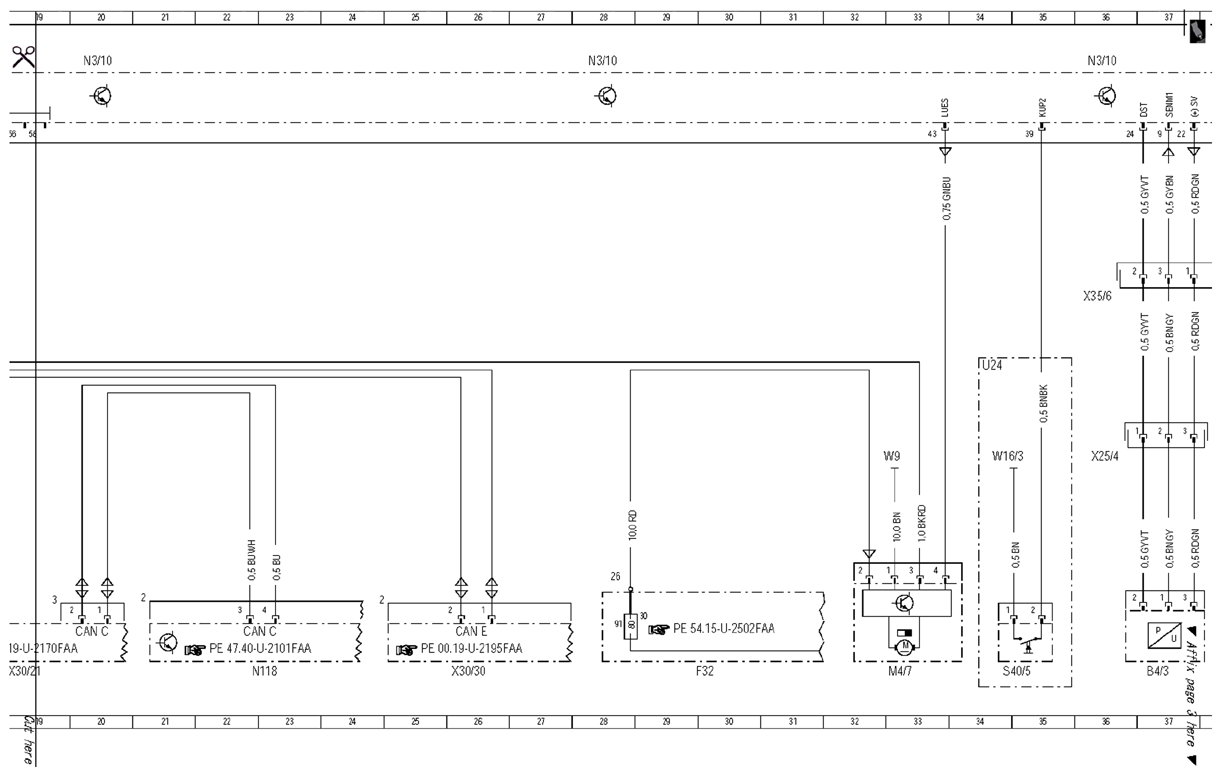

| CAN C |
Drive train CAN |
20 K |
| CAN C |
Drive train CAN |
22 K |
| CAN E |
Chassis CAN |
26 K |
| F32 |
Front electrical prefuse box |
30 L |
| F32f91 |
Prefuse 91 |
28 K |
| M4/7 |
Combustion engine and air conditioning with integrated control fan motor |
33 L |
| N10/1 |
Front SAM control module with fuse and relay module |
4 L |
| N10/1 |
Front SAM control module with fuse and relay module |
12 L |
| N10/1 |
Front SAM control module with fuse and relay module |
41 L |
| N118 |
Fuel pump control module |
23 L |
| N3/10 |
ME-SFI [ME] control module |
4 A |
| N3/10 |
ME-SFI [ME] control module |
12 A |
| N3/10 |
ME-SFI [ME] control module |
20 A |
| N3/10 |
ME-SFI [ME] control module |
28 A |
| N3/10 |
ME-SFI [ME] control module |
36 A |
| N3/10 |
ME-SFI [ME] control module |
44 A |
| S40/5 |
Start enable clutch pedal switch |
35 L |
| U24 |
Valid for manual transmission |
34 F |
| W16/3 |
Left major assembly compartment ground point |
34 G |
| W16/5 |
Left major assembly compartment electronics ground point |
7 E |
| W9 |
Left front ground point (at lamp unit) |
33 G |
| X25/4 |
Fuel tank electrical connector |
36 G |
| X26 |
Interior and engine wiring harness electrical connector |
10 G |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
19 L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
26 L |
| X35/6 |
Instrument panel and module box electrical connector |
36 E |
| Y58/1 |
Purge control valve |
43 L |
| Y58/4 |
Activated charcoal filter shutoff valve |
38 L |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
12 E |
| Z7/36z2 |
Circuit 87M2e connector sleeve |
10 E |
| Z7/38z2 |
Circuit 87 M1i connector sleeve |
11 E |
| Z80z1 |
Cross section reduction connector sleeve |
38 G |
