Electrical function diagram for maximum speed limitation - PE07.61-U-2779-99FAA

Code:	Designation:	Position:
1	Vehicle speed, signal	5 G
CAN E	Chassis CAN	4 H
M16/6	Throttle valve actuator	1 F
N3/10	ME-SFI [ME] control module	4 E
N30/4	Electronic Stability Program control unit	4 J
T1/1	Cylinder 1 ignition coil	7 E
T1/2	Cylinder 2 ignition coil	7 E
T1/3	Cylinder 3 ignition coil	7 E
T1/4	Cylinder 4 ignition coil	7 F
T1/5	Cylinder 5 ignition coil	7 F
T1/6	Cylinder 6 ignition coil	7 F
Y62/1	Cylinder 1 injection valve	4 B
Y62/2	Cylinder 2 injection valve	4 B
Y62/3	Cylinder 3 injection valve	4 B
Y62/4	Cylinder 4 injection valve	4 B
Y62/5	Cylinder 5 injection valve	4 C
Y62/6	Cylinder 6 injection valve	4 C

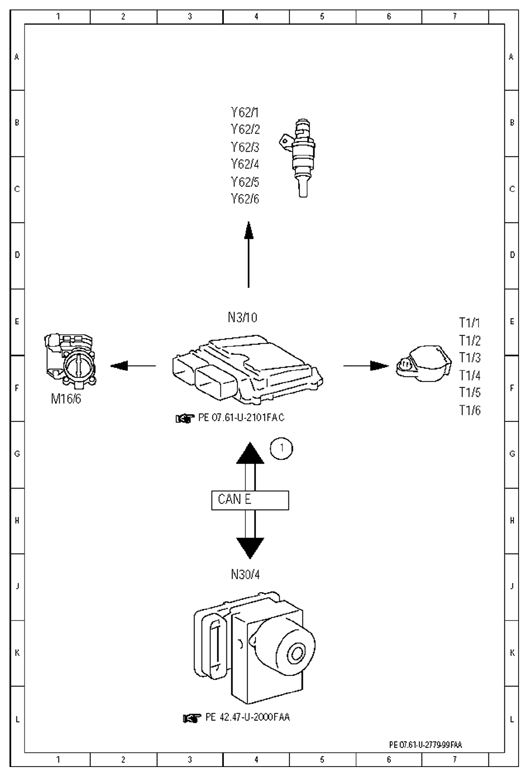

Fig 1: ME Maximum Speed Limitation Communication Diagram

Courtesy of MERCEDES-BENZ USA
