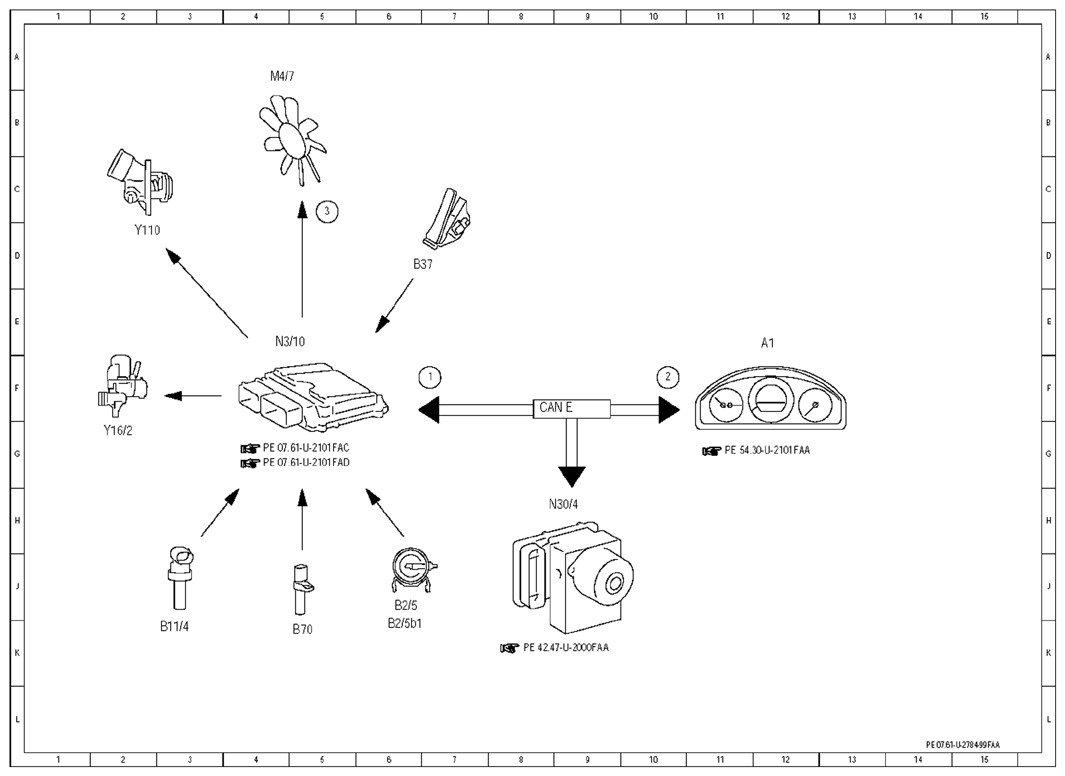

| 1 |
Vehicle speed, signal |
7 F |
| 2 |
Instrument cluster, message |
10 F |
| 3 |
Fan motor, specified rpm request |
5 C |
| A1 |
Instrument cluster |
12 E |
| B11/4 |
Coolant temperature sensor |
3 J |
| B2/5 |
Hot film MAF sensor |
6 J |
| B2/5b1 |
Intake air temperature sensor |
6 J |
| B37 |
Accelerator pedal sensor |
7 D |
| B70 |
Crankshaft Hall sensor |
5 J |
| CAN E |
Chassis CAN |
8 F |
| M4/7 |
Combustion engine and air conditioning with integrated control fan motor |
4 A |
| N3/10 |
ME-SFI [ME] control module |
4 E |
| N30/4 |
Electronic Stability Program control unit |
9 H |
| Y110 |
Coolant thermostat |
2 C |
| Y16/2 |
Heating system shutoff valve |
2 G |
