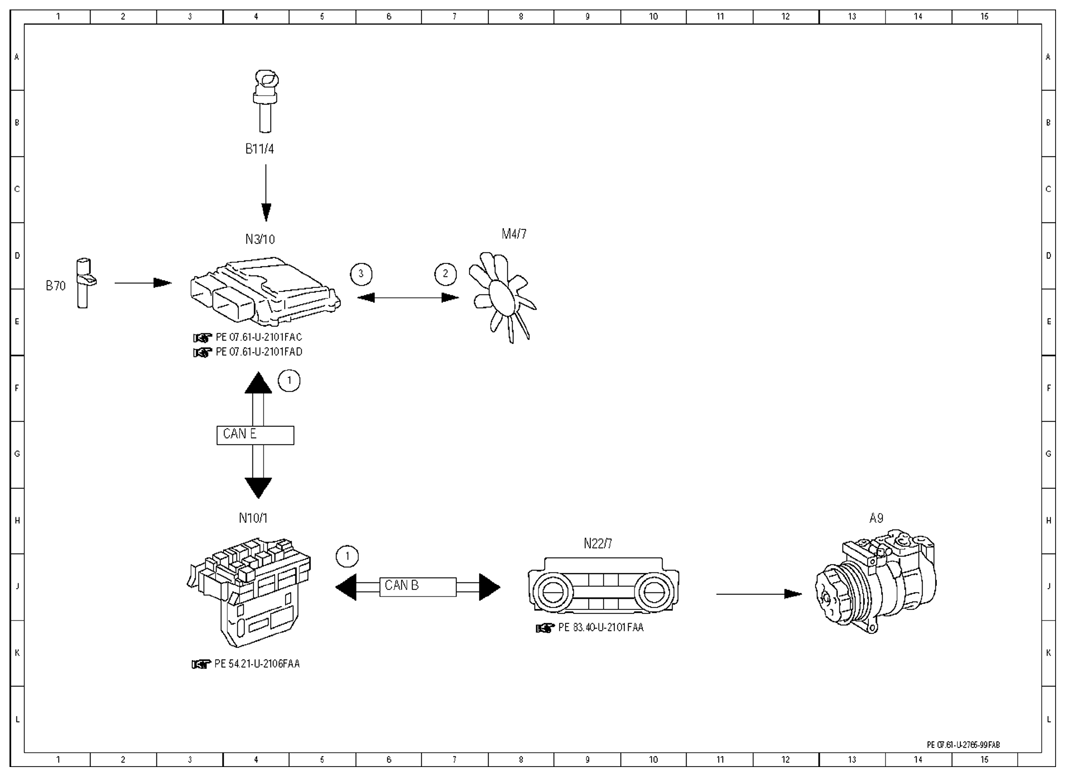

| 1 |
Air conditioning, status |
5 F |
| 1 |
Air conditioning, status |
6 H |
| 2 |
Fan motor, specified rpm request |
7 D |
| 3 |
Fan motor, status |
6 D |
| A9 |
Refrigerant compressor |
13 H |
| B11/4 |
Coolant temperature sensor |
4 B |
| B70 |
Crankshaft Hall sensor |
1 D |
| CAN B |
Interior CAN |
6 J |
| CAN E |
Chassis CAN |
4 G |
| M4/7 |
Combustion engine and air conditioning with integrated control fan motor |
8 D |
| N10/1 |
Front SAM control module with fuse and relay module |
4 H |
| N22/7 |
Automatic air conditioning control and operating unit |
9 H |
| N3/10 |
ME-SFI [ME] control module |
4 D |
