Electrical function diagram for ME warm-up control - PE07.61-U-2764-99FAB

Code: Designation: Position:
1 Correction programming, communication 5 H
1 Correction programming, communication 5 F
1 Correction programming, communication 6 J
1 Correction programming, communication 8 J
2 Secondary air injection relay, actuation 9 F
3 Shift point, increase request 10 D
B11/4 Coolant temperature sensor 5 B
B2/5 Hot film MAF sensor 7 H
B2/5b1 Intake air temperature sensor 7 H
B37 Accelerator pedal sensor 9 C
B6/4 Left intake camshaft Hall sensor 3 B
B6/5 Right intake camshaft Hall sensor 3 B
B6/6 Left exhaust camshaft Hall sensor 3 B
B6/7 Right exhaust camshaft Hall sensor 3 C
B70 Crankshaft Hall sensor 4 B
CAN C Drive train CAN 8 E
CAN D Diagnostic CAN 7 K
CAN E Chassis CAN 5 G
Code 427 7-speed automatic transmission 11 C
G3/3 Left oxygen sensor upstream of catalytic converter 7 A
G3/4 Right oxygen sensor upstream of catalytic converter 7 A
G3/5 Left oxygen sensor downstream of catalytic converter 7 A
G3/6 Right oxygen sensor downstream of catalytic converter 7 B
M16/6 Throttle valve actuator 1 D
M33 AIR pump 12 G
N10/1 Front SAM control module with fuse and relay module 5 J
N10/1kP Secondary air injection relay 10 G
N3/10 ME-SFI [ME] control module 5 D
X11/4 Diagnostic connector 10 J
Y110 Coolant thermostat 8 H
Y16/2 Heating system shutoff valve 8 B
Y3/8 Fully integrated transmission control control unit 12 D
Y32 Air pump switchover valve 3 J
Y49/4 Left intake camshaft solenoid 2 E
Y49/5 Right intake camshaft solenoid 2 F
Y49/6 Left exhaust camshaft solenoid 2 F
Y49/7 Right exhaust camshaft solenoid 2 F
Y62/1 Cylinder 1 injection valve 1 G
Y62/2 Cylinder 2 injection valve 1 G
Y62/3 Cylinder 3 injection valve 1 H
Y62/4 Cylinder 4 injection valve 1 H
Y62/5 Cylinder 5 injection valve 1 H
Y62/6 Cylinder 6 injection valve 1 H

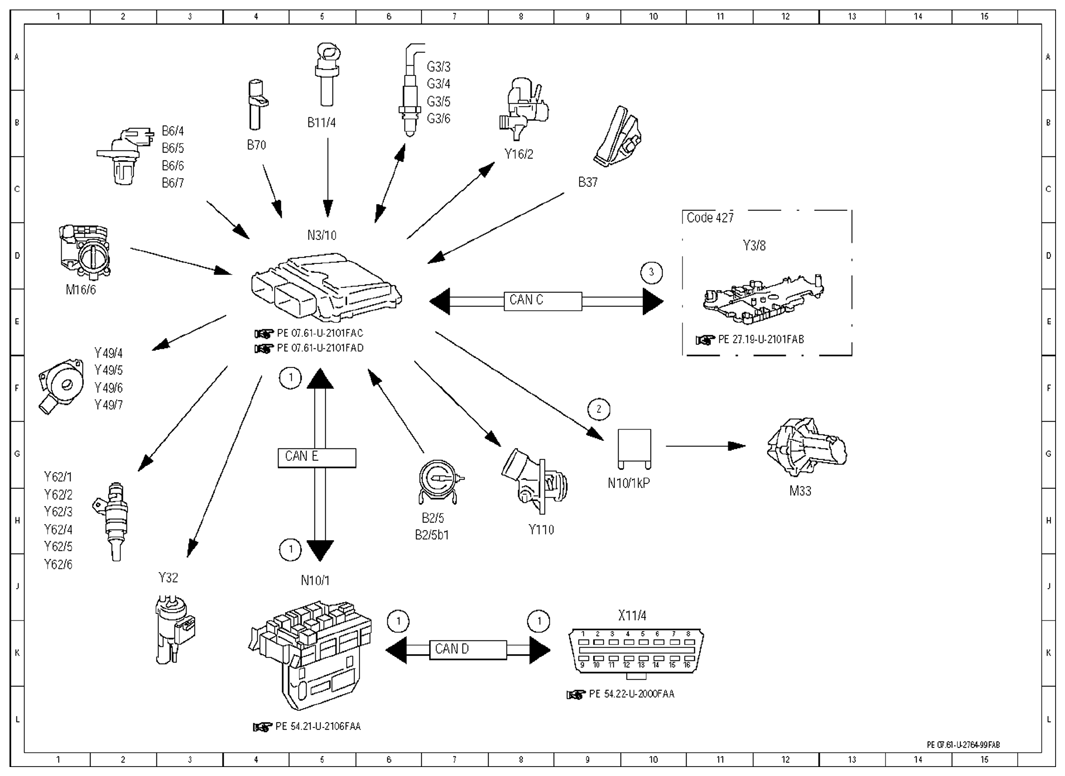

Fig 1: ME Warm-Up Control Communication Diagram
G10105679Courtesy of MERCEDES-BENZ USA
