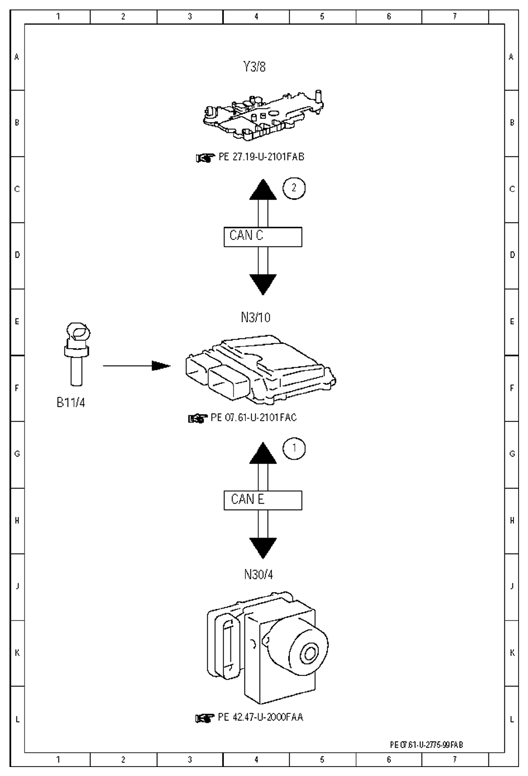

Electrical function diagram for ME transmission shift delay - PE07.61-U-2775-99FAB
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle speed, signal | 5 G |
| 2 | Shift point, increase request | 5 C |
| B11/4 | Coolant temperature sensor | 1 F |
| CAN C | Drive train CAN | 4 D |
| CAN E | Chassis CAN | 4 H |
| N3/10 | ME-SFI [ME] control module | 4 E |
| N30/4 | Electronic Stability Program control unit | 4 J |
| Y3/8 | Fully integrated transmission control control unit | 4 A |
