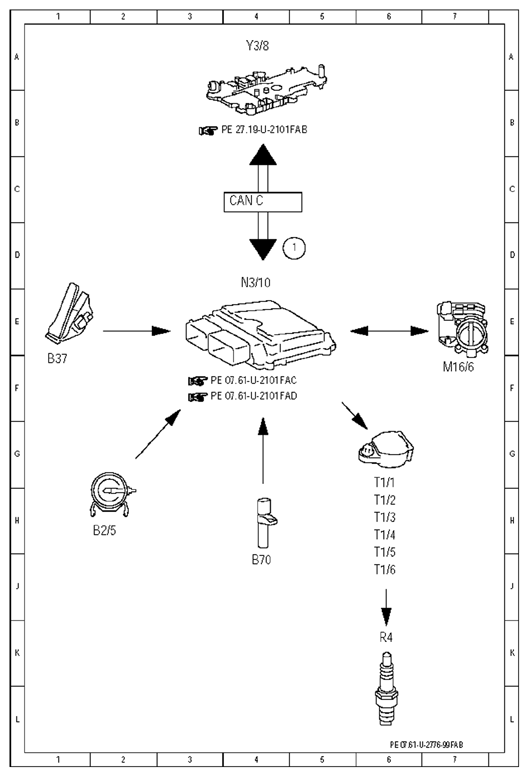

| 1 |
Transmission control, status |
5 D |
| B2/5 |
Hot film MAF sensor |
2 H |
| B37 |
Accelerator pedal sensor |
1 E |
| B70 |
Crankshaft Hall sensor |
4 H |
| CAN C |
Drive train CAN |
4 C |
| M16/6 |
Throttle valve actuator |
7 F |
| N3/10 |
ME-SFI [ME] control module |
4 D |
| R4 |
Spark plugs |
6 K |
| T1/1 |
Cylinder 1 ignition coil |
6 G |
| T1/2 |
Cylinder 2 ignition coil |
6 H |
| T1/3 |
Cylinder 3 ignition coil |
6 H |
| T1/4 |
Cylinder 4 ignition coil |
6 H |
| T1/5 |
Cylinder 5 ignition coil |
6 H |
| T1/6 |
Cylinder 6 ignition coil |
6 J |
| Y3/8 |
Fully integrated transmission control control unit |
4 A |
