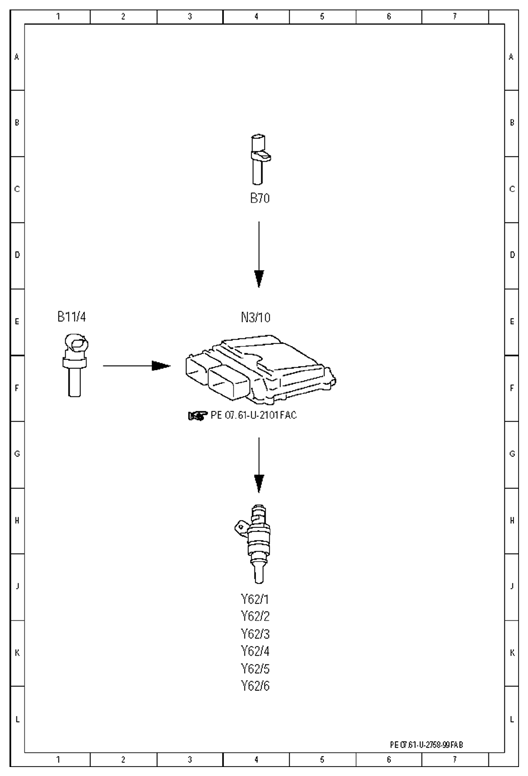

Electrical function diagram for ME start quantity control - PE07.61-U-2758-99FAB
| Code: | Designation: | Position: |
|---|---|---|
| B11/4 | Coolant temperature sensor | 1 E |
| B70 | Crankshaft Hall sensor | 4 C |
| N3/10 | ME-SFI [ME] control module | 4 E |
| Y62/1 | Cylinder 1 injection valve | 4 J |
| Y62/2 | Cylinder 2 injection valve | 4 J |
| Y62/3 | Cylinder 3 injection valve | 4 K |
| Y62/4 | Cylinder 4 injection valve | 4 K |
| Y62/5 | Cylinder 5 injection valve | 4 K |
| Y62/6 | Cylinder 6 injection valve | 4 K |
