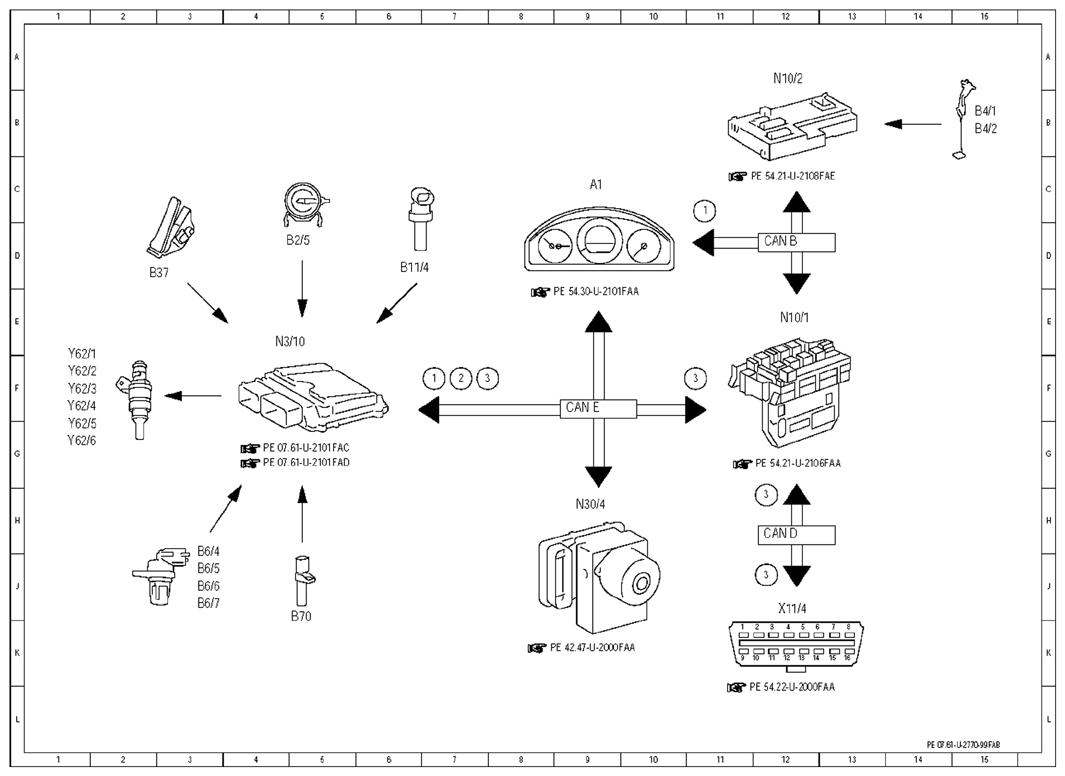

| 1 |
Fuel level, signal |
7 F |
| 1 |
Fuel level, signal |
11 C |
| 2 |
Wheel speed, signal |
7 F |
| 3 |
Correction programming, communication |
8 F |
| 3 |
Correction programming, communication |
11 F |
| 3 |
Correction programming, communication |
12 J |
| 3 |
Correction programming, communication |
12 G |
| A1 |
Instrument cluster |
9 C |
| B11/4 |
Coolant temperature sensor |
6 D |
| B2/5 |
Hot film MAF sensor |
5 D |
| B37 |
Accelerator pedal sensor |
3 D |
| B4/1 |
Left fuel level indicator sensor |
15 B |
| B4/2 |
Right fuel level indicator sensor |
15 B |
| B6/4 |
Left intake camshaft Hall sensor |
3 H |
| B6/5 |
Right intake camshaft Hall sensor |
3 J |
| B6/6 |
Left exhaust camshaft Hall sensor |
3 J |
| B6/7 |
Right exhaust camshaft Hall sensor |
3 J |
| B70 |
Crankshaft Hall sensor |
5 J |
| CAN B |
Interior CAN |
12 D |
| CAN D |
Diagnostic CAN |
12 H |
| CAN E |
Chassis CAN |
9 F |
| N10/1 |
Front SAM control module with fuse and relay module |
12 E |
| N10/2 |
Rear SAM control module with fuse and relay module |
12 A |
| N3/10 |
ME-SFI [ME] control module |
4 E |
| N30/4 |
Electronic Stability Program control unit |
9 H |
| X11/4 |
Diagnostic connector |
12 J |
| Y62/1 |
Cylinder 1 injection valve |
1 E |
| Y62/2 |
Cylinder 2 injection valve |
1 F |
| Y62/3 |
Cylinder 3 injection valve |
1 F |
| Y62/4 |
Cylinder 4 injection valve |
1 F |
| Y62/5 |
Cylinder 5 injection valve |
1 F |
| Y62/6 |
Cylinder 6 injection valve |
1 G |
