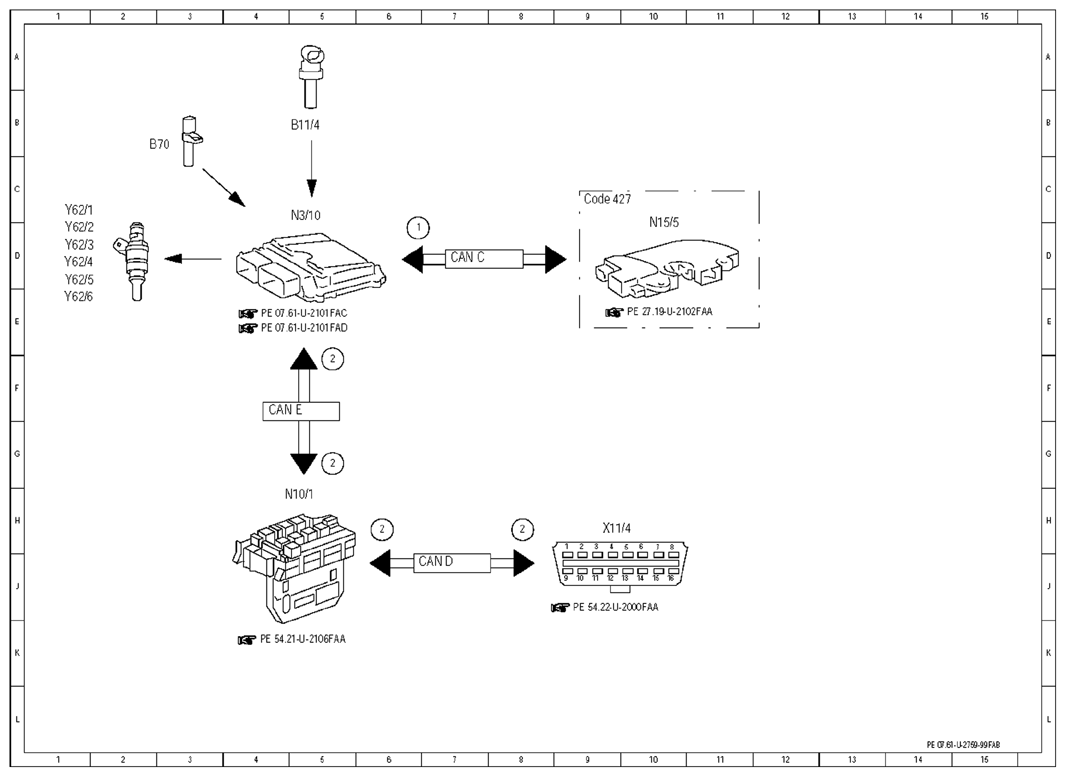

| 1 |
Shift stage, request |
7 C |
| 2 |
Correction programming, communication |
5 G |
| 2 |
Correction programming, communication |
5 E |
| 2 |
Correction programming, communication |
6 H |
| 2 |
Correction programming, communication |
8 H |
| B11/4 |
Coolant temperature sensor |
5 B |
| B70 |
Crankshaft Hall sensor |
3 B |
| CAN C |
Drive train CAN |
7 D |
| CAN D |
Diagnostic CAN |
7 H |
| CAN E |
Chassis CAN |
4 F |
| Code 427 |
7-speed automatic transmission |
9 C |
| N10/1 |
Front SAM control module with fuse and relay module |
5 G |
| N15/5 |
Electronic selector lever module control module |
10 C |
| N3/10 |
ME-SFI [ME] control module |
5 C |
| X11/4 |
Diagnostic connector |
9 H |
| Y62/1 |
Cylinder 1 injection valve |
1 C |
| Y62/2 |
Cylinder 2 injection valve |
1 C |
| Y62/3 |
Cylinder 3 injection valve |
1 D |
| Y62/4 |
Cylinder 4 injection valve |
1 D |
| Y62/5 |
Cylinder 5 injection valve |
1 D |
| Y62/6 |
Cylinder 6 injection valve |
1 D |
