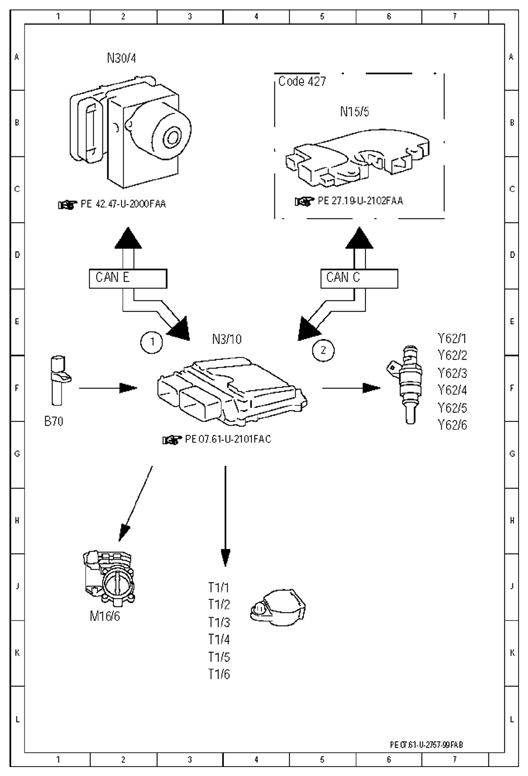

| 1 |
Vehicle speed, signal |
3 E |
| 2 |
Shift stage, request |
5 E |
| B70 |
Crankshaft Hall sensor |
1 F |
| CAN C |
Drive train CAN |
5 D |
| CAN E |
Chassis CAN |
2 D |
| Code 427 |
7-speed automatic transmission |
5 A |
| M16/6 |
Throttle valve actuator |
2 J |
| N15/5 |
Electronic selector lever module control module |
5 B |
| N3/10 |
ME-SFI [ME] control module |
4 E |
| N30/4 |
Electronic Stability Program control unit |
2 A |
| T1/1 |
Cylinder 1 ignition coil |
3 J |
| T1/2 |
Cylinder 2 ignition coil |
3 J |
| T1/3 |
Cylinder 3 ignition coil |
3 J |
| T1/4 |
Cylinder 4 ignition coil |
3 K |
| T1/5 |
Cylinder 5 ignition coil |
3 K |
| T1/6 |
Cylinder 6 ignition coil |
3 K |
| Y62/1 |
Cylinder 1 injection valve |
7 E |
| Y62/2 |
Cylinder 2 injection valve |
7 E |
| Y62/3 |
Cylinder 3 injection valve |
7 F |
| Y62/4 |
Cylinder 4 injection valve |
7 F |
| Y62/5 |
Cylinder 5 injection valve |
7 F |
| Y62/6 |
Cylinder 6 injection valve |
7 F |
