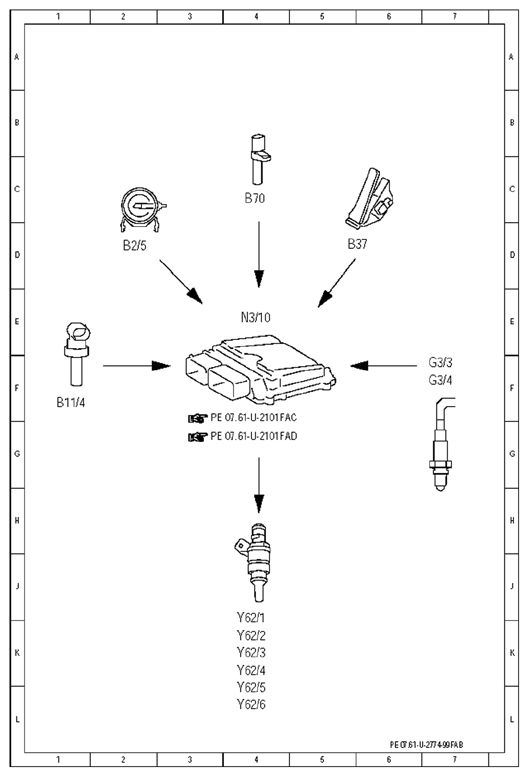

| B11/4 |
Coolant temperature sensor |
1 F |
| B2/5 |
Hot film MAF sensor |
2 D |
| B37 |
Accelerator pedal sensor |
6 D |
| B70 |
Crankshaft Hall sensor |
4 C |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
7 E |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
7 F |
| N3/10 |
ME-SFI [ME] control module |
4 E |
| Y62/1 |
Cylinder 1 injection valve |
4 J |
| Y62/2 |
Cylinder 2 injection valve |
4 K |
| Y62/3 |
Cylinder 3 injection valve |
4 K |
| Y62/4 |
Cylinder 4 injection valve |
4 K |
| Y62/5 |
Cylinder 5 injection valve |
4 K |
| Y62/6 |
Cylinder 6 injection valve |
4 L |
