Electrical function diagram for ME engine control output signal - PE07.61-U-2751-99FAB

Code: Designation: Position:
A1 Instrument cluster 17 G
A1e58 Engine diagnosis malfunction indicator lamp 16 F
A9 Refrigerant compressor 28 G
CAN B Interior CAN 22 H
CAN C Drive train CAN 11 E
CAN C Drive train CAN 19 A
CAN D Diagnostic CAN 22 H
CAN E Chassis CAN 11 F
CAN E Chassis CAN 19 F
Code 427 7-speed automatic transmission 18 B
G2 Generator 11 C
G3/3 Left oxygen sensor upstream of catalytic converter 2 E
G3/4 Right oxygen sensor upstream of catalytic converter 2 E
G3/5 Left oxygen sensor downstream of catalytic converter 2 F
G3/6 Right oxygen sensor downstream of catalytic converter 2 F
LIN C1 Drive train LIN 8 D
M1 Starter 10 A
M16/6 Throttle valve actuator 2 D
M3 Fuel pump (FP) 14 C
M33 AIR pump 9 A
M4/7 Combustion engine and air conditioning with integrated control fan motor 5 A
N10/1 Front SAM control module with fuse and relay module 19 G
N10/1kM Starter circuit 50 relay 9 C
N10/1kN Engine circuit 87 relay 2 H
N10/1kP Secondary air injection relay 8 C
N118 Fuel pump control module 16 B
N22/7 Automatic air conditioning control and operating unit 25 H
N3/10 ME-SFI [ME] control module 5 E
N30/4 Electronic Stability Program control unit 14 G
R4 Spark plugs 1 L
T1/1 Cylinder 1 ignition coil 1 G
T1/2 Cylinder 2 ignition coil 1 H
T1/3 Cylinder 3 ignition coil 1 H
T1/4 Cylinder 4 ignition coil 1 H
T1/5 Cylinder 5 ignition coil 1 J
T1/6 Cylinder 6 ignition coil 1 J
X11/4 Diagnostic connector 22 E
Y110 Coolant thermostat 8 J
Y16/2 Heating system shutoff valve 9 J
Y22/6 Intake manifold switchover valve 9 G
Y22/9 Intake manifold tumble flap switchover valve 9 H
Y3/8 Fully integrated transmission control control unit 20 C
Y32 Air pump switchover valve 3 J
Y49/4 Left intake camshaft solenoid 4 B
Y49/5 Right intake camshaft solenoid 4 B
Y49/6 Left exhaust camshaft solenoid 4 B
Y49/7 Right exhaust camshaft solenoid 4 B
Y58/1 Purge control valve 7 A
Y58/4 Activated charcoal filter shutoff valve 6 J
Y62/1 Cylinder 1 injection valve 4 J
Y62/2 Cylinder 2 injection valve 4 K
Y62/3 Cylinder 3 injection valve 4 K
Y62/4 Cylinder 4 injection valve 4 K
Y62/5 Cylinder 5 injection valve 4 L
Y62/6 Cylinder 6 injection valve 4 L

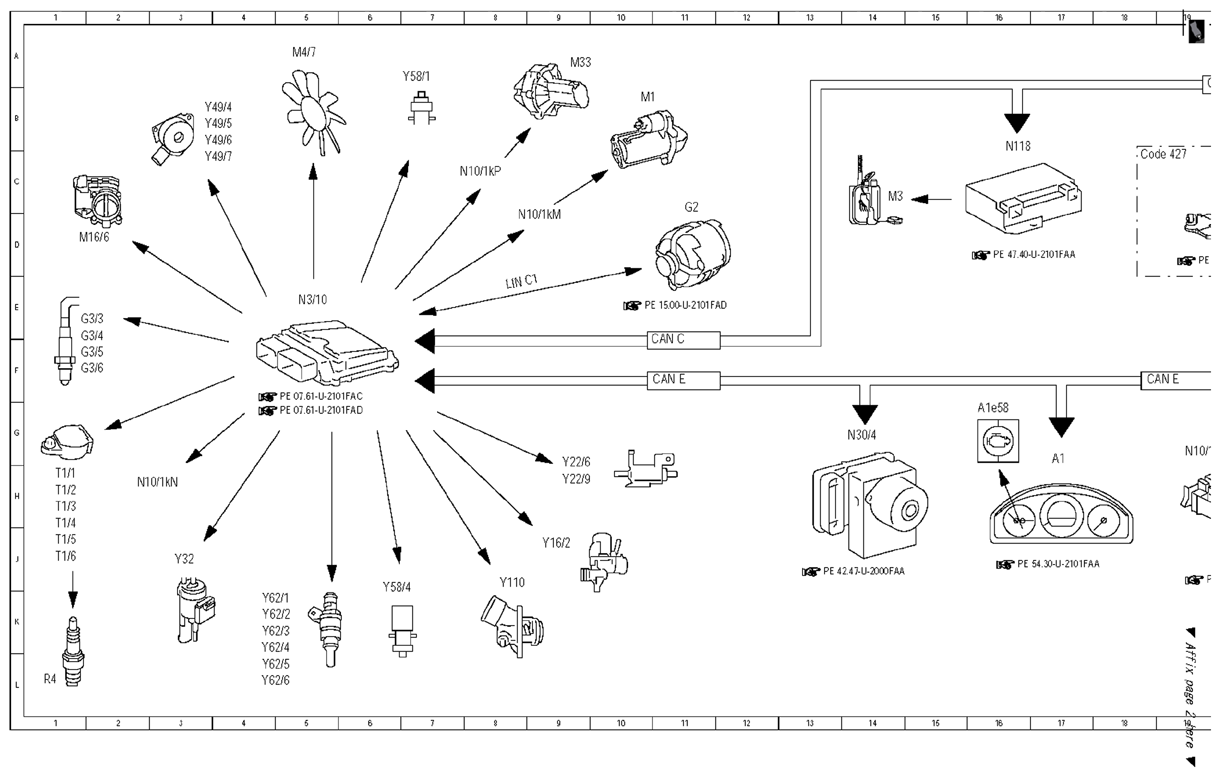

Fig 1: ME Engine Control Output Signal Communication Diagram (1 Of 2)
G10105665Courtesy of MERCEDES-BENZ USA

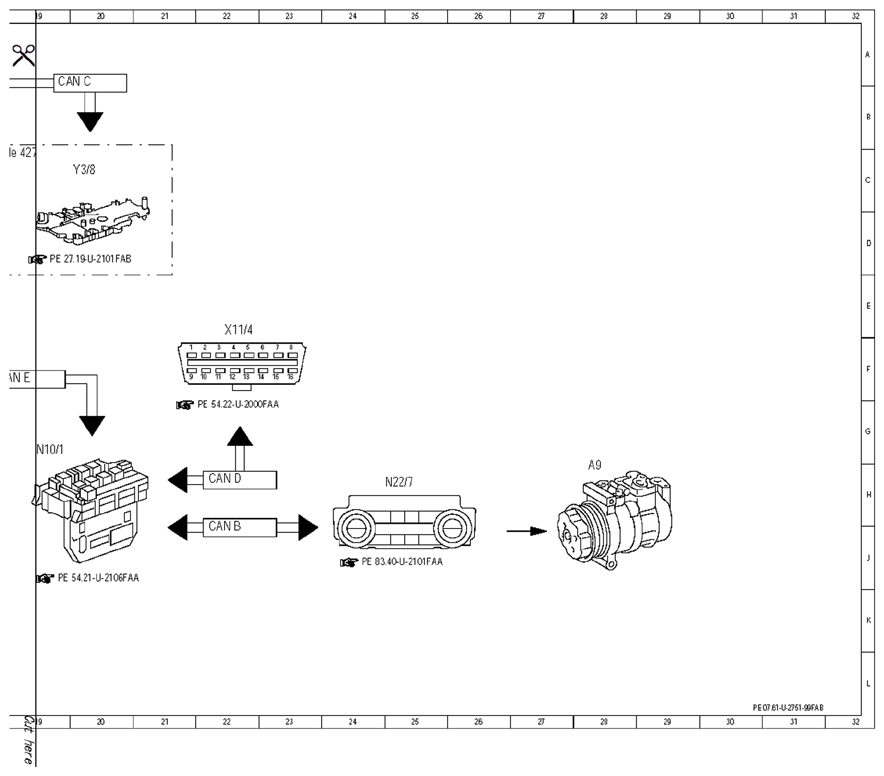

Fig 2: ME Engine Control Output Signal Communication Diagram (2 Of 2)
G10105666Courtesy of MERCEDES-BENZ USA
