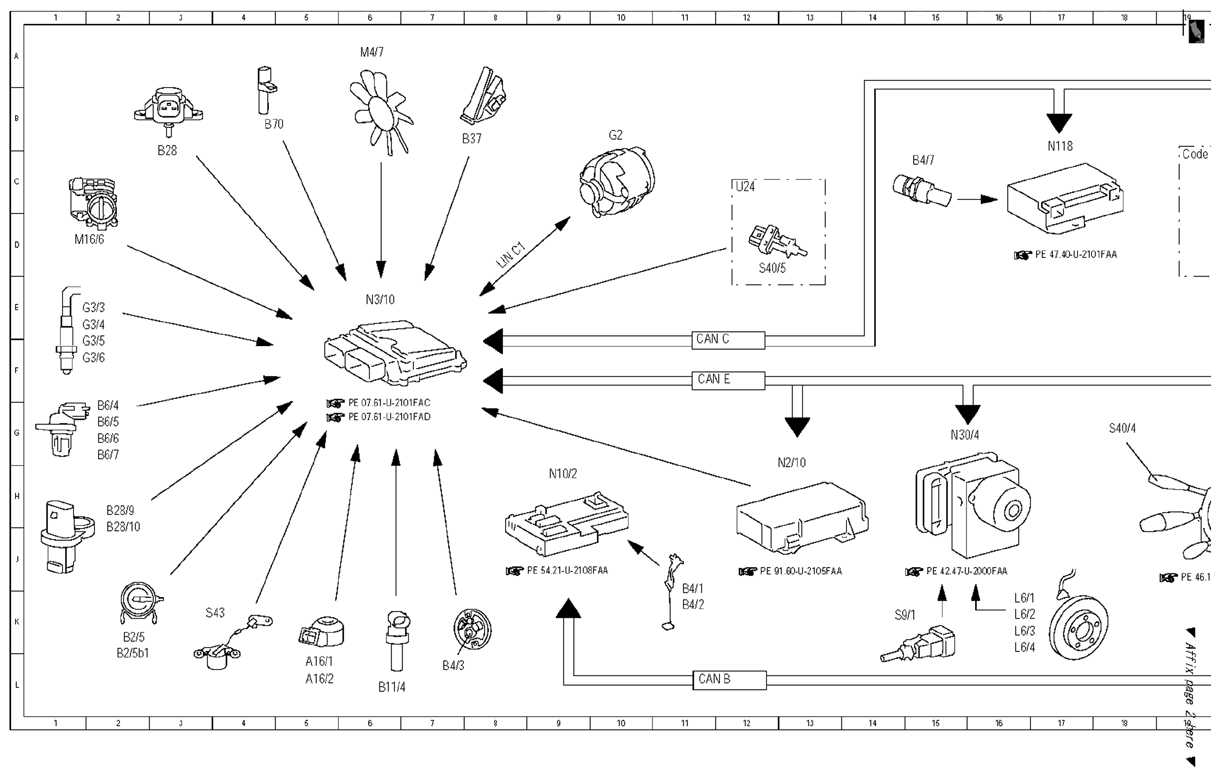

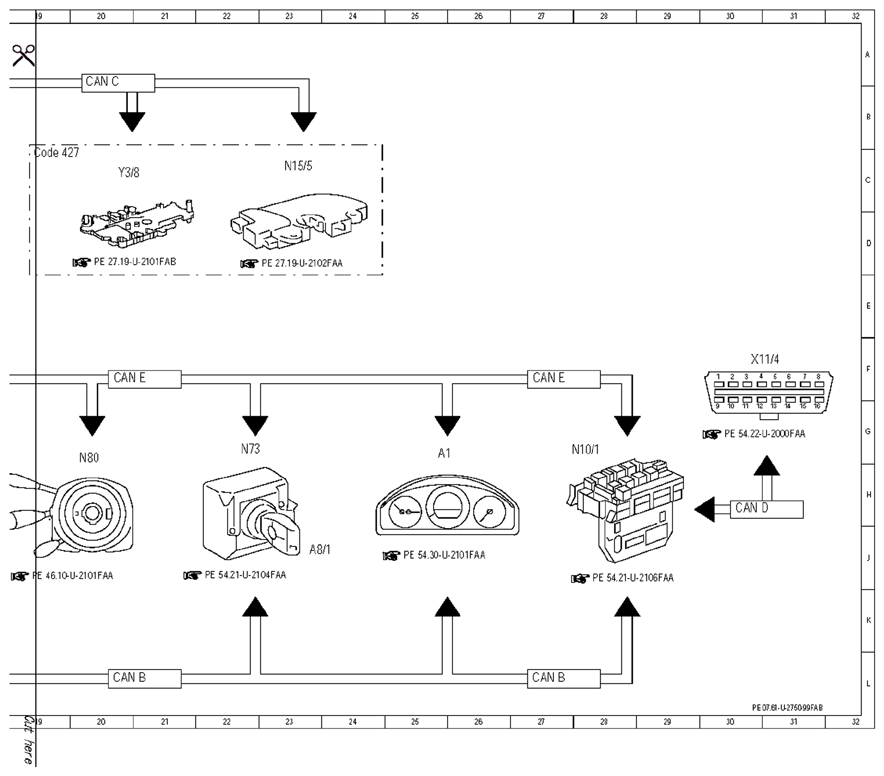

| A1 |
Instrument cluster |
26 G |
| A16/1 |
Right knock sensor |
5 K |
| A16/2 |
Left knock sensor |
5 L |
| A8/1 |
Transmitter key |
23 J |
| B11/4 |
Coolant temperature sensor |
6 L |
| B2/5 |
Hot film MAF sensor |
2 K |
| B2/5b1 |
Intake air temperature sensor |
2 K |
| B28 |
Pressure sensor |
3 B |
| B28/10 |
Right intake manifold tumble flap position sensor |
2 H |
| B28/9 |
Left intake manifold tumble flap position sensor |
2 H |
| B37 |
Accelerator pedal sensor |
8 B |
| B4/1 |
Left fuel level indicator sensor |
11 J |
| B4/2 |
Right fuel level indicator sensor |
11 K |
| B4/3 |
Fuel tank pressure sensor |
7 L |
| B4/7 |
Fuel pressure sensor |
15 C |
| B6/4 |
Left intake camshaft Hall sensor |
2 F |
| B6/5 |
Right intake camshaft Hall sensor |
2 G |
| B6/6 |
Left exhaust camshaft Hall sensor |
2 G |
| B6/7 |
Right exhaust camshaft Hall sensor |
2 G |
| B70 |
Crankshaft Hall sensor |
5 B |
| CAN B |
Interior CAN |
11 L |
| CAN B |
Interior CAN |
20 L |
| CAN B |
Interior CAN |
27 L |
| CAN C |
Drive train CAN |
11 E |
| CAN C |
Drive train CAN |
20 A |
| CAN D |
Diagnostic CAN |
30 H |
| CAN E |
Chassis CAN |
11 F |
| CAN E |
Chassis CAN |
20 F |
| CAN E |
Chassis CAN |
27 F |
| Code 427 |
7-speed automatic transmission |
19 B |
| G2 |
Generator |
10 B |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
2 E |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
2 E |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
2 E |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
2 F |
| L6/1 |
Left front axle rpm sensor |
16 J |
| L6/2 |
Right front axle rpm sensor |
16 K |
| L6/3 |
Left rear axle rpm sensor |
16 K |
| L6/4 |
Right rear axle rpm sensor |
16 K |
| LIN C1 |
Drive train LIN |
8 D |
| M16/6 |
Throttle valve actuator |
2 D |
| M4/7 |
Combustion engine and air conditioning with integrated control fan motor |
6 A |
| N10/1 |
Front SAM control module with fuse and relay module |
28 G |
| N10/2 |
Rear SAM control module with fuse and relay module |
9 G |
| N118 |
Fuel pump control module |
17 B |
| N15/5 |
Electronic selector lever module control module |
23 C |
| N2/10 |
Supplemental restraint system control unit |
13 G |
| N3/10 |
ME-SFI [ME] control module |
6 E |
| N30/4 |
Electronic Stability Program control unit |
15 G |
| N73 |
Electronic ignition switch control unit |
22 G |
| N80 |
Steering column module control unit |
20 G |
| S40/4 |
Cruise control lever |
18 G |
| S40/5 |
Start enable clutch pedal switch |
12 D |
| S43 |
Oil level switch |
4 K |
| S9/1 |
Stop lamp switch |
15 K |
| U24 |
Valid for manual transmission |
12 C |
| X11/4 |
Diagnostic connector |
31 F |
| Y3/8 |
Fully integrated transmission control control unit |
20 C |
