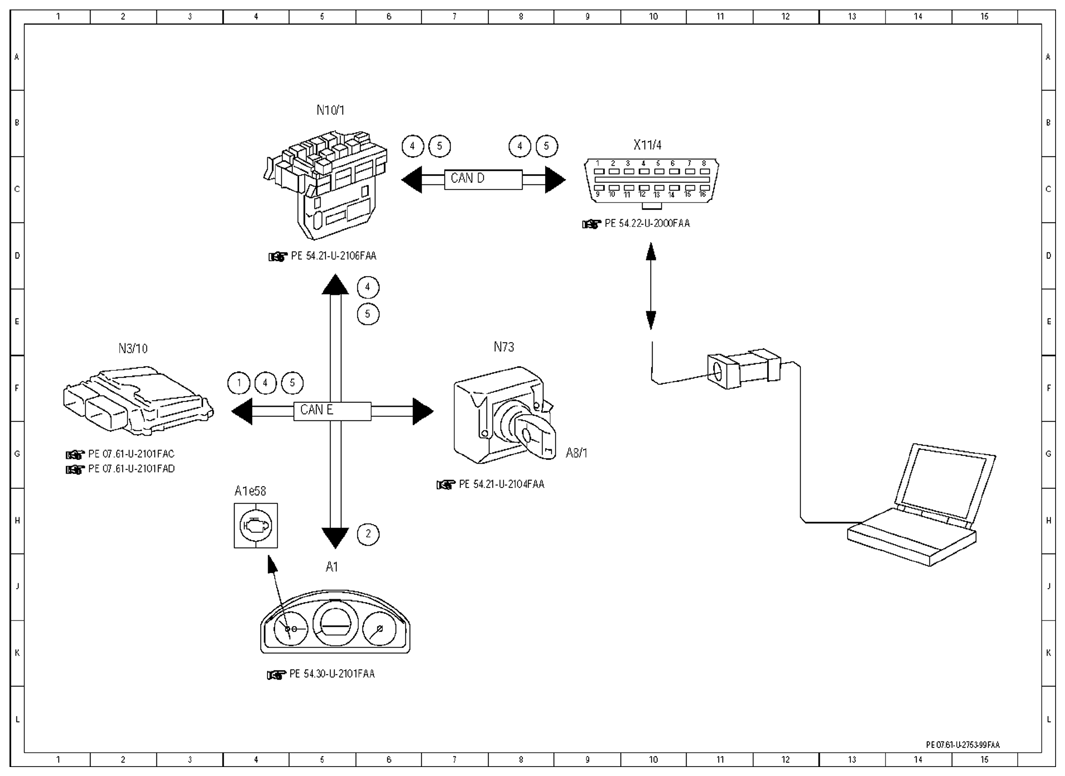

| 1 |
Circuit 15, status |
4 F |
| 2 |
Engine diagnosis indicator lamp, actuation |
6 H |
| 4 |
Engine control diagnosis, communication |
4 F |
| 4 |
Engine control diagnosis, communication |
6 D |
| 4 |
Engine control diagnosis, communication |
7 B |
| 4 |
Engine control diagnosis, communication |
8 B |
| 5 |
Correction programming, communication |
5 F |
| 5 |
Correction programming, communication |
6 E |
| 5 |
Correction programming, communication |
7 B |
| 5 |
Correction programming, communication |
9 B |
| A1 |
Instrument cluster |
5 J |
| A1e58 |
Engine diagnosis malfunction indicator lamp |
4 G |
| A8/1 |
Transmitter key |
9 G |
| CAN D |
Diagnostic CAN |
7 C |
| CAN E |
Chassis CAN |
5 F |
| N10/1 |
Front SAM control module with fuse and relay module |
5 B |
| N3/10 |
ME-SFI [ME] control module |
2 E |
| N73 |
Electronic ignition switch control unit |
8 E |
| X11/4 |
Diagnostic connector |
10 B |
