| A0 |
Color code key |
80L |

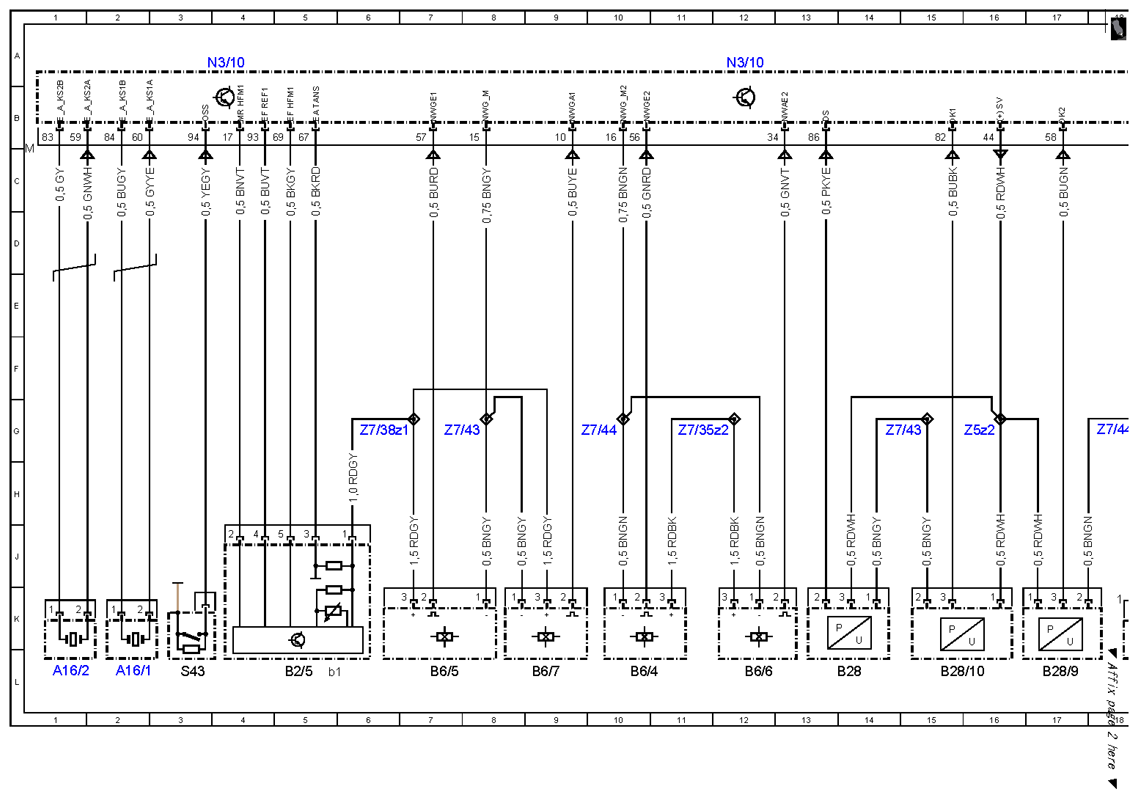

| A16/1 |
Right knock sensor |
2L |
| A16/2 |
Left knock sensor |
1L |

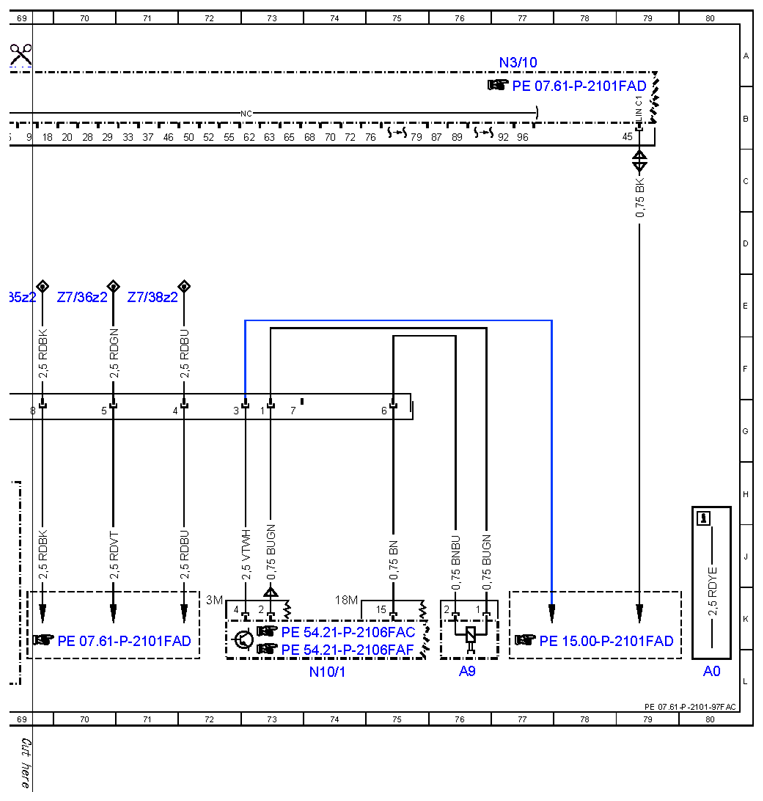

| A9 |
Refrigerant compressor |
76L |
| B11/4 |
Coolant temperature sensor |
18L |
| B2/5 |
Hot film mass air flow sensor |
5L |
| B2/5b1 |
Intake air temperature sensor |
5L |
| B28 |
Pressure sensor |
14L |
| B28/10 |
Right intake manifold tumble flap position sensor |
15L |
| B28/9 |
Left intake manifold tumble flap position sensor |
17L |
| B6/4 |
Left intake camshaft Hall sensor |
10L |
| B6/5 |
Right intake camshaft Hall sensor |
7L |
| B6/6 |
Left exhaust camshaft Hall sensor |
12L |
| B6/7 |
Right exhaust camshaft Hall sensor |
9L |
| B70 |
Crankshaft Hall sensor |
20L |
| C4/1 |
Radio interference suppression capacitor 1 |
50L |
| C4/2 |
Radio interference suppression capacitor 2 |
51L |

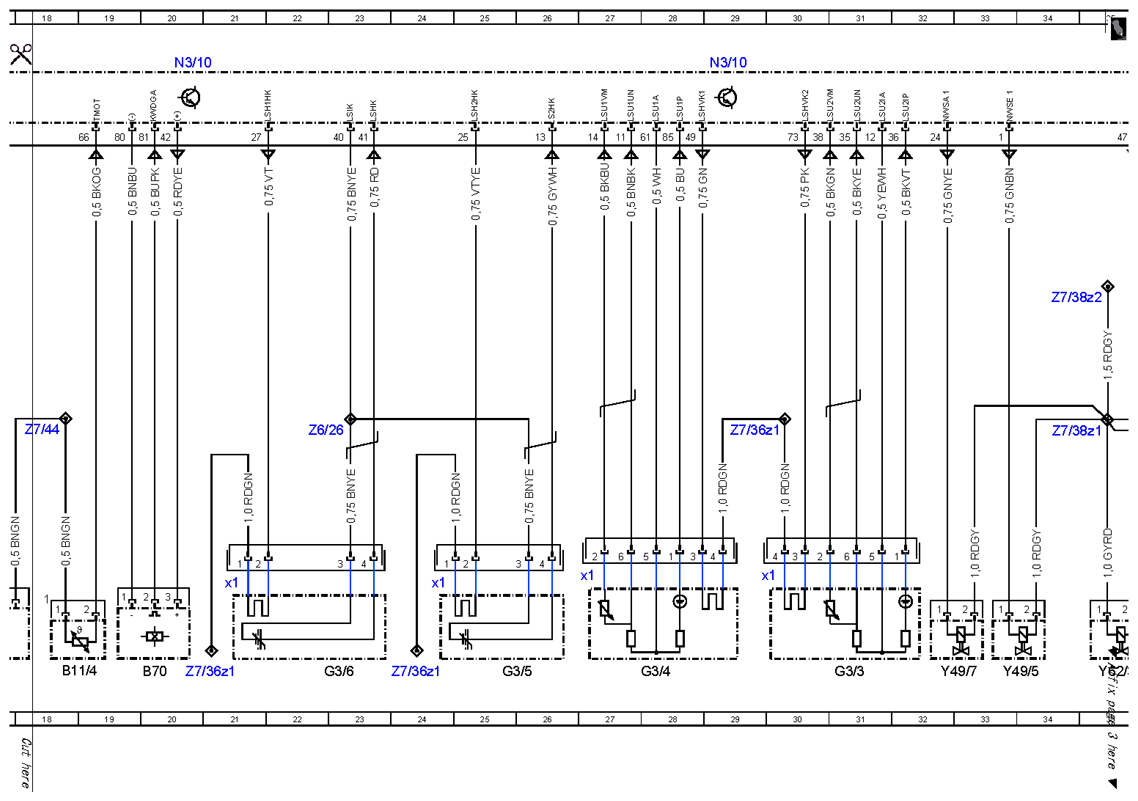

| G3/3 |
Left oxygen sensor upstream of catalytic converter |
31L |
| G3/3x1 |
Electrical connector for left oxygen sensor upstream of catalytic converter |
30J |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
28L |
| G3/4x1 |
Electrical connector for right oxygen sensor upstream of catalytic converter |
27J |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
25L |
| G3/5x1 |
Electrical connector for left oxygen sensor downstream of catalytic converter |
24J |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
23L |
| G3/6x1 |
Electrical connector for right oxygen sensor downstream of catalytic converter |
21J |
| LIN C1 |
Drive train LIN |
79B |

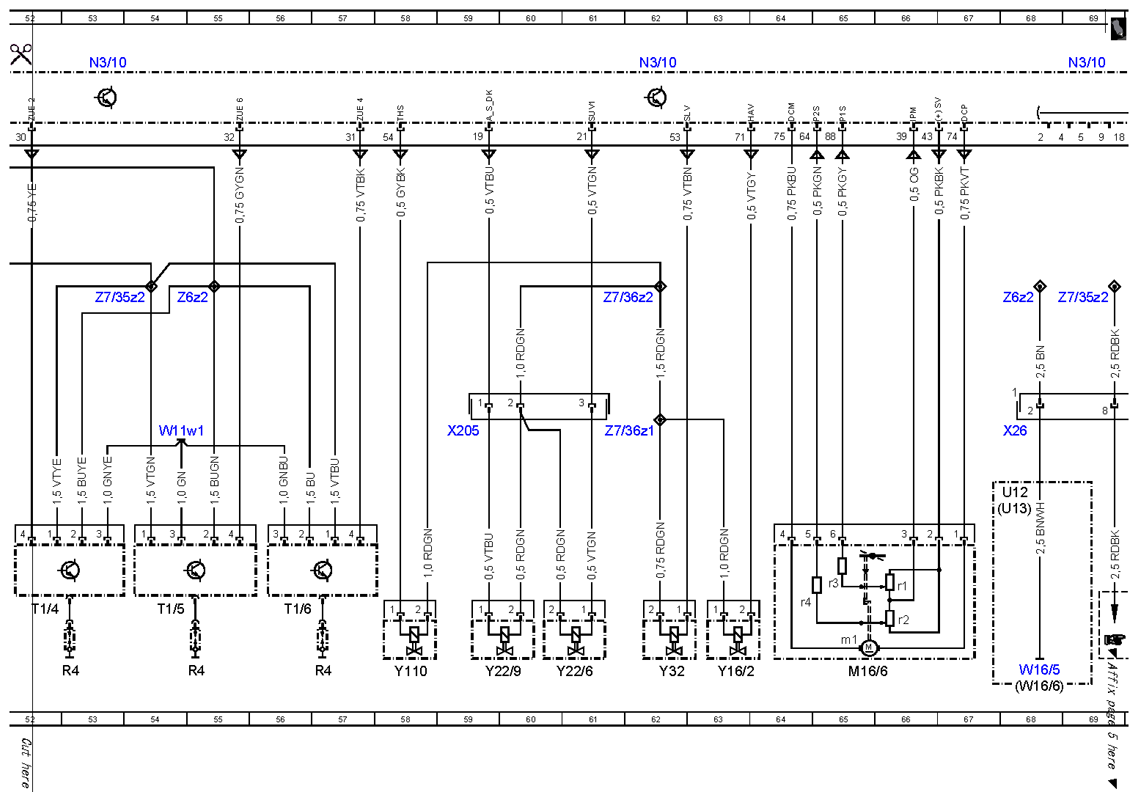

| M16/6 |
Throttle valve actuator |
65L |
| M16/6m1 |
Actuator motor |
65K |
| M16/6r1 |
Actual value potentiometer 1 |
66K |
| M16/6r2 |
Actual value potentiometer 2 |
66K |
| M16/6r3 |
Sliding contact 1 actual value potentiometer |
65K |
| M16/6r4 |
Sliding contact 2 actual value potentiometer |
64K |
| N10/1 |
Front SAM control unit with fuse and relay module |
74L |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N3/10 |
ME-SFI [ME] control unit |
12A |
| N3/10 |
ME-SFI [ME] control unit |
20A |
| N3/10 |
ME-SFI [ME] control unit |
29A |
| N3/10 |
ME-SFI [ME] control unit |
37A |
| N3/10 |
ME-SFI [ME] control unit |
45A |
| N3/10 |
ME-SFI [ME] control unit |
53A |
| N3/10 |
ME-SFI [ME] control unit |
62A |
| N3/10 |
ME-SFI [ME] control unit |
69A |
| N3/10 |
ME-SFI [ME] control unit |
77A |
| R4 |
Spark plugs |
44L |
| R4 |
Spark plugs |
48L |
| R4 |
Spark plugs |
46L |
| R4 |
Spark plugs |
53L |
| R4 |
Spark plugs |
57L |
| R4 |
Spark plugs |
55L |
| S43 |
Oil level check switch |
3L |
| T1/1 |
Cylinder 1 ignition coil |
43K |
| T1/2 |
Cylinder 2 ignition coil |
45K |
| T1/3 |
Cylinder 3 ignition coil |
47K |
| T1/4 |
Cylinder 4 ignition coil |
52K |
| T1/5 |
Cylinder 5 ignition coil |
54K |
| T1/6 |
Cylinder 6 ignition coil |
56K |
| U12 |
Valid for left-hand drive vehicles |
68H |
| U13 |
Valid for right-hand drive vehicles |
67H |
| W11w1 |
Left cylinder bank ground point (engine) |
54G |
| W11w1 |
Left cylinder bank ground point (engine) |
51G |
| W11w2 |
Right cylinder bank ground point (engine) |
46G |
| W11w2 |
Right cylinder bank ground point (engine) |
50G |
| W16/5 |
Left major assembly compartment electronics ground point |
68L |
| W16/6 |
Right major assembly compartment ground point |
68L |
| X205 |
Tumble flap and intake manifold switchover valves electrical connector |
59G |
| X26 |
Interior and engine wiring harness electrical connector |
68G |
| Y110 |
Coolant thermostat |
58L |
| Y16/2 |
Heating system shutoff valve |
63L |
| Y22/6 |
Intake manifold switchover valve |
61L |
| Y22/9 |
Intake manifold tumble flap switchover valve |
59L |
| Y32 |
Air pump switchover valve |
62L |
| Y49/4 |
Left intake camshaft solenoid |
42L |
| Y49/5 |
Right intake camshaft solenoid |
33L |
| Y49/6 |
Left exhaust camshaft solenoid |
41L |
| Y49/7 |
Right exhaust camshaft solenoid |
32L |

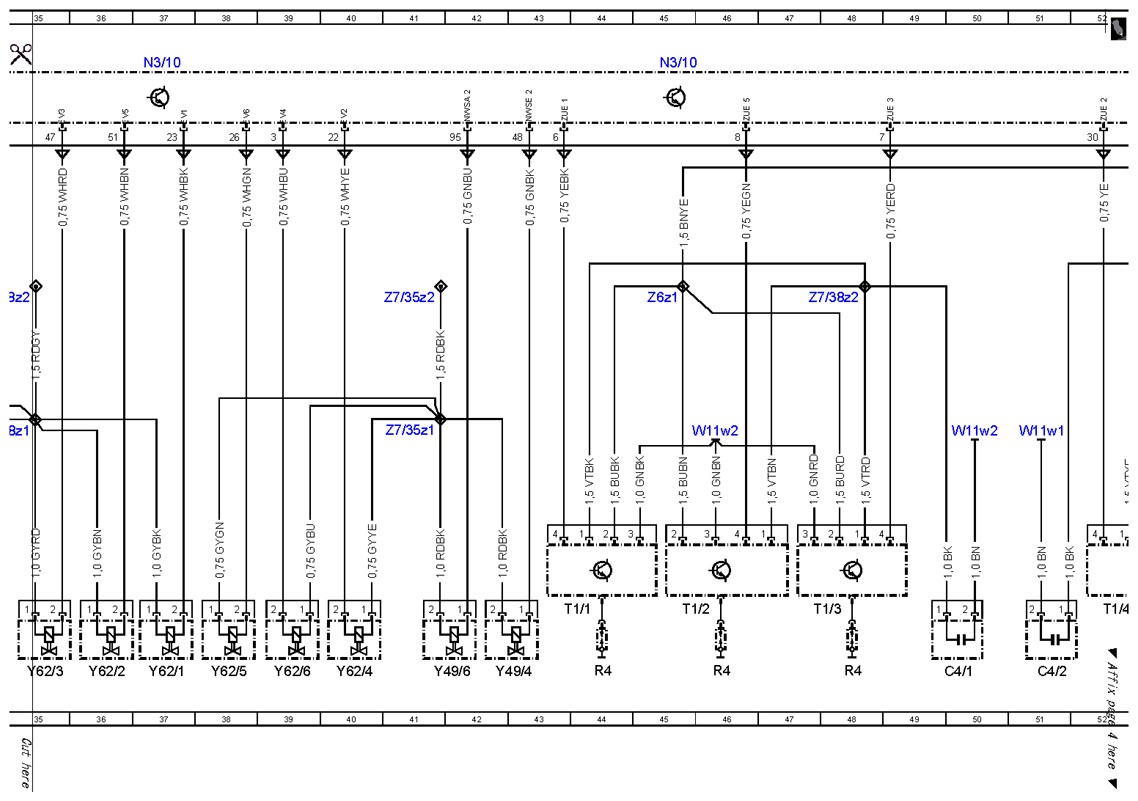

| Y62/1 |
Cylinder 1 injection valve |
37L |
| Y62/2 |
Cylinder 2 injection valve |
36L |
| Y62/3 |
Cylinder 3 injection valve |
35L |
| Y62/4 |
Cylinder 4 injection valve |
40L |
| Y62/5 |
Cylinder 5 injection valve |
38L |
| Y62/6 |
Cylinder 6 injection valve |
39L |
| Z5z2 |
Connector sleeve in wiring harness |
16G |
| Z6/26 |
Sensor voltage supply connector sleeve |
22G |
| Z6z1 |
Circuit 31 connector sleeve |
45E |
| Z6z2 |
Circuit 31 connector sleeve |
55E |
| Z6z2 |
Circuit 31 connector sleeve |
68E |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
41G |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
11G |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
41E |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
53E |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
69E |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
20L |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
24L |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
29G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
62G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
62E |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
70E |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
6G |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
34G |
| Z7/38z2 |
Circuit 87 M1i connector sleeve |
34E |
| Z7/38z2 |
Circuit 87 M1i connector sleeve |
48E |
| Z7/38z2 |
Circuit 87 M1i connector sleeve |
71E |
| Z7/43 |
Sensor ground connector sleeve |
8G |
| Z7/43 |
Sensor ground connector sleeve |
15G |
| Z7/44 |
Sensor ground connector sleeve |
10G |
| Z7/44 |
Sensor ground connector sleeve |
18G |
