Electrical function diagram for starter control - PE15.30-U-2051-99FAC

Code:	Designation:	Position:
1	Circuit 50, status	5 E
2	Shift stage, request	6 F
3	Starter circuit 50 relay, actuation	5 H
4	Starter, actuation	6 J
A8/1	Transmitter key	5 C
B11/4	Coolant temperature sensor	1 G
B70	Crankshaft Hall sensor	2 J
CAN C	Drive train CAN	6 F
CAN E	Chassis CAN	4 D
Code 427	7-speed automatic transmission	8 E
M1	Starter	7 J
N10/1	Front SAM control module with fuse and relay module	4 H
N10/1kM	Starter circuit 50 relay	4 H
N15/5	Electronic selector lever module control module	9 E
N3/10	ME-SFI [ME] control module	4 E
N73	Electronic ignition switch control unit	4 A

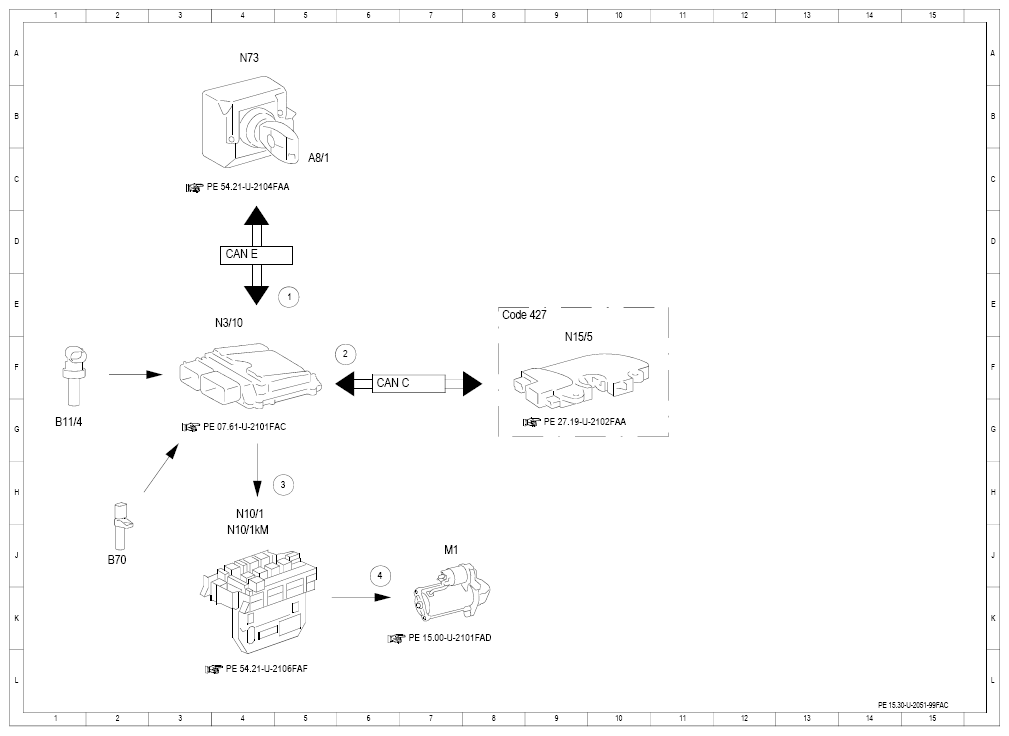

Fig 1: Starter Control Electrical Function Diagram

Courtesy of MERCEDES-BENZ USA
