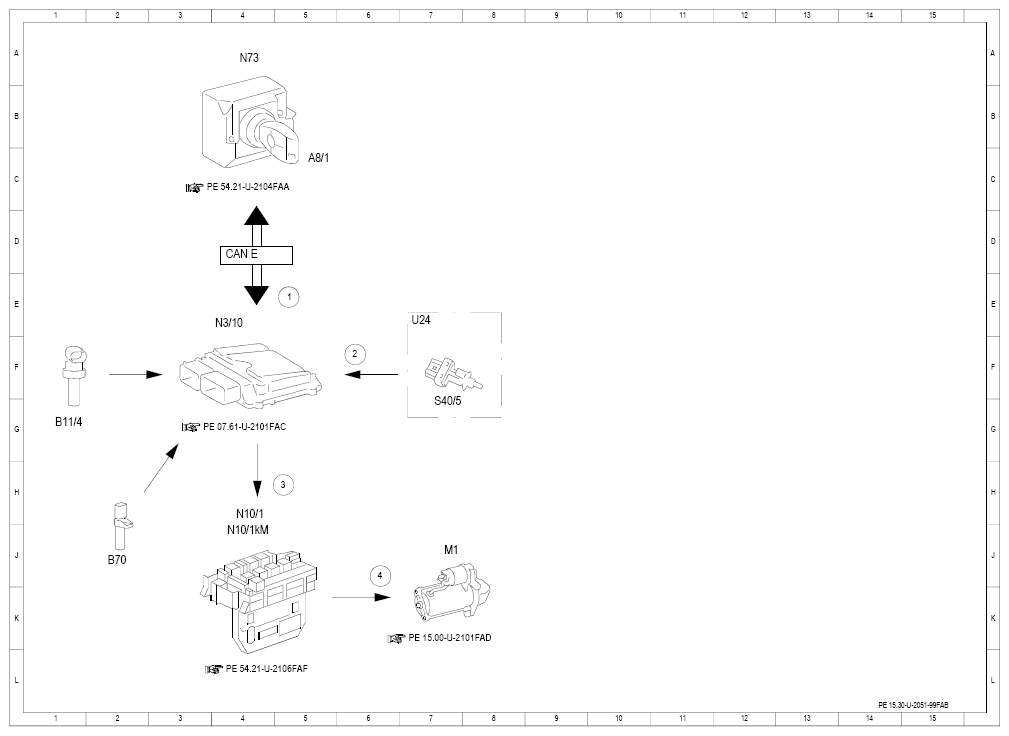

| 1 |
Circuit 50, status |
5 E |
| 2 |
Clutch pedal switch, status |
6 F |
| 3 |
Starter circuit 50 relay, actuation |
5 H |
| 4 |
Starter, actuation |
6 J |
| A8/1 |
Transmitter key |
5 C |
| B11/4 |
Coolant temperature sensor |
1 G |
| B70 |
Crankshaft Hall sensor |
2 J |
| CAN E |
Chassis CAN |
4 D |
| M1 |
Starter |
7 J |
| N10/1 |
Front SAM control module with fuse and relay module |
4 H |
| N10/1kM |
Starter circuit 50 relay |
4 H |
| N3/10 |
ME-SFI [ME] control module |
4 E |
| N73 |
Electronic ignition switch control unit |
4 A |
| S40/5 |
Start enable clutch pedal switch |
7 F |
| U24 |
Valid for manual transmission |
7 E |
