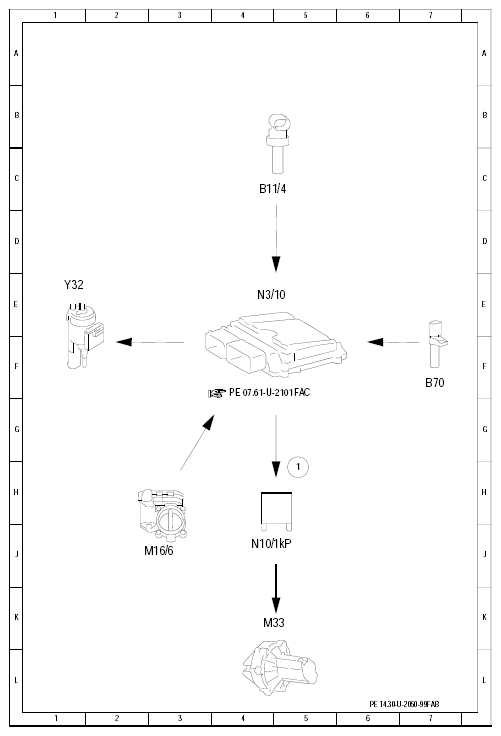

Electrical function diagram for secondary air injection - PE14.30-U-2050-99FAB
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Secondary air injection relay, actuation | 5 G |
| B11/4 | Coolant temperature sensor | 4 C |
| B70 | Crankshaft Hall sensor | 7 F |
| M16/6 | Throttle valve actuator | 3 J |
| M33 | AIR pump | 5 K |
| N10/1kP | Secondary air injection relay | 4 J |
| N3/10 | ME-SFI [ME] control module | 4 E |
| Y32 | Air pump switchover valve | 1 E |
