Component description for a variable intake manifold switchover valve - GF09.20-P-6001CY

ENGINE 272.911 in MODEL 204.0 up to Model Year 8

ENGINE 272.921 in MODEL 204.0/2 up to Model Year 8

ENGINE 272.947 in MODEL 204.0/2 up to Model Year 8

ENGINE 272.948 in MODEL 204.0 up to Model Year 8

ENGINE 272.961 in MODEL 204.0/2 up to Model Year 8

ENGINE 272.971 in MODEL 204.0 up to Model Year 8

Location

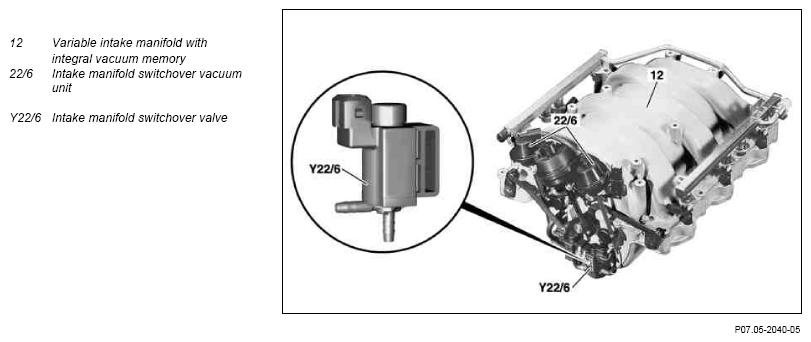

Fig 1: Identifying Variable Intake Manifold Switchover Valve Components

Courtesy of MERCEDES-BENZ USA

The switchover valve is mounted at the front of variable intake manifold.

Task

The switchover valve actuates the vacuum unit intake manifold switchover with vacuum from the vacuum reservoir to achieve intake manifold switchover.

Design

The switchover valve consists of a solenoid with a coil resistance of about 30 Ω, two valve plates, three air connections and a 2-pin connector.

Function

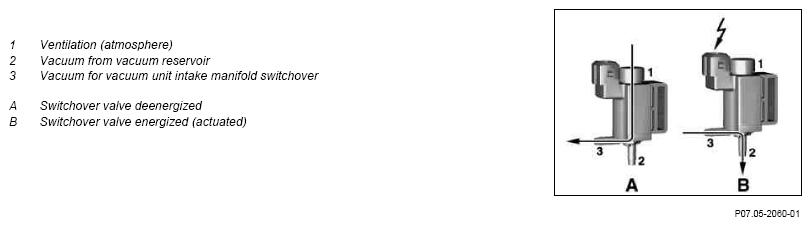

Fig 2: Identifying Variable Intake Manifold Switchover Valve Functions

Courtesy of MERCEDES-BENZ USA

The switchover valve is actuated for intake manifold switchover by the ME-SFI [ME] control unit (N3/10) by means of a ground signal. The voltage supply takes place from "circuit 87 M".

The valve plates actuated by the coil anchor switch between aeration (atmosphere) and supply of vacuum from the vacuum reservoir.

In an energized condition connection 1 is closed by a valve plate and vacuum from the vacuum reservoir is built up in both vacuum units for intake manifold switchover. The long intake route in the variable intake manifold is enabled.

In a deenergized condition, the connection between connection 1 and 3 is recreated, whereby the vacuum unit for intake manifold switchover (via connection 3) is aerated again. The short intake route in the variable intake manifold is enabled.
