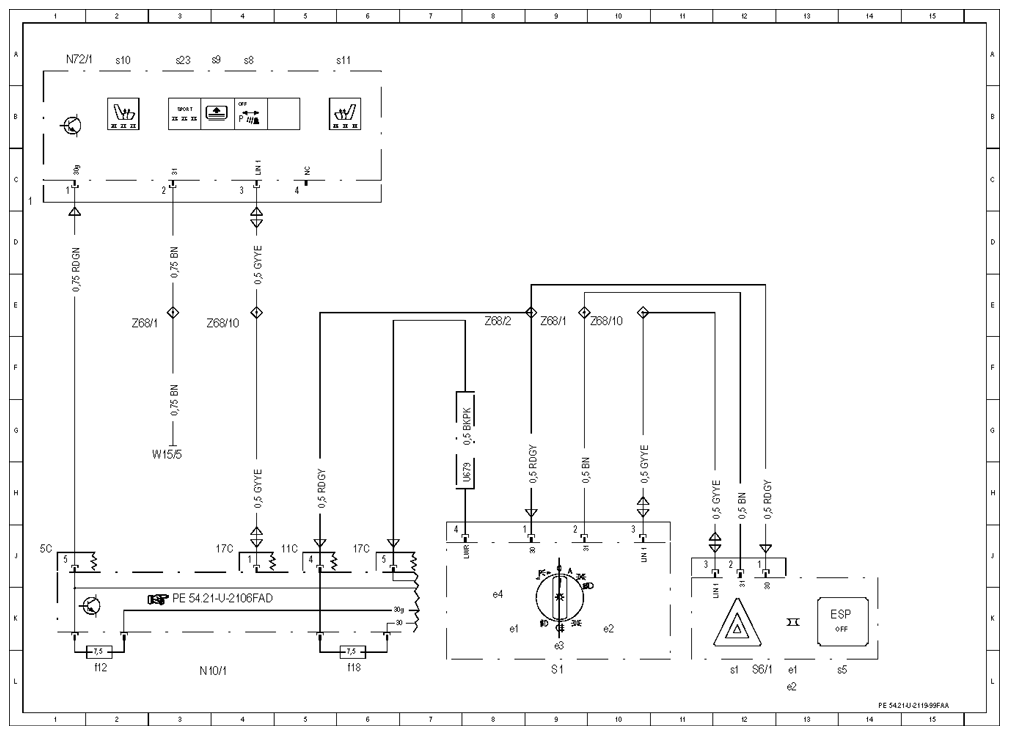

| LIN 1 |
Instrument panel LIN |
4 C |
| LIN 1 |
Instrument panel LIN |
11 J |
| LIN 1 |
Instrument panel LIN |
12 J |
| N10/1 |
Front SAM control module with fuse and relay module |
3 L |
| N10/1f12 |
Fuse 12 |
2 L |
| N10/1f18 |
Fuse 18 |
6 L |
| N72/1 |
Upper control panel control unit |
1 A |
| N72/1s10 |
Left front heated seat button |
2 A |
| N72/1s11 |
Right front heated seat button |
5 A |
| N72/1s23 |
Vehicle dynamics button |
3 A |
| N72/1s8 |
PARKTRONIC button |
4 A |
| N72/1s9 |
Rear window roller sun blind button |
3 A |
| S1 |
Exterior lights switch |
9 L |
| S1e1 |
Fog lamp indicator lamp |
8 K |
| S1e2 |
Rear fog lamp indicator lamp |
10 K |
| S1e3 |
Standing lamps indicator lamp |
9 K |
| S1e4 |
Switch illumination |
8 J |
| S6/1 |
Instrument panel switch group |
12 L |
| S6/1e1 |
Automatic child seat recognition warning lamp |
13 L |
| S6/1e2 |
Anti-theft alarm system indicator lamp |
13 L |
| S6/1s1 |
Hazard warning flasher switch |
12 L |
| S6/1s5 |
ESP button |
13 L |
| U679 |
Valid for version without xenon headlamps |
8 H |
| W15/5 |
Left front footwell ground point |
3 G |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
2 E |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
9 E |
| Z68/10 |
Instrument panel LIN connector sleeve |
4 E |
| Z68/10 |
Instrument panel LIN connector sleeve |
10 E |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
8 E |
