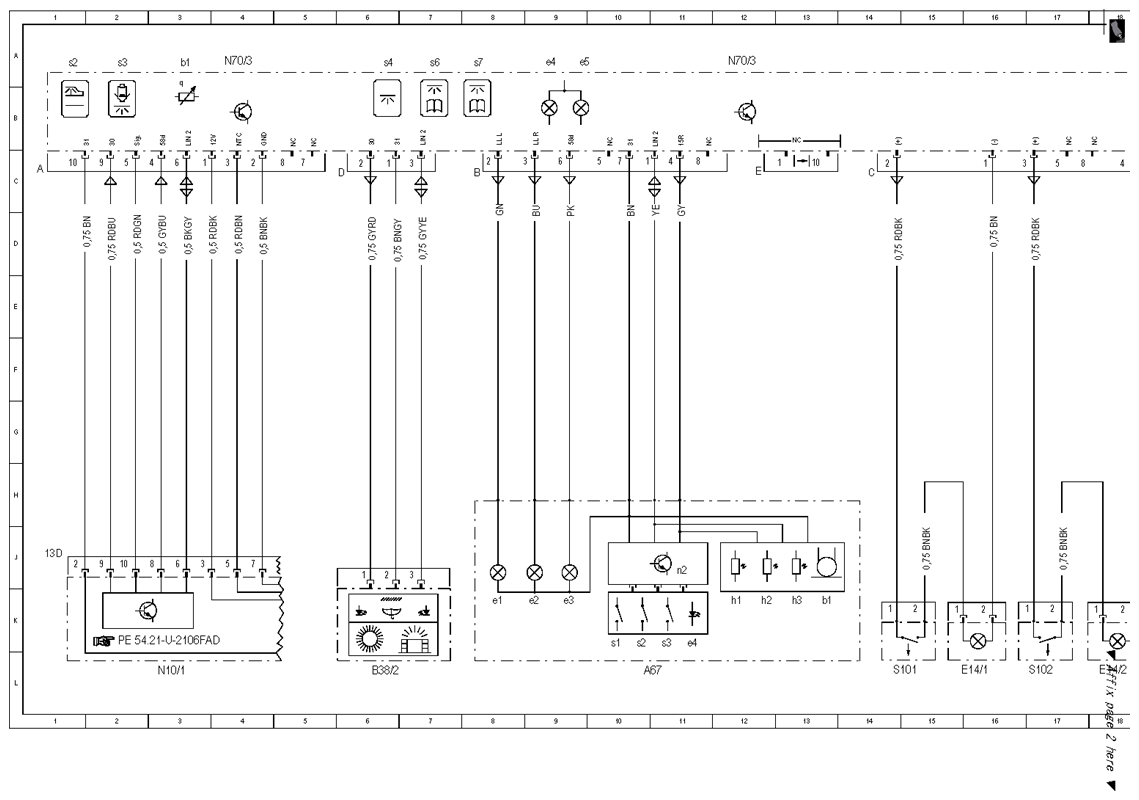

| A67 |
Inside rearview mirror |
11 L |
| A67b1 |
Hands-free system microphone |
13 J |
| A67e1 |
Left reading lamp |
8 J |
| A67e2 |
Right reading lamp |
9 J |
| A67e3 |
Ambient lamp |
9 J |
| A67e4 |
Garage door opener indicator lamp |
11 K |
| A67h1 |
Forward automatic dimming mirror light sensor |
12 J |
| A67h2 |
Rearward automatic dimming mirror light sensor |
12 J |
| A67h3 |
Automatic dimming mirror |
13 J |
| A67n2 |
Garage door opener |
11 J |
| A67s1 |
Garage door opener button 1 |
10 K |
| A67s2 |
Garage door opener button 2 |
10 K |
| A67s3 |
Garage door opener button 3 |
11 K |

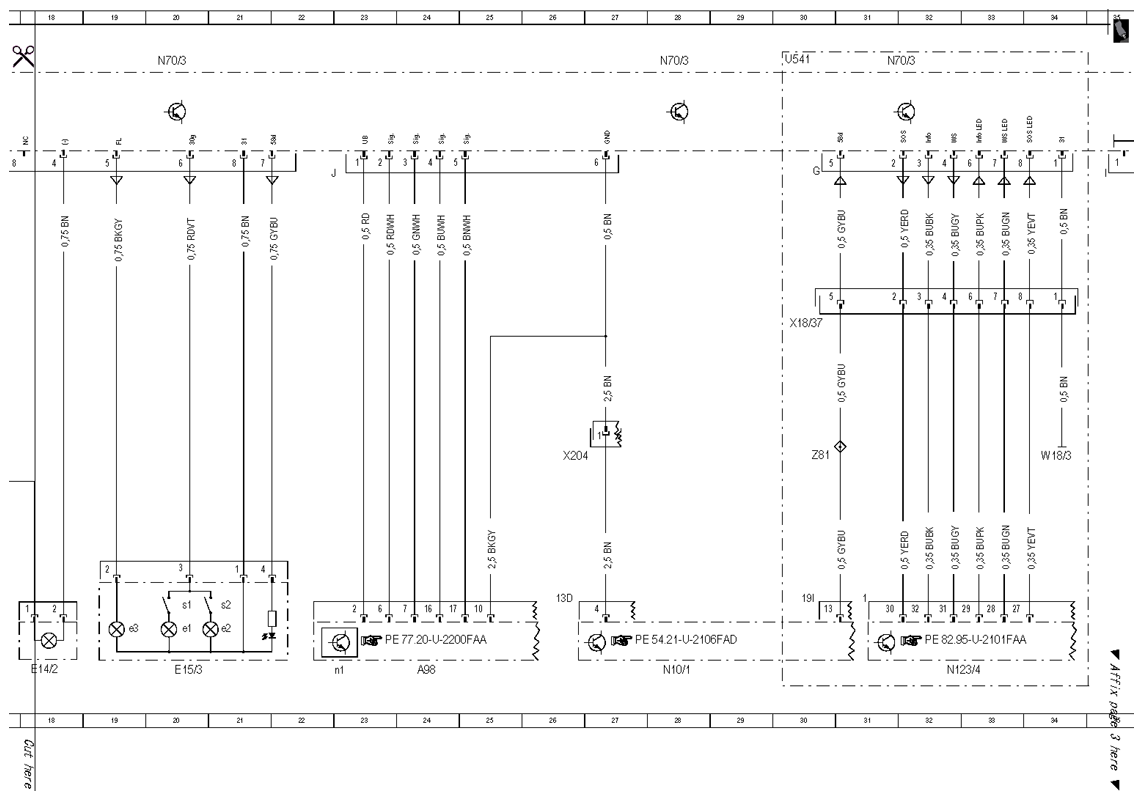

| A98 |
Panoramic sliding roof control module |
24 L |
| A98n1 |
Panoramic sliding roof control unit |
23 L |
| B38/2 |
Rain/light sensor |
6 L |
| E14/1 |
Left sun visor mirror lamp |
16 L |
| E14/2 |
Right sun visor mirror lamp |
18 L |
| E15/3 |
Rear dome lamp |
20 L |
| E15/3e1 |
Left rear reading lamp |
20 K |
| E15/3e2 |
Right rear reading lamp |
21 K |
| E15/3e3 |
Rear interior lamp |
19 K |
| E15/3s1 |
Left rear reading lamp switch |
20 K |
| E15/3s2 |
Right rear reading lamp switch |
21 K |
| LIN 2 |
Wiper/inside rearview mirror LIN |
3 B |
| LIN 2 |
Wiper/inside rearview mirror LIN |
7 B |
| LIN 2 |
Wiper/inside rearview mirror LIN |
11 B |
| N10/1 |
Front SAM control module with fuse and relay module |
3 L |
| N10/1 |
Front SAM control module with fuse and relay module |
28 L |
| N123/4 |
Emergency call system control unit |
32 L |

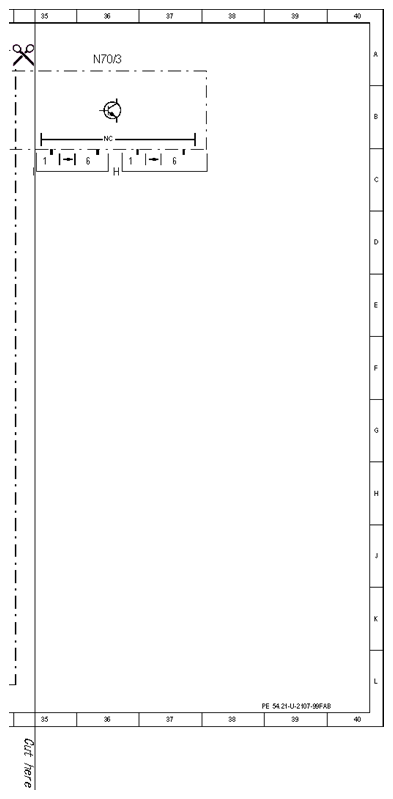

| N70/3 |
Overhead control panel electronics |
4 A |
| N70/3 |
Overhead control panel electronics |
12 A |
| N70/3 |
Overhead control panel electronics |
20 A |
| N70/3 |
Overhead control panel electronics |
28 A |
| N70/3 |
Overhead control panel electronics |
31 A |
| N70/3 |
Overhead control panel electronics |
36 A |
| N70/3b1 |
Interior temperature sensor |
3 A |
| N70/3e4 |
Left front interior lamp |
9 A |
| N70/3e5 |
Right front interior lamp |
9 A |
| N70/3s2 |
Rear dome lamp switch |
1 A |
| N70/3s3 |
Interior lamp automatic function switch |
2 A |
| N70/3s4 |
Front dome lamp switch |
6 A |
| N70/3s6 |
Left front reading lamp switch |
7 A |
| N70/3s7 |
Right front reading lamp switch |
8 A |
| S101 |
Left front mirror lamp switch |
15 L |
| S102 |
Right front mirror lamp switch |
17 L |
| U541 |
Valid for TELEAID emergency call system |
30 A |
| W18/3 |
Left front seat crossmember ground point 2 |
34 G |
| X18/37 |
Emergency call system button electrical connector |
30 E |
| X204 |
Panoramic sliding roof electrical connector |
26 G |
| Z81 |
Circuit 58d connector sleeve |
30 G |
