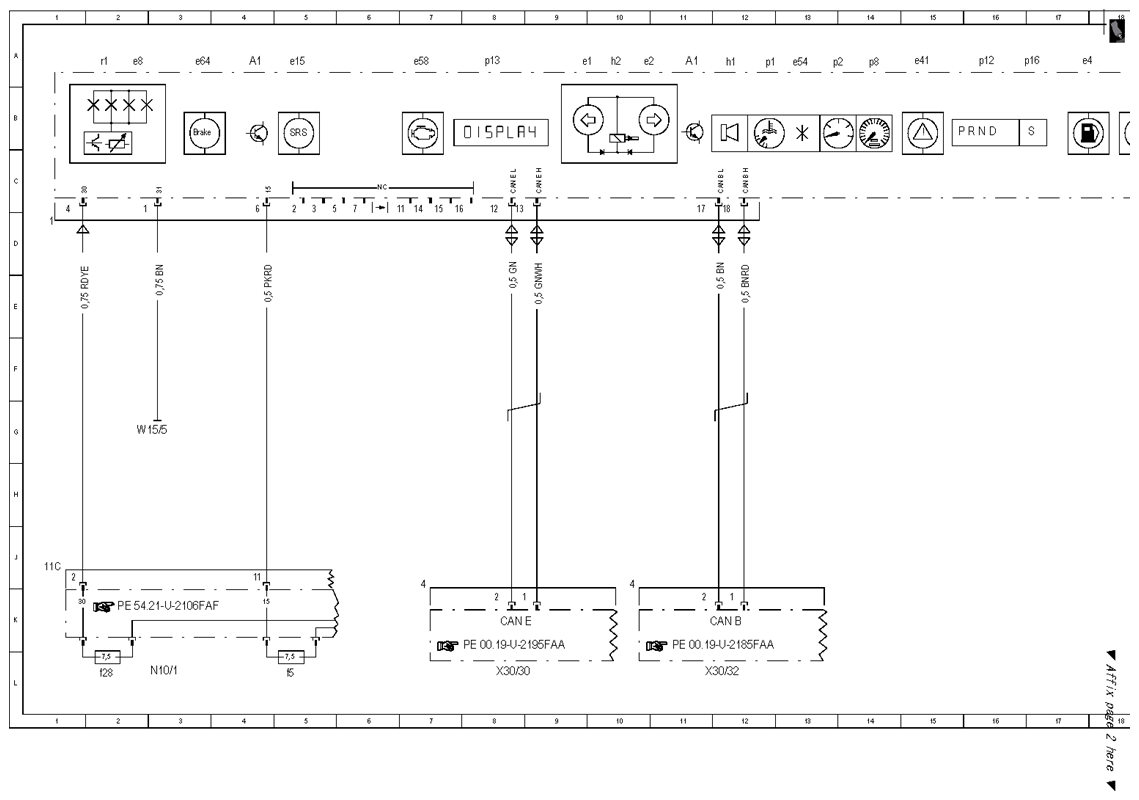

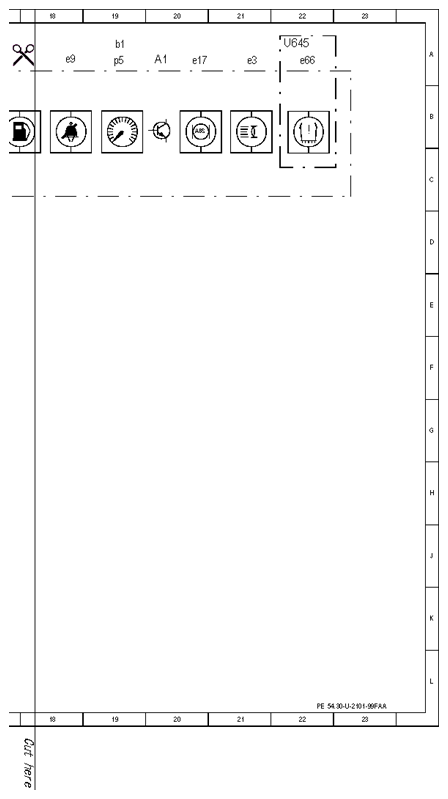

| A1 |
Instrument cluster |
4 A |
| A1 |
Instrument cluster |
11 A |
| A1 |
Instrument cluster |
20 A |
| A1b1 |
Brightness sensor |
19 A |
| A1e1 |
Left turn signal indicator light |
9 A |
| A1e15 |
Supplemental restraint system indicator lamp |
5 A |
| A1e17 |
Antilock brake system indicator lamp |
20 A |
| A1e2 |
Right turn signal indicator light |
10 A |
| A1e3 |
High beam indicator lamp |
21 A |
| A1e4 |
Fuel reserve indicator lamp |
17 A |
| A1e41 |
Electronic Stability Program warning lamp |
15 A |
| A1e54 |
Engine coolant temperature malfunction indicator |
13 A |
| A1e58 |
Engine diagnosis malfunction indicator lamp |
7 A |
| A1e64 |
Service brake indicator lamp |
3 A |
| A1e66 |
Tire pressure monitor warning lamp |
22 A |
| A1e8 |
Instrument illumination |
2 A |
| A1e9 |
Seat belt reminder lamp |
18 A |
| A1h1 |
Warning buzzer |
12 A |
| A1h2 |
Turn signal light function check, acoustic |
10 A |
| A1p1 |
Coolant temperature gage |
12 A |
| A1p12 |
Gear display |
16 A |
| A1p13 |
Multifunction display |
8 A |
| A1p16 |
Transmission mode display |
17 A |
| A1p2 |
Fuel level indicator |
13 A |
| A1p5 |
Tachometer |
19 A |
| A1p8 |
Speedometer |
14 A |
| A1r1 |
Instrument illumination brightness control |
2 A |
| CAN B |
Interior CAN |
12 K |
| CAN E |
Chassis CAN |
8 K |
| N10/1 |
Front SAM control module with fuse and relay module |
3 L |
| N10/1f28 |
Fuse 28 |
2 L |
| N10/1f5 |
Fuse 5 |
4 L |
| U645 |
Valid for tire pressure monitor |
22 A |
| W15/5 |
Left front footwell ground point |
2 G |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
8 L |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
12 L |
