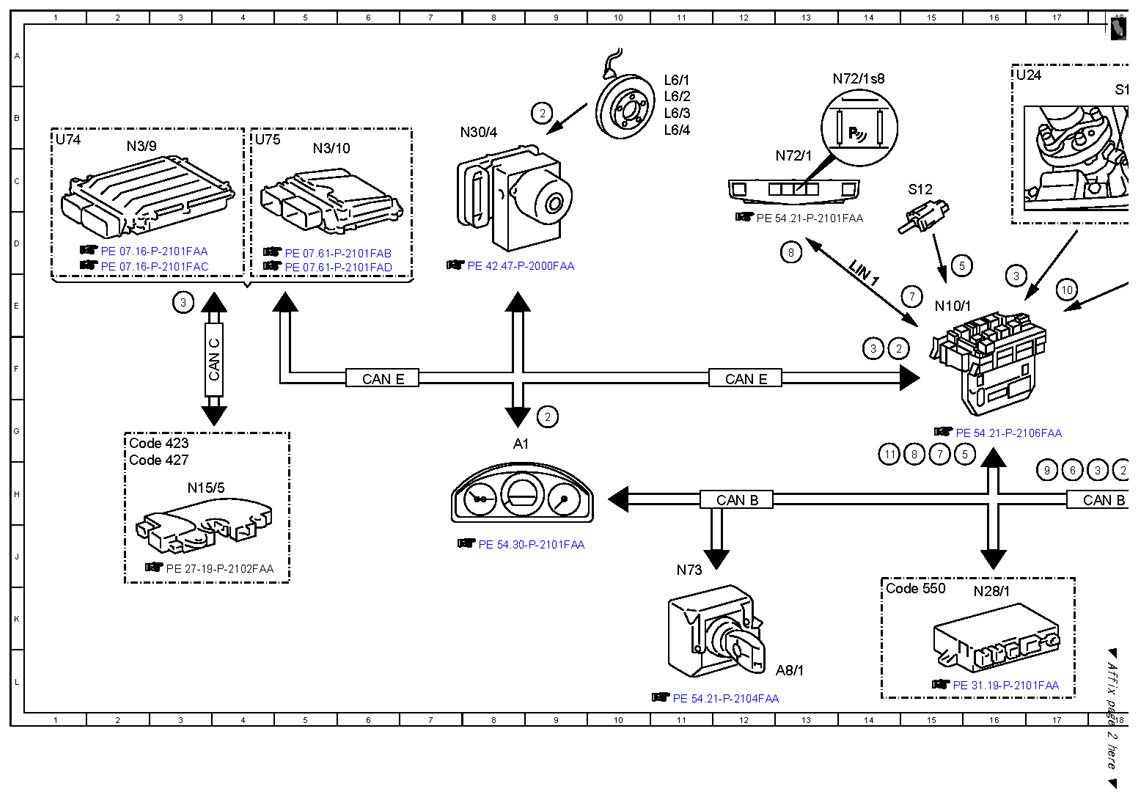

| 1 |
Circuit 15, status ON |
18H |
| 10 |
Ambient brightness, signal |
17E |
| 11 |
"Night", signal |
14G |
| 12 |
PARKTRONIC warning indicator, actuation |
20K |
| 12 |
PARKTRONIC warning indicator, actuation |
21K |
| 13 |
PARKTRONIC distance sensors, actuation |
25H |
| 13 |
PARKTRONIC distance sensors, actuation |
30H |
| 2 |
Wheel speed, signal |
9G |
| 2 |
Wheel speed, signal |
14F |
| 2 |
Wheel speed, signal |
9B |
| 2 |
Wheel speed, signal |
18H |
| 3 |
Reverse gear, status |
3E |
| 3 |
Reverse gear, status |
14F |
| 3 |
Reverse gear, status |
16E |
| 3 |
Reverse gear, status |
18H |
| 4 |
PARKTRONIC distance sensors, signal |
22H |
| 5 |
Parking brake indicator switch, status |
16G |
| 5 |
Parking brake indicator switch, status |
15D |
| 6 |
Vehicle speed, signal |
17H |
| 7 |
PARKTRONIC button, status |
15G |
| 7 |
PARKTRONIC button, status |
15E |
| 8 |
PARKTRONIC status indication, actuation |
15G |
| 8 |
PARKTRONIC status indication, actuation |
13D |
| 9 |
Trailer recognition, status |
17H |
| A1 |
Instrument cluster |
8G |
| A44/3 |
Rear Parktronic warning indicator |
20K |
| A44/4 |
Instrument panel PARKTRONIC warning indicator |
21K |
| A8/1 |
Transmitter key |
13L |
| B38/1 |
Light sensor |
24A |
| B38/2 |
Rain/light sensor |
24B |
| B8/1 |
Outer left front PARKTRONIC distance sensor |
26G |
| B8/10 |
Outer left rear PARKTRONIC distance sensor |
28G |
| B8/2 |
Center left front PARKTRONIC distance sensor |
26G |
| B8/3 |
Inner left front PARKTRONIC distance sensor |
25G |
| B8/4 |
Inner right front PARKTRONIC distance sensor |
24G |
| B8/5 |
Center right front PARKTRONIC distance sensor |
23G |
| B8/6 |
Outer right front PARKTRONIC distance sensor |
22G |
| B8/7 |
Outer right rear PARKTRONIC distance sensor |
31G |
| B8/8 |
Inner right rear PARKTRONIC distance sensor |
31G |
| B8/9 |
Inner left rear PARKTRONIC distance sensor |
29G |
| CAN B |
Interior CAN |
18H |
| CAN B |
Interior CAN |
12H |
| CAN C |
Drive train CAN |
4F |
| CAN E |
Chassis CAN |
6F |
| CAN E |
Chassis CAN |
12F |
| Code 345 |
Rain sensor |
23B |
| Code 423 |
5-speed automatic transmission |
3G |
| Code 427 |
7-speed automatic transmission |
3G |
| Code 550 |
Trailer hitch |
15J |
| L6/1 |
Left front axle rpm sensor |
11A |
| L6/2 |
Right front axle rpm sensor |
11B |
| L6/3 |
Left rear axle rpm sensor |
11B |
| L6/4 |
Right rear axle rpm sensor |
11B |
| LIN 1 |
Instrument panel LIN |
14D |
| LIN 2 |
Wiper/inside rearview mirror LIN |
20C |
| N10/1 |
Front SAM control unit with fuse and relay module |
15E |
| N15/5 |
Electronic selector lever module control unit |
3H |
| N28/1 |
Trailer recognition control unit |
16K |
| N3/10 |
ME-SFI [ME] control unit |
5C |
| N3/9 |
CDI control unit |
2C |
| N30/4 |
Electronic Stability Program control unit |
7B |
| N62 |

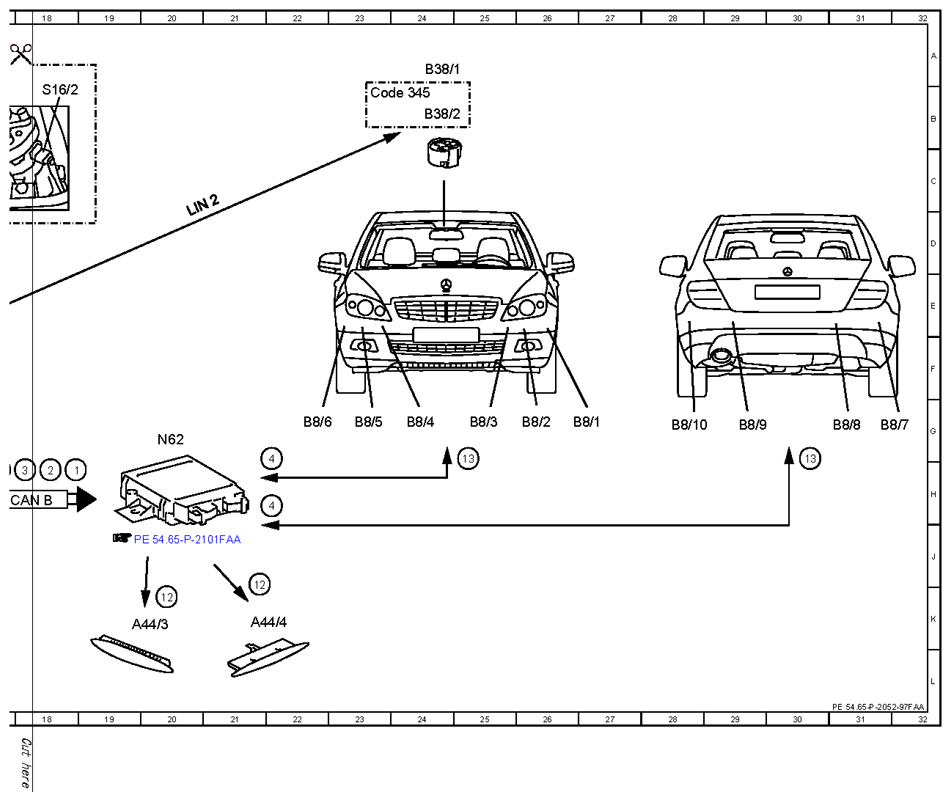

PARKTRONIC control unit |
20G |
| N72/1 |
Upper control panel control unit |
13C |
| N72/1s8 |
PARKTRONIC button |
13A |
| N73 |
Electronic ignition switch control unit |
11J |
| S12 |
Parking brake indicator switch |
15C |
| S16/2 |
Backup lamp switch |
18B |
| U24 |
Valid for manual transmission |
16A |
| U74 |
Valid for diesel engines |
1B |
| U75 |
Valid for gasoline engines |
4B |
