| 1 |
Parking system button, status |
21G |
| 1 |
Parking system button, status |
19B |
| 10 |
Parking system distance sensors, actuation |
25G |
| 10 |
Parking system distance sensors, actuation |
30G |
| 11 |
Parking system distance sensors, signal |
22G |
| 11 |
Parking system distance sensors, signal |
22G |
| 12 |
Vehicle speed, signal |
19G |
| 13 |
Reverse gear, status |
21F |
| 14 |
Parking brake indicator switch, status |
21B |
| 14 |
Parking brake indicator switch, status |
21F |
| 15 |
Parking space detection, signal |
4H |
| 16 |
Combination switch, status |
22H |
| 17 |
Steering angle, signal |
22H |
| 18 |
Display of steering information, request |
5H |
| 19 |
Gear range, status |
19H |
| 19 |
Gear range, status |
13L |
| 2 |
Parking system status indicator, actuation |
16B |
| 2 |
Parking system status indicator, actuation |
21D |
| 3 |
Rain/light sensor, status |
21F |
| 3 |
Rain/light sensor, status |
22B |
| 4 |
Wheel speed, signal |
2G |
| 4 |
Wheel speed, signal |
4C |
| 4 |
Wheel speed, signal |
20G |
| 5 |
Wheel rotation direction, signal |
5C |
| 5 |
Wheel rotation direction, signal |
20F |
| 5 |
Wheel rotation direction, signal |
2G |
| 6 |
Circuit 15, status |
19G |
| 7 |
Multifunction steering wheel button group, signal |
22H |
| 7 |
Multifunction steering wheel button group, signal |
30K |
| 7 |
Multifunction steering wheel button group, signal |
29L |
| 8 |
Backup lamp switch, status |
19C |
| 9 |
Parking system warning indicator, actuation |
21K |
| 9 |
Parking system warning indicator, actuation |
20K |

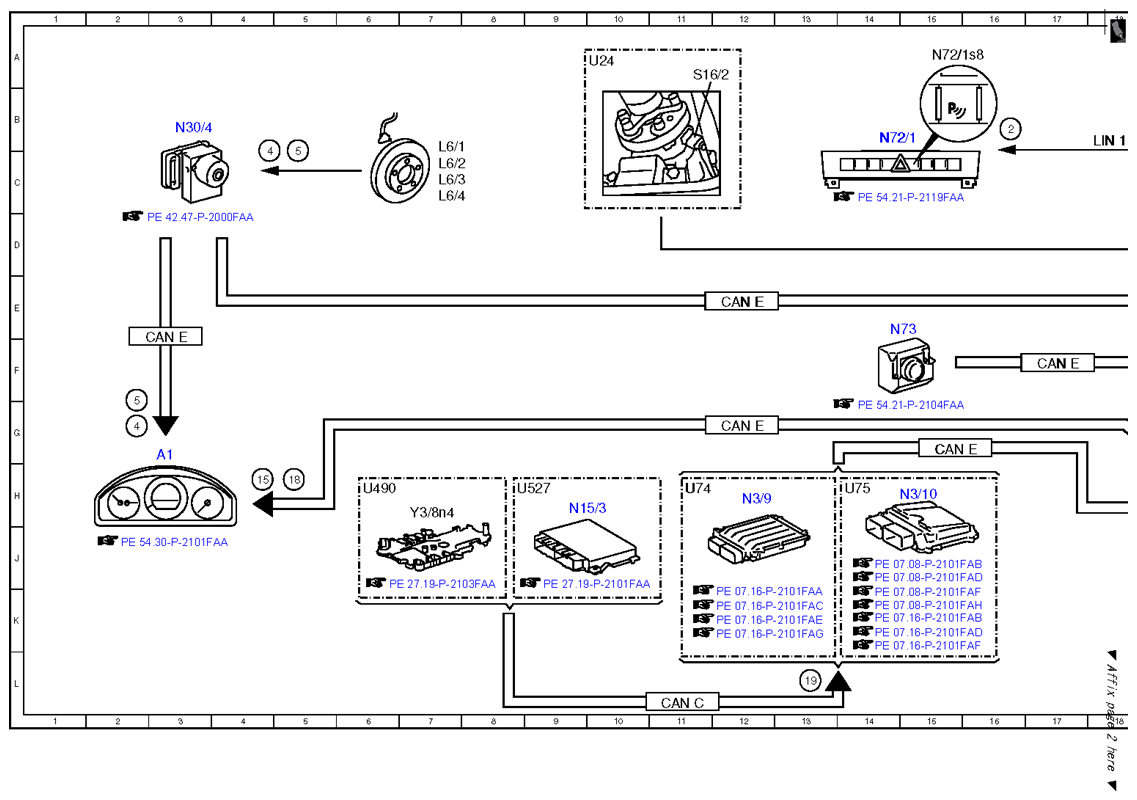

| A1 |
Instrument cluster |
3G |
| A44/3 |
Rear parking system warning indicator |
19L |
| A44/4 |
Instrument panel parking system warning indicator |
21L |
| B38/1 |
Light sensor |
24B |
| B38/2 |
Rain/light sensor |
24B |
| B8/1 |
Outer left front parking system distance sensor |
26F |
| B8/10 |
Outer left rear parking system distance sensor |
28F |
| B8/2 |
Center left front parking system distance sensor |
25F |
| B8/3 |
Inner left front parking system distance sensor |
25F |
| B8/4 |
Inner right front parking system distance sensor |
24F |
| B8/5 |
Center right front parking system distance sensor |
23F |
| B8/6 |
Outer right front parking system distance sensor |
22F |
| B8/7 |
Outer right rear parking system distance sensor |
31F |
| B8/8 |
Inner right rear parking system distance sensor |
30F |
| B8/9 |
Inner left rear parking system distance sensor |
29F |
| CAN C |
Drive train CAN |
11L |
| CAN E |
Chassis CAN |
12E |
| CAN E |
Chassis CAN |
3F |
| CAN E |
Chassis CAN |
12G |
| CAN E |
Chassis CAN |
15G |
| CAN E |
Chassis CAN |
21E |
| CAN E |
Chassis CAN |
25J |
| CAN E |
Chassis CAN |
17F |
| L6/1 |
Left front axle rpm sensor |
7C |
| L6/2 |
Right front axle rpm sensor |
7C |
| L6/3 |
Left rear axle rpm sensor |
7C |
| L6/4 |
Right rear axle rpm sensor |
7C |
| LIN 1 |
Instrument panel LIN |
18B |
| LIN 2 |
Wiper/inside rearview mirror LIN |
23B |
| LIN E1 |
Steering LIN |
31K |
| LIN E1 |
Steering LIN |
28L |
| N10/1 |
Front SAM control unit with fuse and relay module |
20C |
| N135 |
Steering wheel electronics |
30L |
| N15/3 |
Electronic transmission control control unit |
9H |
| N3/10 |
ME-SFI [ME] control unit |
15H |
| N3/9 |
CDI control unit |
12H |
| N30/4 |
Electronic Stability Program control unit |
3B |
| N49 |
Steering angle sensor |
31H |

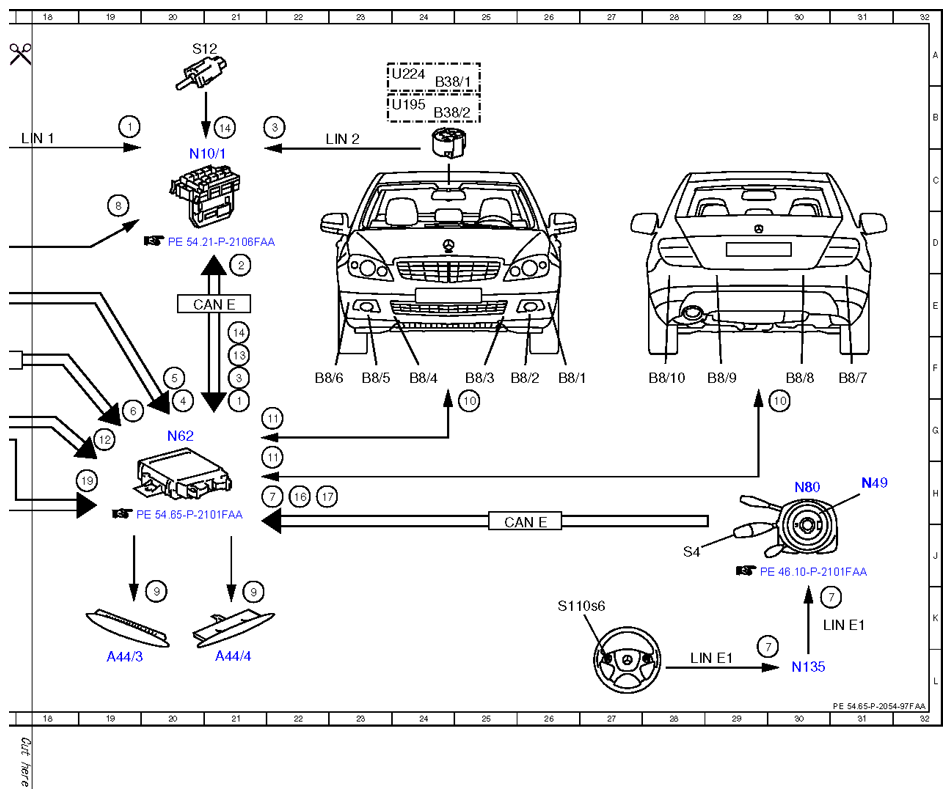

| N62 |
Parking system control unit |
20G |
| N72/1 |
Upper control panel control unit |
14B |
| N72/1s8 |
Parking system button |
15A |
| N73 |
Electronic ignition switch control unit |
14E |
| N80 |
Steering column module control unit |
30H |
| S110s6 |
OK button |
26K |
| S12 |
Parking brake indicator switch |
20A |
| S16/2 |
Backup lamp switch |
11A |
| S4 |
Combination switch |
28J |
| U195 |
Valid for rain/light sensor |
23B |
| U224 |
Valid without rain sensor |
23A |
| U24 |
Valid for manual transmission |
10A |
| U490 |
Valid for 7-speed automatic transmission |
6H |
| U527 |
Valid for electronic transmission control |
8H |
| U74 |
Valid for diesel engines |
11H |
| U75 |
Valid for gasoline engines |
14H |
| Y3/8n4 |
Fully integrated transmission control control unit |
7H |
