| 1 |
Outside temperature sensor, signal |
23E |
| 2 |
Outside temperature, signal |
13G |
| 3 |
Wheel speed, signal |
12E |
| 3 |
Wheel speed, signal |
9B |
| 4 |
Coolant temperature sensor, signal |
2F |
| 5 |
Coolant temperature, signal |
10G |
| 6 |
Circuit 15, status |
12H |
| 7 |
Multifunction steering wheel button group, signal |
7K |
| 7 |
Multifunction steering wheel button group, signal |
11H |
| 7 |
Multifunction steering wheel button group, signal |
4K |
| 8 |
Time synchronization, signal |
13F |
| 8 |
Time synchronization, signal |
17E |
| 9 |
Gearshift recommendation, signal |
9G |

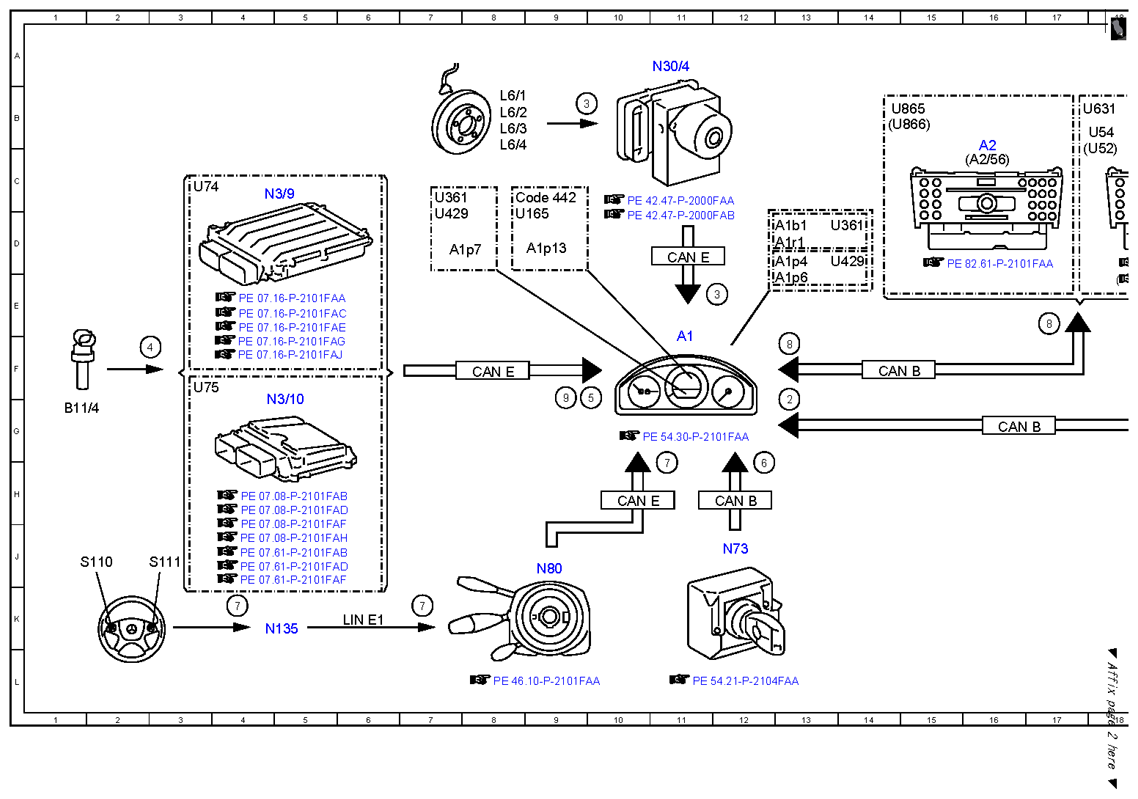

| A1 |
Instrument cluster |
11F |
| A1b1 |
Brightness sensor |
13D |
| A1p13 |
Multifunction display |
9D |
| A1p4 |
Outside temperature indicator |
13D |
| A1p6 |
Digital clock |
13E |
| A1p7 |
Travel distance display |
7D |
| A1r1 |
Instrument illumination brightness control |
13D |
| A2 |
Radio |
16C |
| A2/56 |
Radio with auto pilot system |
16C |
| A40/3 |
COMAND control unit |
19C |
| B11/4 |
Coolant temperature sensor |
1G |

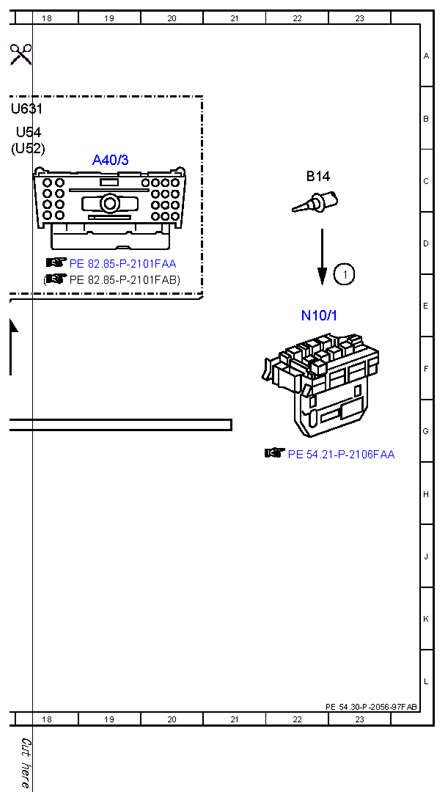

| B14 |
Outside temperature sensor |
22C |
| CAN B |
Interior CAN |
12H |
| CAN B |
Interior CAN |
14F |
| CAN B |
Interior CAN |
16G |
| CAN E |
Chassis CAN |
8F |
| CAN E |
Chassis CAN |
10H |
| CAN E |
Chassis CAN |
11D |
| Code 442 |
Comfort multifunction steering wheel |
8C |
| L6/1 |
Left front axle rpm sensor |
8B |
| L6/2 |
Right front axle rpm sensor |
8B |
| L6/3 |
Left rear axle rpm sensor |
8B |
| L6/4 |
Right rear axle rpm sensor |
8C |
| LIN E1 |
Steering LIN |
6K |
| N10/1 |
Front SAM control unit with fuse and relay module |
22E |
| N135 |
Steering wheel electronics |
4K |
| N3/10 |
ME-SFI [ME] control unit |
4G |
| N3/9 |
CDI control unit |
4C |
| N30/4 |
Electronic Stability Program control unit |
11A |
| N73 |
Electronic ignition switch control unit |
12J |
| N80 |
Steering column module control unit |
9J |
| S110 |
Left multifunction steering wheel button group |
1J |
| S111 |
Right multifunction steering wheel button group |
2J |
| U165 |
Valid for AMG |
8D |
| U361 |
Not valid for comfort multifunction steering wheel |
7C |
| U361 |
Not valid for comfort multifunction steering wheel |
13D |
| U429 |
Valid for all except AMG |
7D |
| U429 |
Valid for all except AMG |
13D |
| U52 |
Valid for Japan |
17C |
| U54 |
Valid for all except Japan |
18B |
| U631 |
Valid for COMAND |
17B |
| U74 |
Valid for diesel engines |
3C |
| U75 |
Valid for gasoline engines |
3F |
| U865 |
Valid for Audio 20 |
14B |
| U866 |
Valid for Audio 50 |
14B |
