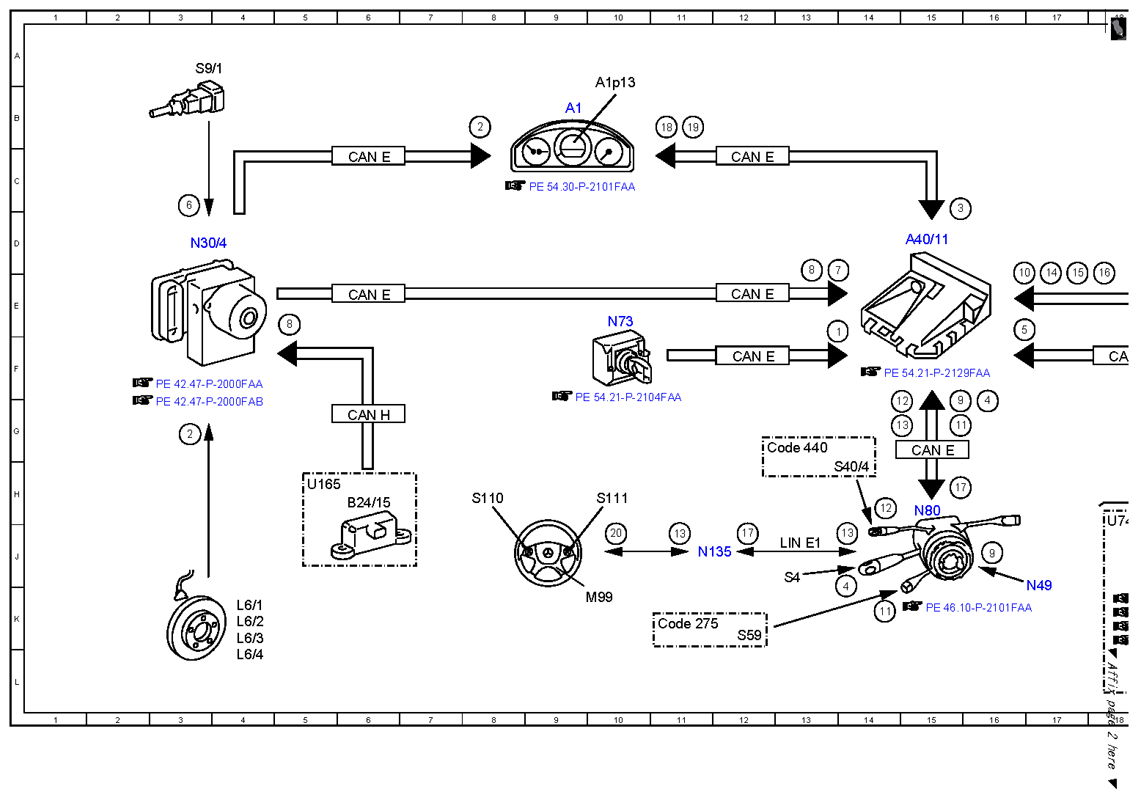

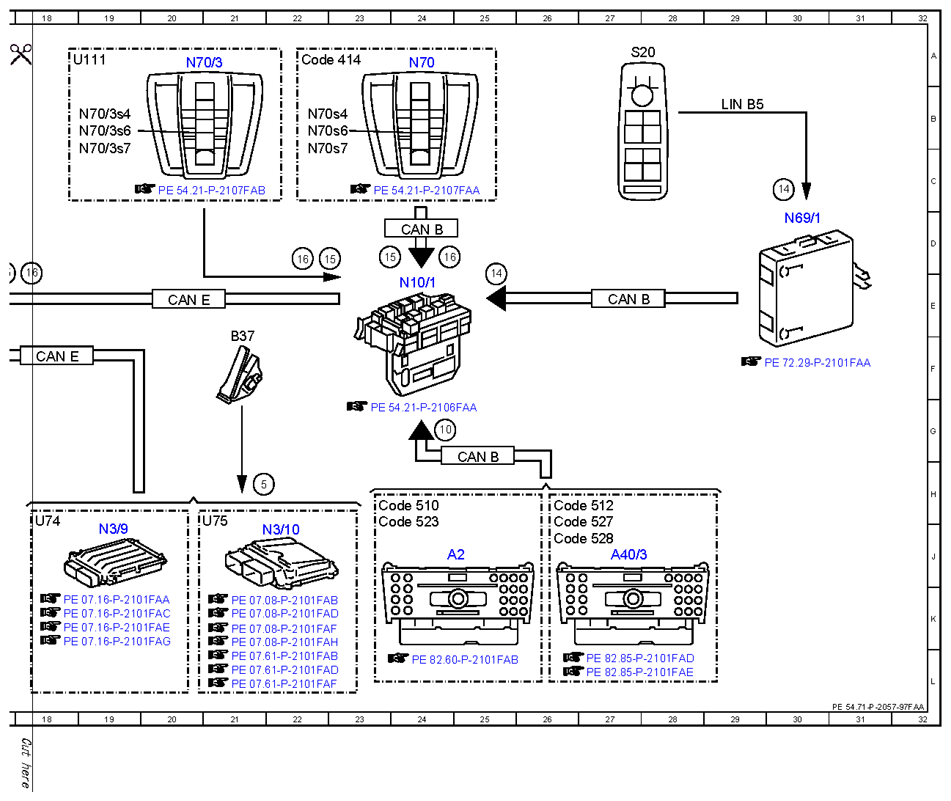

| 1 |
Circuit 15, status |
13E |
| 10 |
Audio operation, status |
16D |
| 10 |
Audio operation, status |
24G |
| 11 |
Steering column adjustment switch, status |
14K |
| 11 |
Steering column adjustment switch, status |
15G |
| 12 |
CRUISE CONTROL lever, signal |
14G |
| 12 |
CRUISE CONTROL lever, signal |
14H |
| 13 |
Multifunction steering wheel button group, signal |
11J |
| 13 |
Multifunction steering wheel button group, signal |
14G |
| 13 |
Multifunction steering wheel button group, signal |
15G |
| 14 |
Driver-side switch group, status |
17D |
| 14 |
Driver-side switch group, status |
25E |
| 14 |
Driver-side switch group, status |
30C |
| 15 |
Dome lamp switch, status |
23D |
| 15 |
Dome lamp switch, status |
22D |
| 15 |
Dome lamp switch, status |
17D |
| 16 |
Reading lamp switch, status |
24D |
| 16 |
Reading lamp switch, status |
22D |
| 16 |
Reading lamp switch, status |
18D |
| 17 |
Steering wheel vibration motor, request |
15H |
| 17 |
Steering wheel vibration motor, request |
12G |
| 18 |
Automatic lane detection, status |
11B |
| 19 |
Warning message issue, request |
11B |
| 2 |
Wheel speed, signal |
8B |
| 2 |
Wheel speed, signal |
3G |
| 20 |
Steering wheel vibration motor, actuation |
10J |
| 3 |
Vehicle speed, signal |
15D |
| 4 |
Combination switch, status |
14K |
| 4 |
Combination switch, status |
16G |
| 5 |
Accelerator pedal sensor, signal |
16E |
| 5 |
Accelerator pedal sensor, signal |
21H |
| 6 |
Brake light switch, status |
3C |
| 7 |
Service brake, status |
13D |
| 8 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
5E |
| 8 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
13D |
| 9 |
Steering angle sensor, signal |
16J |
| 9 |
Steering angle sensor, signal |
15G |
| A1 |
Instrument cluster |
9B |
| A1p13 |
Multifunction display |
10B |
| A2 |
Radio |
24J |
| A40/11 |
Multifunction camera |
15D |
| A40/3 |
COMAND control unit |
27J |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
6H |
| B37 |
Accelerator pedal sensor |
21F |
| CAN B |
Interior CAN |
27E |
| CAN B |
Interior CAN |
24D |
| CAN B |
Interior CAN |
25G |
| CAN E |
Chassis CAN |
20E |
| CAN E |
Chassis CAN |
6E |
| CAN E |
Chassis CAN |
18F |
| CAN E |
Chassis CAN |
15G |
| CAN E |
Chassis CAN |
12C |
| CAN E |
Chassis CAN |
6C |
| CAN E |
Chassis CAN |
12F |
| CAN E |
Chassis CAN |
12E |
| CAN H |
Vehicle dynamics CAN |
6G |
| Code 275 |
Memory function (driver seat, steering column, outside mirror) |
11K |
| Code 414 |
Electric glass tilting/sliding roof |
22A |
| Code 440 |
Cruise control |
12G |
| Code 510 |
Audio 20 with CD changer |
23H |
| Code 512 |
COMAND APS with DVD changer |
26H |
| Code 523 |
Audio 20 radio |
23J |
| Code 527 |
COMAND APS |
26J |
| Code 528 |
COMAND with DVD changer |
26J |
| L6/1 |
Left front axle rpm sensor |
4K |
| L6/2 |
Right front axle rpm sensor |
4K |
| L6/3 |
Left rear axle rpm sensor |
4K |
| L6/4 |
Right rear axle rpm sensor |
4L |
| LIN B5 |
Left door LIN |
29B |
| LIN E1 |
Steering LIN |
13J |
| M99 |
Steering wheel vibration motor |
9K |
| N10/1 |
Front SAM control unit with fuse and relay module |
24E |
| N135 |
Steering wheel electronics |
11J |
| N3/10 |
ME-SFI [ME] control unit |
22J |
| N3/9 |
CDI control unit |
19J |
| N30/4 |
Electronic Stability Program control unit |
3D |
| N49 |
Steering angle sensor |
17K |
| N69/1 |
Left front door control unit |
30D |
| N70 |
Overhead control panel control unit |
24A |
| N70/3 |
Overhead control panel electronics |
20A |
| N70/3s4 |
Front dome lamp switch |
19B |
| N70/3s6 |
Left front reading lamp switch |
19B |
| N70/3s7 |
Right front reading lamp switch |
19C |
| N70s4 |
Front dome lamp switch |
22B |
| N70s6 |
Left front reading lamp switch |
22B |
| N70s7 |
Right front reading lamp switch |
22C |
| N73 |
Electronic ignition switch control unit |
10E |
| N80 |
Steering column module control unit |
15H |
| S110 |
Left multifunction steering wheel button group |
8H |
| S111 |
Right multifunction steering wheel button group |
10H |
| S20 |
Driver-side power window and outside mirror adjustment switch group |
27A |
| S4 |
Combination switch |
13J |
| S40/4 |
Cruise control lever |
14H |
| S59 |
Steering column adjustment switch |
12K |
| S9/1 |
Stop lamp switch |
3A |
| U111 |
Valid for overhead control panel without CAN |
18A |
| U165 |
Valid for AMG |
5H |
| U74 |
Valid for diesel engines |
18J |
| U75 |
Valid for gasoline engines |
20J |
